2014 Tahoe ppv. Need help trying to install a viper alarm/remote start

[2014brohoeppv]

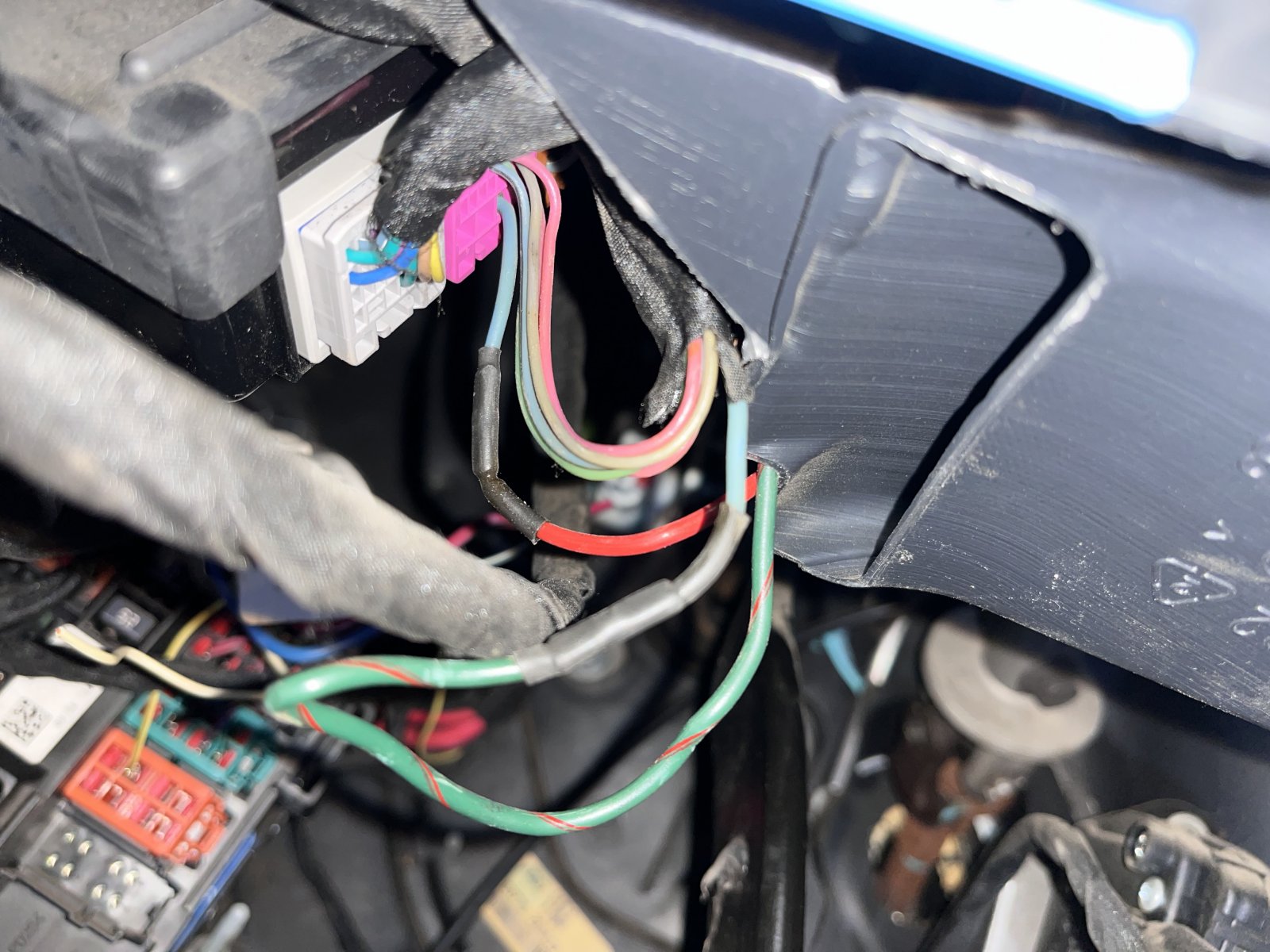

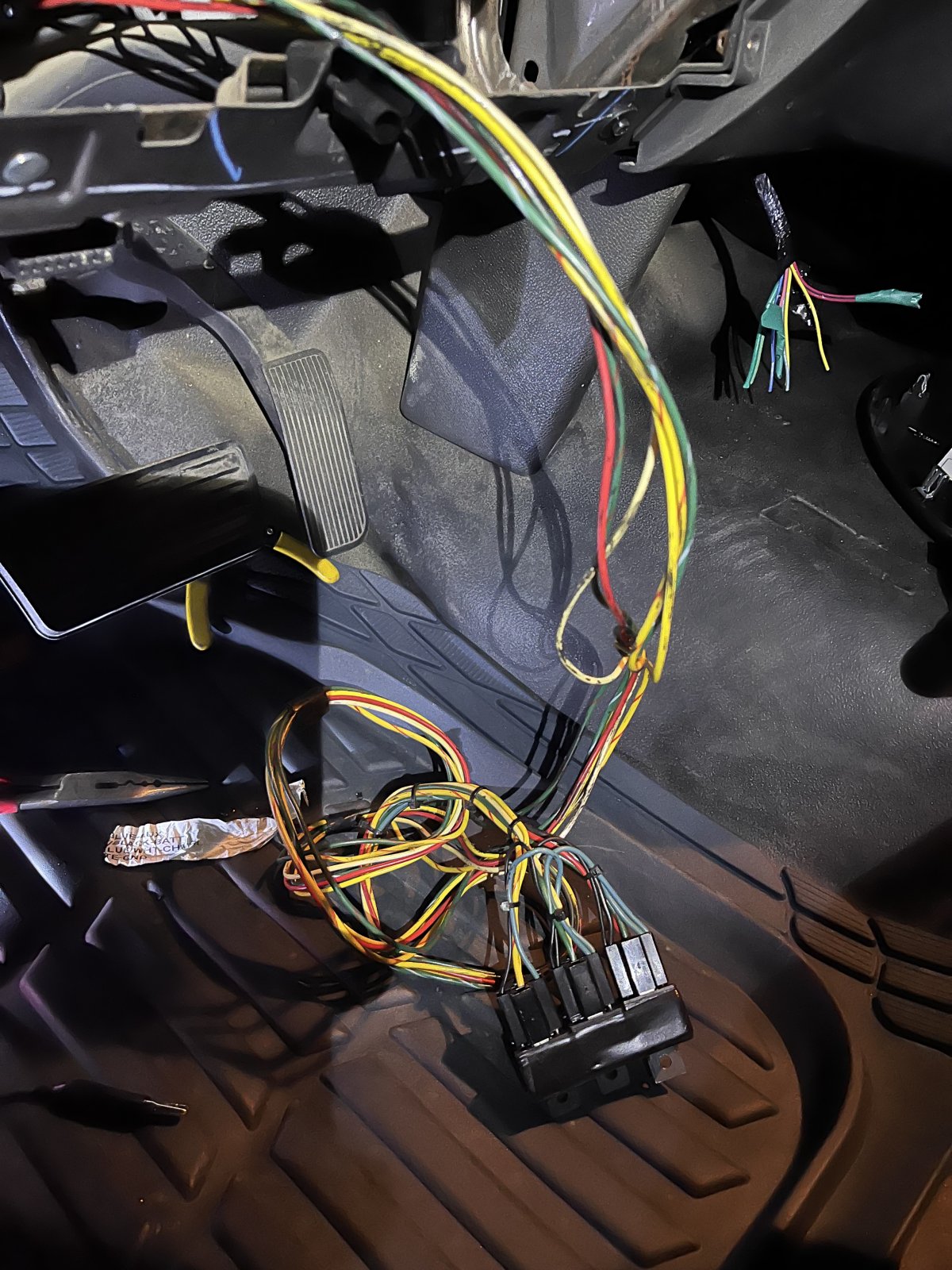

Found a set of relays connected to wires from the bcm and I’m wondering what they are for or if anybody is familiar with it. Also can’t seem to find wiring diagram so I can install the 5706v viper alarm.



[Doubeleive]

Found a set of relays connected to wires from the bcm and I’m wondering what they are for or if anybody is familiar with it. Also can’t seem to find wiring diagram so I can install the 5706v viper alarm.

Light Duty 2014 - GM Upfitter

www.gmupfitter.com



[RichardCranium]

Those relays/wires aren't going to be familiar to anyone, unfortunately. I imagine the output wires for each relay will no longer be physically connected to anything on the other end of the wire. But you can test for switched/adequate voltage, and use them for something else down the road if you wanted (additional lighting, accessories, etc).



[Doubeleive]

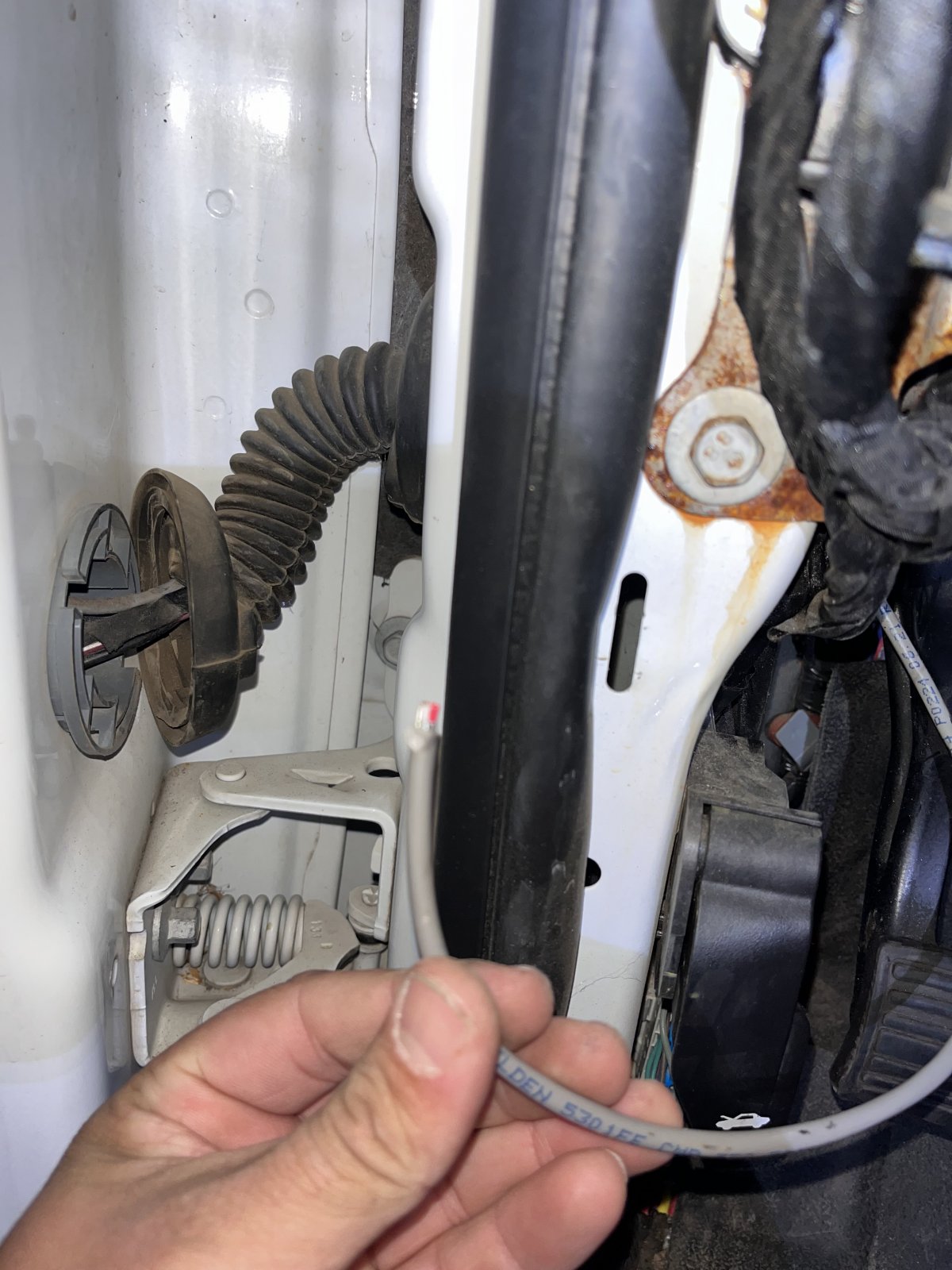

and those cat wire's can be just pulled out they are not vehicle system wires (the non-stranded wires in the grey shielding)



[2014brohoeppv]

Those relays/wires aren't going to be familiar to anyone, unfortunately. I imagine the output wires for each relay will no longer be physically connected to anything on the other end of the wire. But you can test for switched/adequate voltage, and use them for something else down the road if you wanted (additional lighting, accessories, etc).

I’ll trace them tomorrow and see where they go. I was thinking of removing the relays and returning the wires back to stock. Helps declutter under the dash and like you said I can use them down the road for something else



[2014brohoeppv]

and those cat wire's can be just pulled out they are not vehicle system wires (the non-stranded wires in the grey shielding)

For sure thank you. My window rattles alot when I put it all the way down so I’ll probably end up removing the panel to fix it and I’ll remove those wires while I’m at it.
