7 pin connector trailer plug

[Dimbagbubba]

Looking for 7 pin wiring diagram that doesn't have a white wire as the ground. My 2003 tahoe factory 7 pin trailer plug doesn't have a white wire.



[wjburken]

Looking for 7 pin wiring diagram that doesn't have a white wire as the ground. My 2003 tahoe factory 7 pin trailer plug doesn't have a white wire.

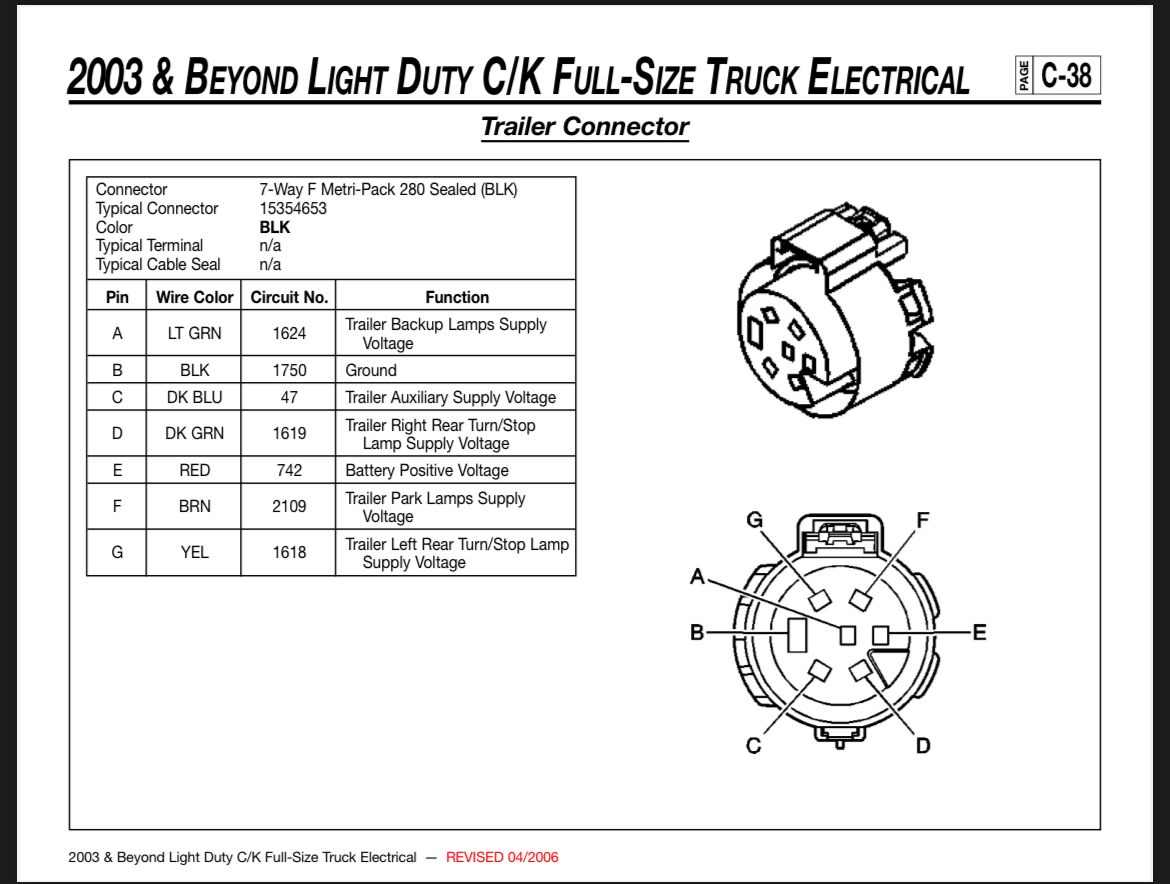

https://www.gmupfitter.com/wp-content/uploads/2021/05/2005_LD_CKFullSizeElectrical.pdf

Is this what you’re looking for?



[Dimbagbubba]

https://www.gmupfitter.com/wp-content/uploads/2021/05/2005_LD_CKFullSizeElectrical.pdf

View attachment 444848
Is this what you’re looking for?

Idk yet but its a helluvalot closer than anything I've seen on the interwebs in the last 4 hours. Thanks. I believe it'll do the trick. First thing I've seen where a white wire isn't the ground.



[Dimbagbubba]

Idk yet but its a helluvalot closer than anything I've seen on the interwebs in the last 4 hours. Thanks. I believe it'll do the trick. First thing I've seen where a white wire isn't the ground.

Ima try it when the sun and temp rises a lil bit



[Fless]

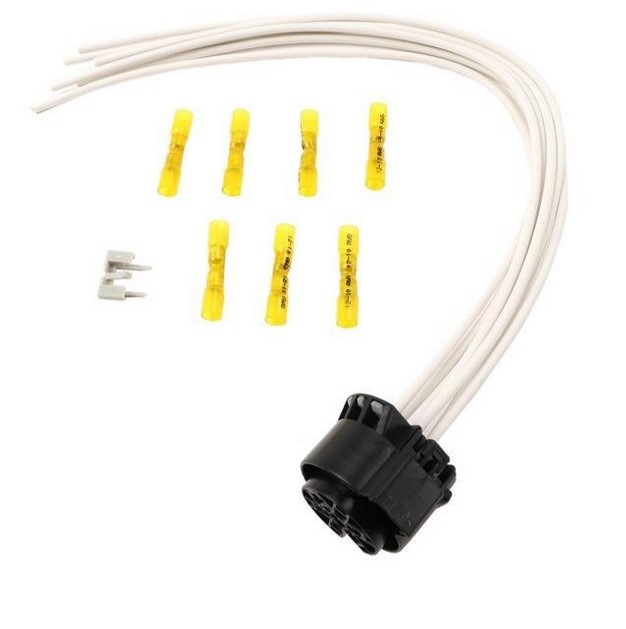

That diagram appears to be the harness connector that will attach to the back of the actual 7-blade connector that's on the hitch.

EDIT: from Rock Auto



[Dimbagbubba]

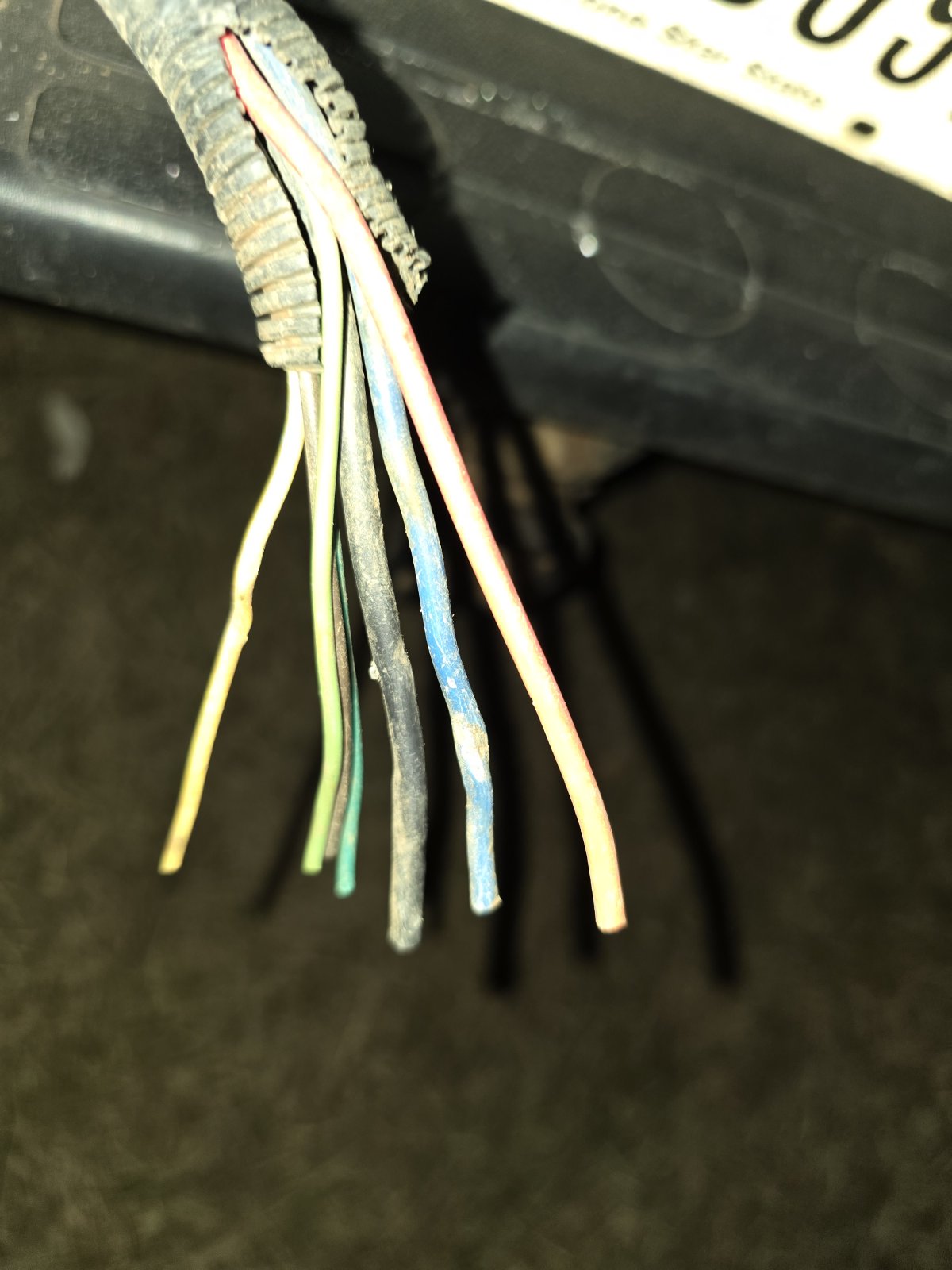

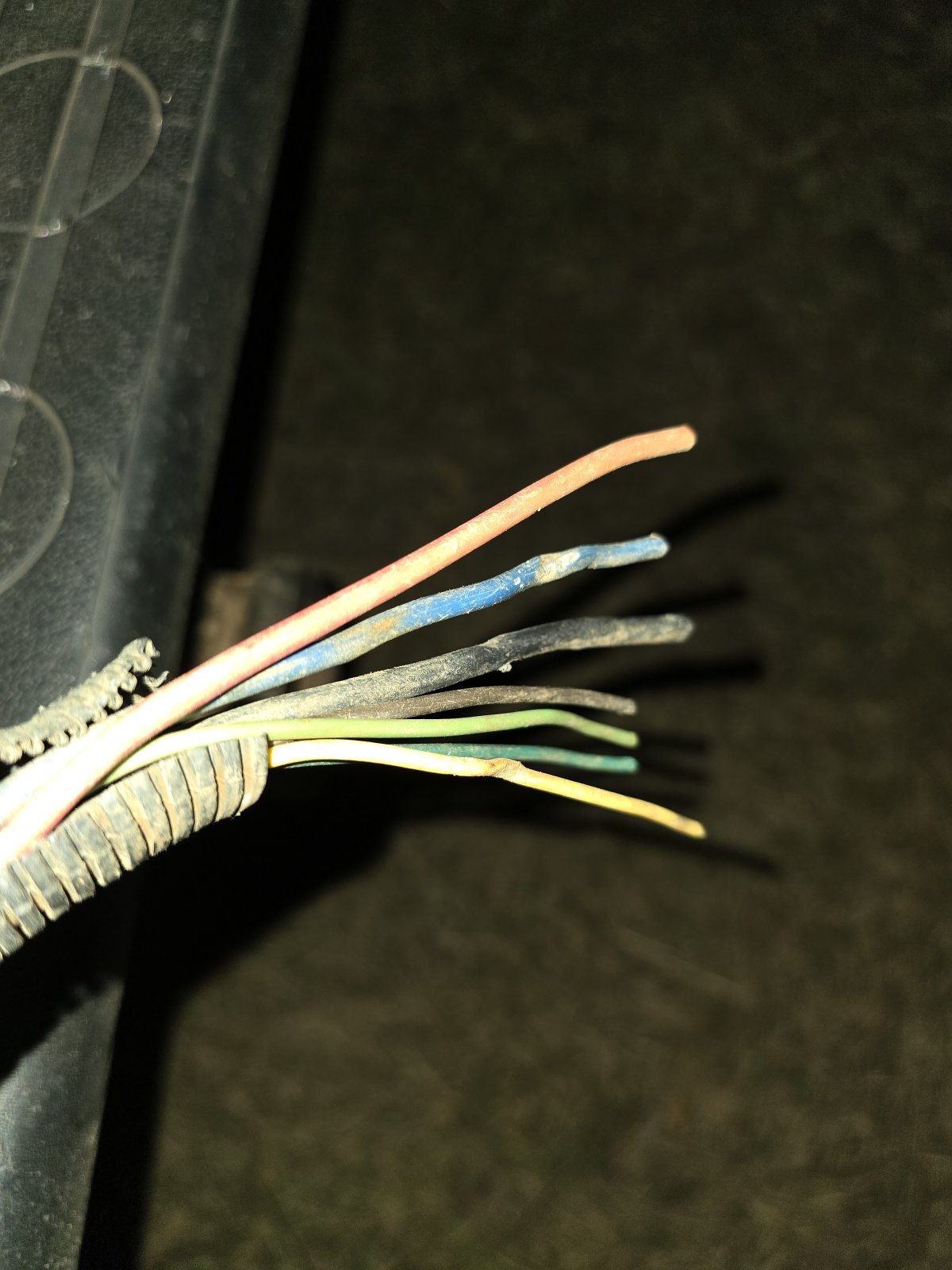

They are the exact same colors as the wires that go into the back of the "actual 7-blade connector" that i plug my trailer lights into. Fingers crossed they work. Going to look good mounted to the left of the license plate!!



[Dimbagbubba]

But I'm open to any ideas that might work



[Fless]

Are you wiring direct to the 7-blade connector, or just re-doing the harness connector?



[Dimbagbubba]

A new 7 pin connector. My old one got ripped off



[Dimbagbubba]

A new 7 pin connector. My old one got ripped off

If I'm mucking up, lemme know
