Aztek Needles installed on Esky Cluster

[95BlackTahoe]

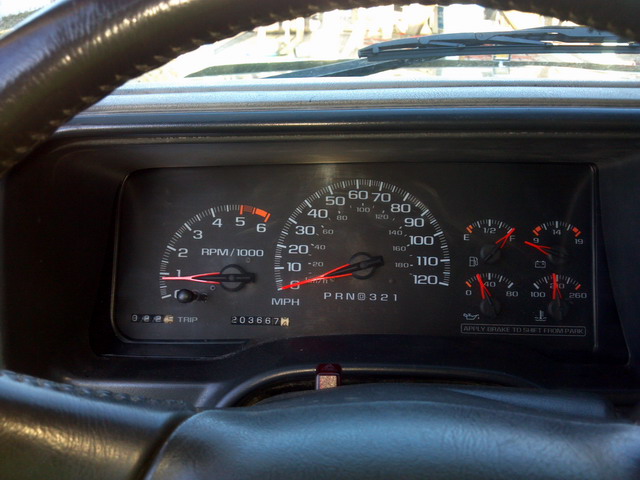

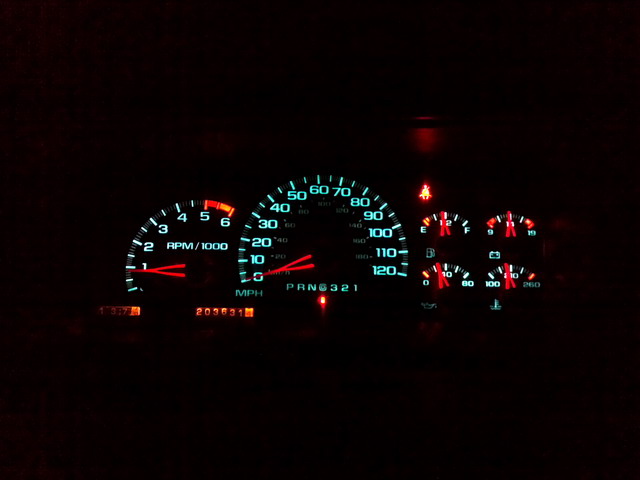

Well, I promised that I was going to get them in on a warm day... Finally got one the other day, and I forgot to post these...





I am very pleased with them, and they are not that hard to resize to fit our clusters. You will however need 2 sets out of 2 clusters. The tach needle is too small for anything, so you need 2 speedo needles and 4 from the temp and fuel gauges...

What do you think?

Shawn



[NathanJax]

looks pretty cool



[_Dylan_]

Here is mine



[96redsport]

Nice work... I also upgraded my cluster and needles this weekend.



[xanatost]

Where is the best place to find some that wont cost an arm and leg? Are those factory ones or after market? I am sooo getting me some for my hoe!! Best ones I seen in a log time



[_Dylan_]

I have an extra set, send me a PM. They are from a pontiac aztek.



[xanatost]

I have an extra set, send me a PM. They are from a pontiac aztek.

PM sent



[VicYukon]

@_DYLAN_ do you still have a set of Aztec needles?



[Beefhouse]

These are also the gauge needles found on the last generation Pontiac Grand Prix, which makes them more common than you'd think.
Picked up 2 clusters from ebay for cheap and will be doing this soon on my 96!



[_Dylan_]

These are also the gauge needles found on the last generation Pontiac Grand Prix, which makes them more common than you'd think.
Picked up 2 clusters from ebay for cheap and will be doing this soon on my 96!

That is correct. The 2004-2008 grand prix also has them. They are slightly different than the aztek needles. The tach needle is about 1/8" longer and the stems on the needles are different lengths compared to the aztek.

I will be switching to a grand prix tach needle soon, as it is a better fit for a tahoe/yukon cluster than the aztek tach needle.

---------- Post added at 12:58 PM ---------- Previous post was at 12:45 PM ----------

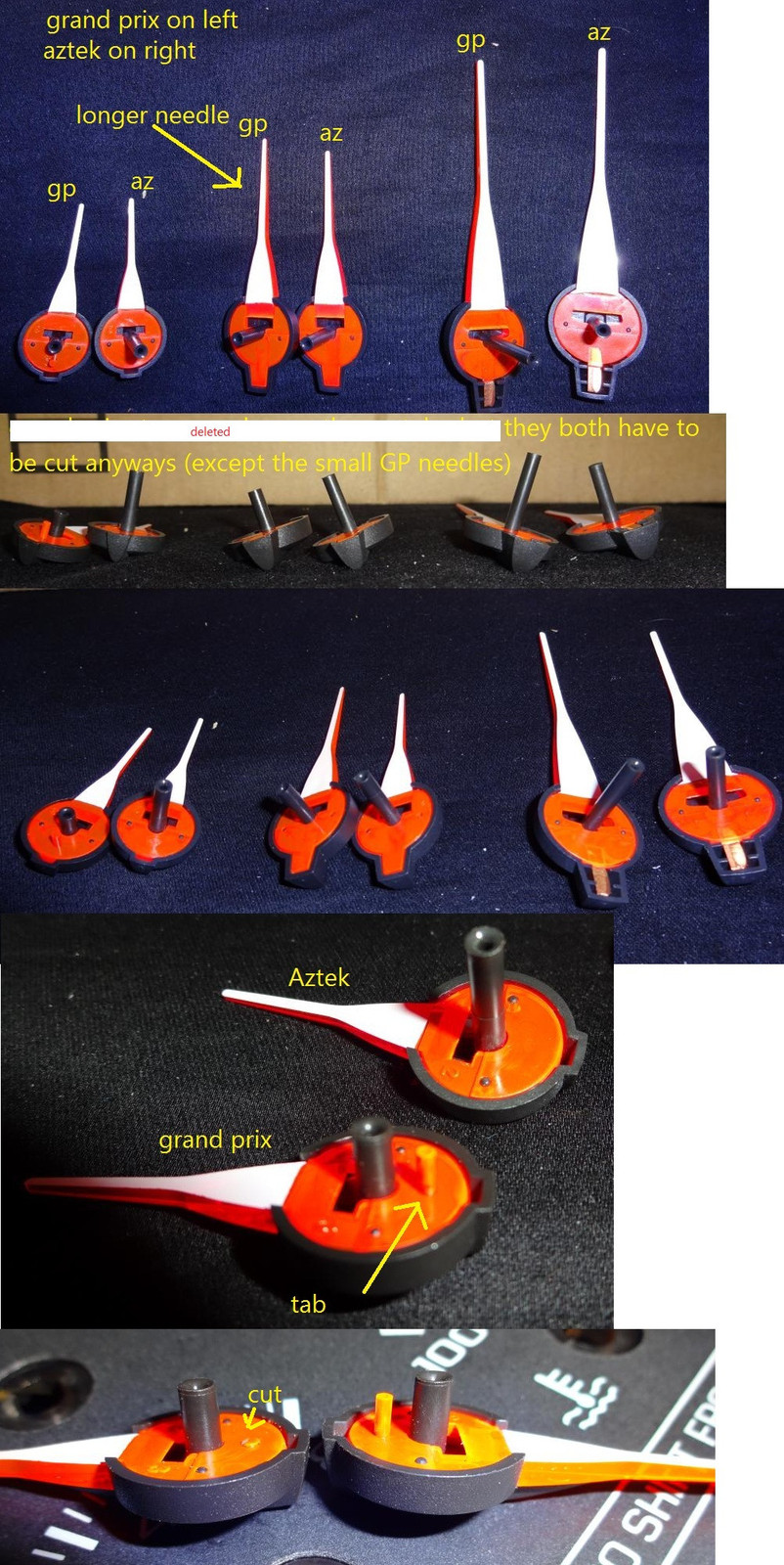

comparison between the two and insight into whats envolved when doing the swap:



tach needles


speedo needles before trimming the ends and also an example of a speedo needle on the tach


small needles before trimming the ends
