heated seats for a 97 Yukon

[johnsr]

I am new to the site and this is my first post. I have a 1997 GMC Yukon, with front bucket seats. the driver side seat frame was cracked, welded and recracked so I decided to bone yard a pair. I found a set out of a 1999 Yukon. When I got home I found out that they had a few more options than my original ones. They are both 6 way power with lumbar and heated. The driver side plug just needs the power run for the heater. the passenger side needs a complete rewire. I was smart enough to get the plugs with about 4 inches of wire on them. I have figured out all but the yellow wire on the passenger side, I also need the pin out for the bulkhead connector for both the 97 and 99. My goal is to make my mistake look like it came from the factor. I want to run the wires like GM did on the 99 Yukon for this set of options.


Thank you for you help.



[sgtpoliteness]

Do you need a wiring diagram then for a 99 Yukon with all the fixins?


Sent from my iPhone using Tapatalk



[johnsr]

Yes, please. The thing I am trying to do, is make it look like like my 97 came with heat 6way power seats on both sides. I have the dash out to fix other wiring problems so I want to run the seat wires just like the factory did.



[sgtpoliteness]

Ok, I'll try to get you the wiring diagrams later this AM when I get to work. Shoot me a PM with your email, that might be easier than posting them here.



[sgtpoliteness]

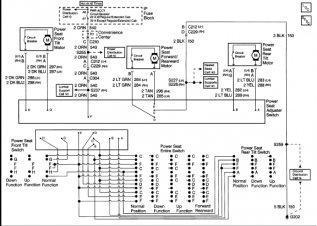

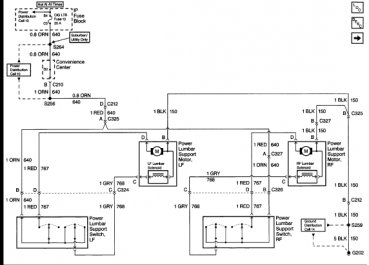

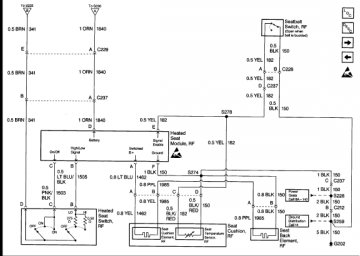

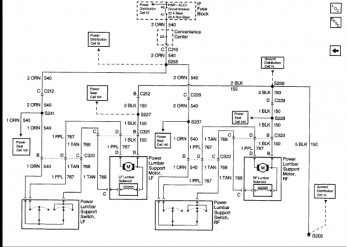

See if these help
