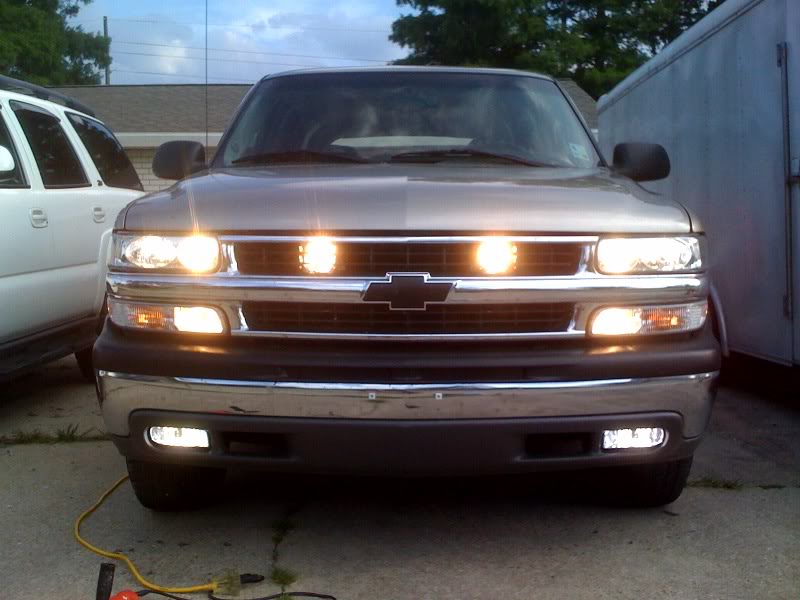

Check out this mod my brother and I just did to his z71:
when the weather clears up i think i'll go and do the same to mine
when the weather clears up i think i'll go and do the same to mine
Hidden Fog Lights!
- Thread starter danimalmax
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
Tribalbreak
Full Access Member
i like it... any way you could put some pics of how you mounted it and what all is involoved? i have a denali that i had considered hiding fogs behind the grille but havent done it yet....
OP
OP
danimalmax
Full Access Member
sure, we have it open right now because we're putting those wire cover things over all the wires, i'll take some pics of the brackets
OP
OP
danimalmax
Full Access Member
here you go tribal:
all i did was get some aluminum tubing and cut it out so it only had 2 sides, a back and a bottom, then used self tapping screws to screw it onto the frame that you see in the pic, then i drilled a hole on the bottom of it to mount the actual light onto, except i shaved the bracket thing that came on the bottom of the light so it would sit flat and sturdy onto the metal, then the ground is on the bottom of the bracket under the same bolt
all i did was get some aluminum tubing and cut it out so it only had 2 sides, a back and a bottom, then used self tapping screws to screw it onto the frame that you see in the pic, then i drilled a hole on the bottom of it to mount the actual light onto, except i shaved the bracket thing that came on the bottom of the light so it would sit flat and sturdy onto the metal, then the ground is on the bottom of the bracket under the same bolt
tast101
Supporting Member
looks good.
SFBerto415
Member
Looks sweet. Do they come on with the stock fog lights or did you have to install a secondary switch for them?
HMFDZ28
Full Access Member
Pretty cool... That kinda what we do for LED or Stobe lighting in a grill of a Burb or Hoe. Diggin it!
OP
OP
danimalmax
Full Access Member
my brother decided to mount a switch for his lights under his dashboard, but when i do mine, i think tomorrow, i'm gunna try to rig it up to come on with the rest of my brights so that it will become a 10 high mod - not sure how im gunna do that though
police cars?
wmgood64
BILL
looks great nice job!!!!!!
oneradride
Member

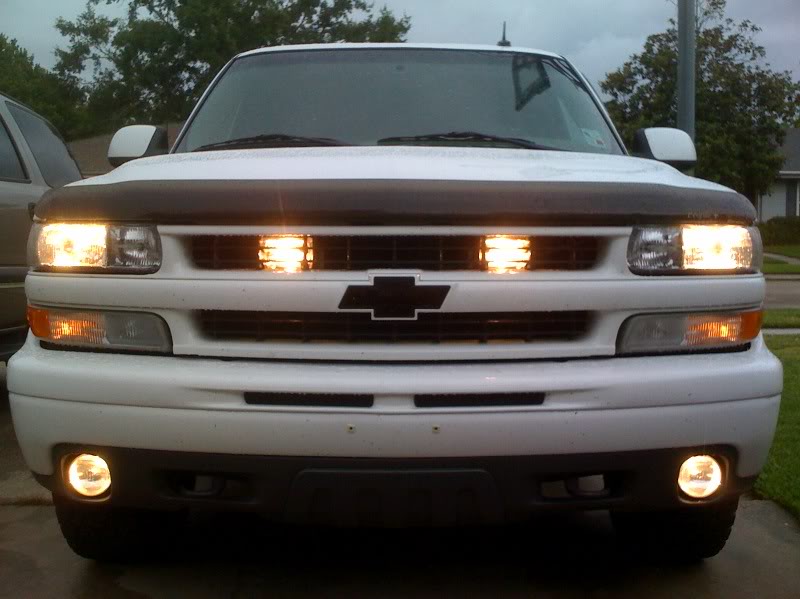

Works on Yukon's also.. I did this a long time ago.
