hvac wiring problems help

[dave198911]

i moved my hvac to my center console and after getting tired of the double din unit i decided to move everything back to stock and i cant get the wires on the hvac harness back right does anyone have a picture of the harness or have a wiring diagram of the hvac controls as of now i have not ac or heat so any help would be appreciated the main problem m having is there is two green wires on the plug ins to hvac and there doesnt seem to be any in the harness. i know the wires are color coated but some are the same color is there any way to tell the difference... the reason i decided to move it back is because the ac never worked right since then.



[SunlitComet]

HVAC Blower Control Schematics

Notes

Front Ventilation Controls
HVAC Air Delivery Schematics

Notes

HVAC Air Delivery Schematics: Front Ventilation Controls (Part 1 Of 2)

Notes

HVAC Air Delivery Schematics: Front Ventilation Controls (Part 2 Of 2)



[dave198911]

ok this may sound stupid but im not really sure how to read it what happened is i cut th plug ins to extend them and nowim trying to move them back and there are 2 green wires on the plug in side and i cant find any in the harness



[SunlitComet]

Will be gone for a few hours but if you can get some pics so I can see what connectors you have on the back of head unit and the specific wires location as you currently see them and what not.



[dave198911]

ok it will be tmrw evening but i will get pics up



[dave198911]

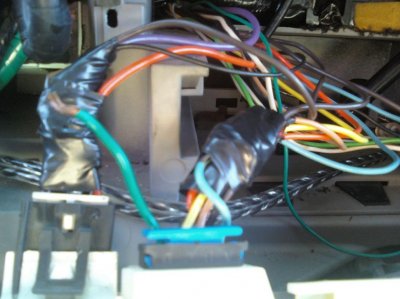

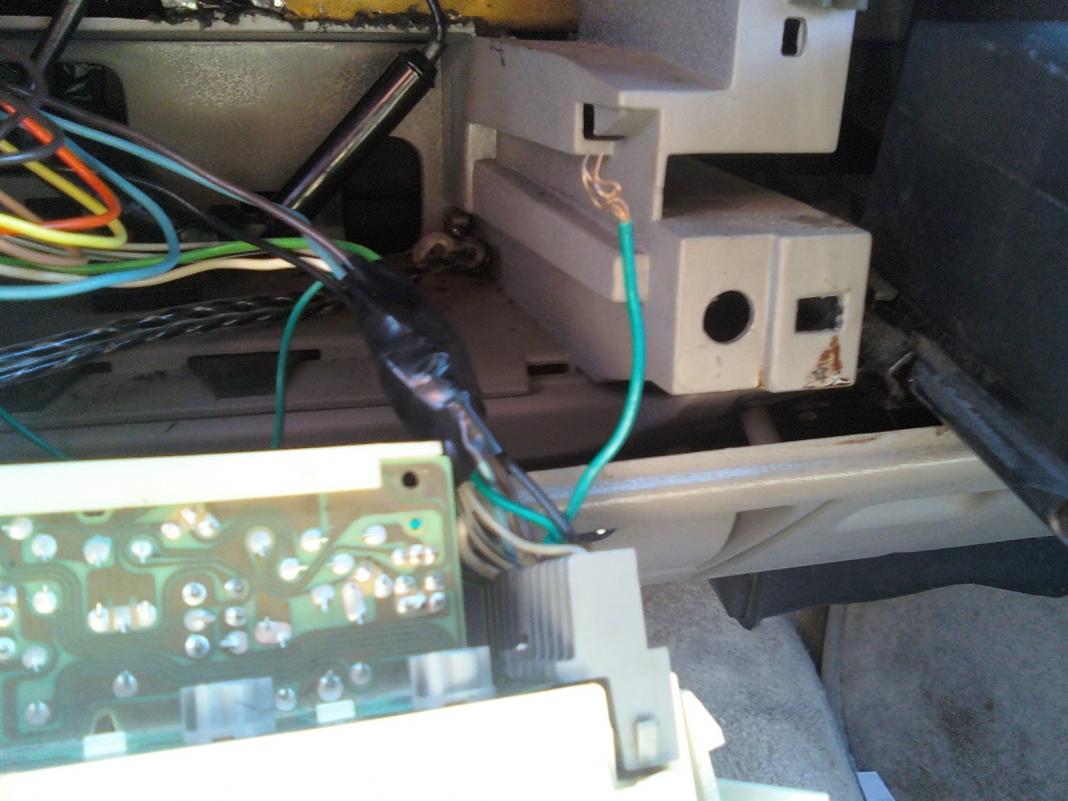

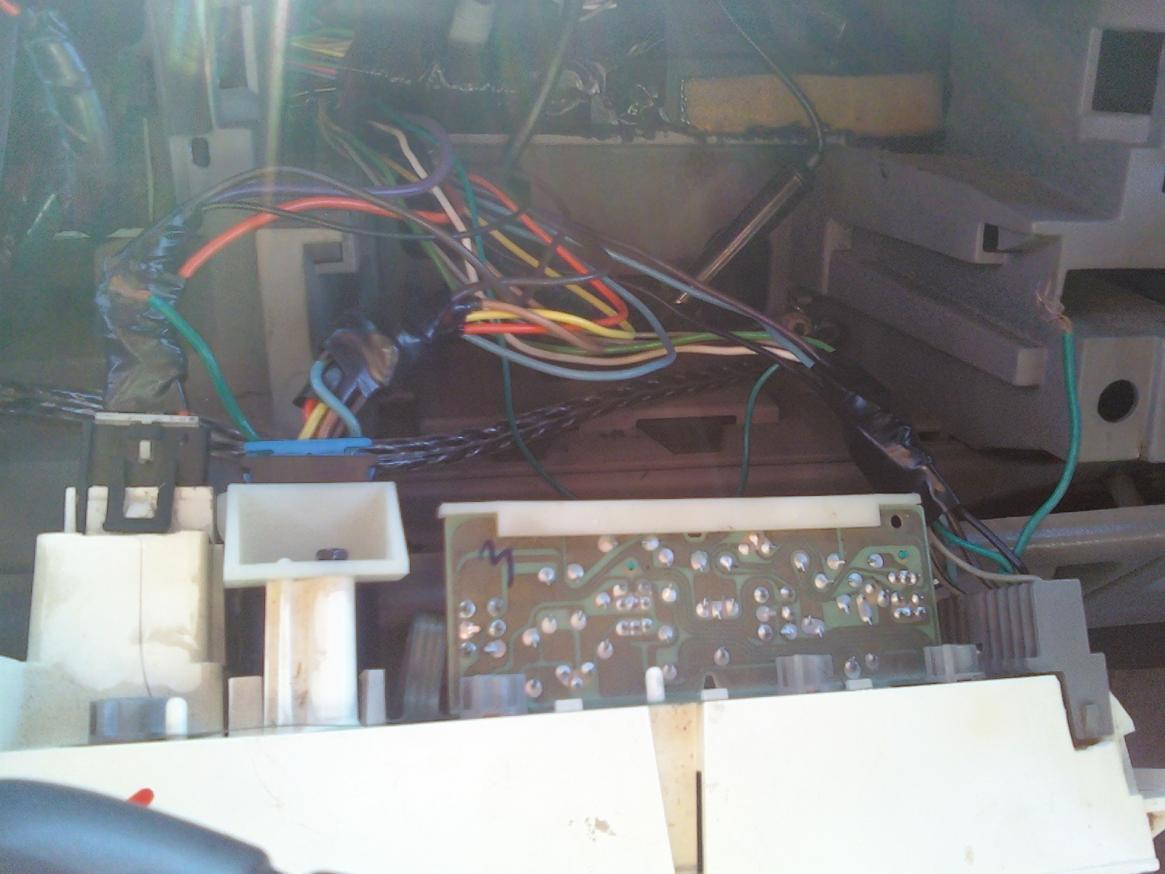

here are some pics



[SunlitComet]

can you get one of the rear of connected unit. I want to be able to see the back of inline connector.



[dave198911]

not sure what you mean by the rear of the connected unit ?.



[SunlitComet]

picture of the rear of hvac head unit so I can see where that broken wire is going on the connector. And please take it with the unit connected to the wire harness from the dash.



[dave198911]

ok i can get it tmrw thank for all the help
