turn signal mirrors

[1STIMEYUKON]

first time posting in this section so bear with me. im a NNBS style guy but a buddy as an 02 yukon and would like to put a set of turn signal mirrors (possibly power fold also) from an 04 yukon in his truck. however the 04 mirrors have two connectors and about a foot and a half of cable where as the 02 mirrors have 1 connector about 6 inches long. is this possible? does it involve alot of wiring? i tried the search but it wasnt very helpful. also if it is power fold mirrors would i need the switch from the 04 truck as well? thanks



[bsul92]

first time posting in this section so bear with me. im a NNBS style guy but a buddy as an 02 yukon and would like to put a set of turn signal mirrors (possibly power fold also) from an 04 yukon in his truck. however the 04 mirrors have two connectors and about a foot and a half of cable where as the 02 mirrors have 1 connector about 6 inches long. is this possible? does it involve alot of wiring? i tried the search but it wasnt very helpful. also if it is power fold mirrors would i need the switch from the 04 truck as well? thanks

I know its possible ive seen it done. I know for the signals to work, you have to tap into a wire up under the dash as there is no signal wire in the door to start with. Its a bit tedious, but do able. As for the power folding im not sure ha.

http://www.youtube.com/watch?v=U_hJMW57OiE
http://www.youtube.com/watch?v=qYo6bBO025w


That may help.



[RBTech]

Thanks for posting this, I've been looking into doing this myself



[chevy1500]

i just done it its a peice of cake on my 02 tahoe LT PM ME ill show you how to do it



[chevy1500]

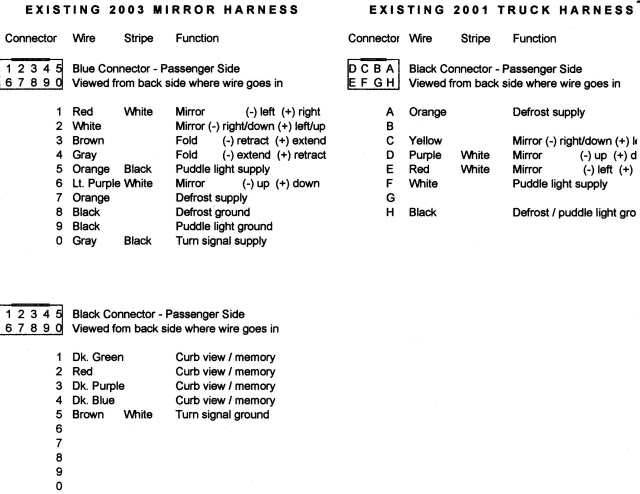

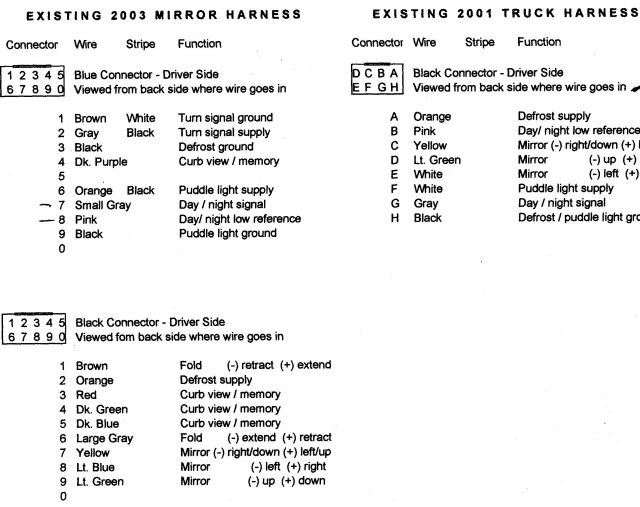

turn signal/heated mirrors

its just color matching and the onmy wires youre not using is the purple and drk green ones hope this help guys



[jatkinson123]

Ive been wanting this too. Thanks!

---------- Post added at 03:31 PM ---------- Previous post was at 03:28 PM ----------

But I have an '03 so I hope it works



[kses123]

I did this on my 2001 Denali. It worked great. You will need a switch to make the power fold work.



[a4edwin]

mine have been stolen twice and as much as i like the feature i ordered regular ones now.



[IE Imposster]

Reviving this old thread any one has instructions on how to this thanks
