02 DIC install

[ybndino]

So i picked up a DIC off of ebay and am wondering if anyone has the wiring diagram or anything to help me install it i don’t have a plug for it or anything just the module. any help is appreciated



[natureclone]

I was actually looking for a female plug for the DIC connection in a 2014. Somewhere on this forum someone mentioned a compatible connector for your year. It was from a stereo kit



[ybndino]

I was actually looking for a female plug for the DIC connection in a 2014. Somewhere on this forum someone mentioned a compatible connector for your year. It was from a stereo kit

i found that link all i really wanna know is what are the pin outs on the actually module itself but i have no clue where to start



[mattbta]

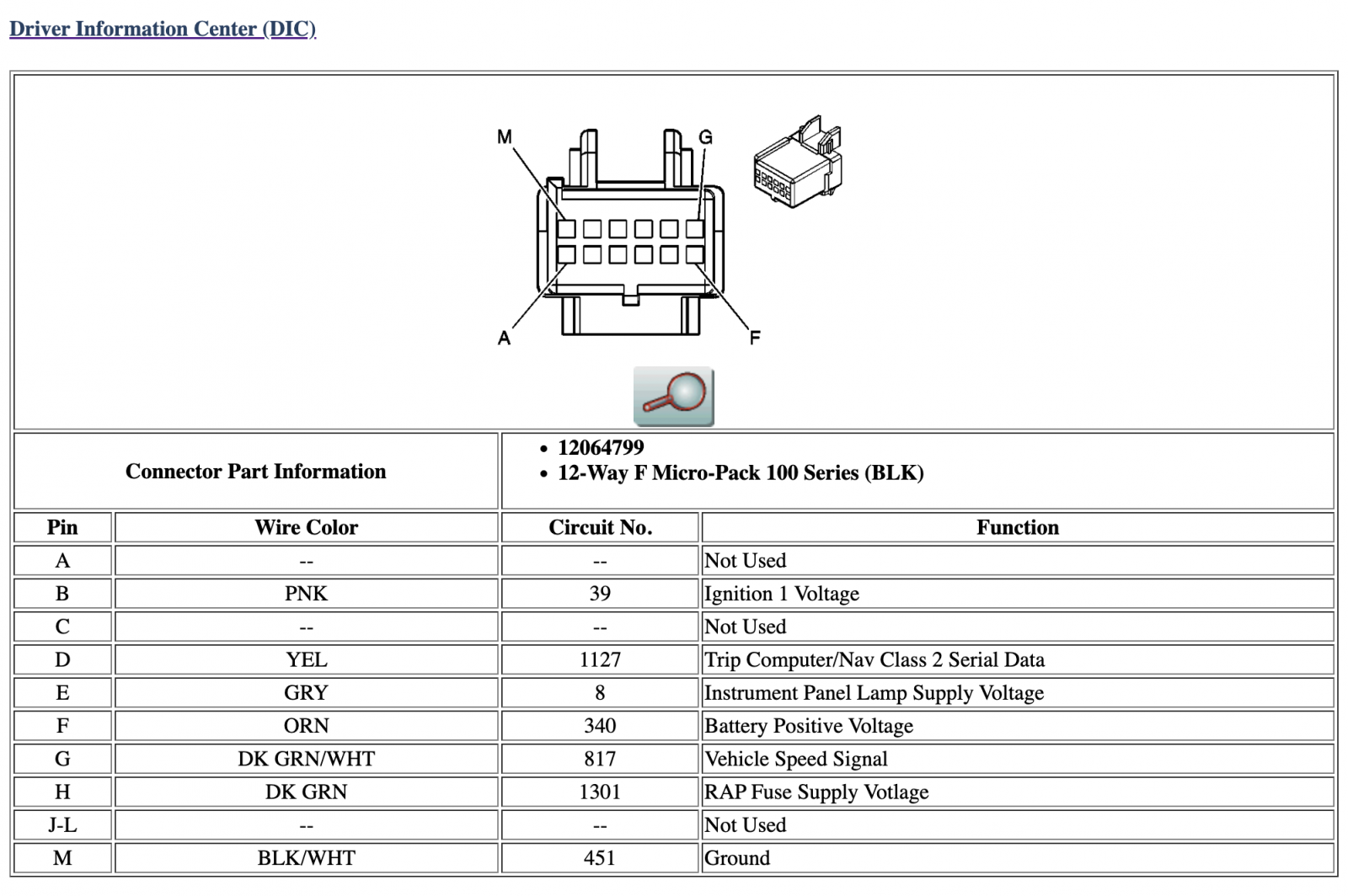

From 2002 Denali



[noodlesandsam2]

If anyone still cares / needs this

https://www.amazon.com/dp/B0CXTH7T6C?psc=1&ref=ppx_yo2ov_dt_b_product_details

Just arrived today. the black plug is the one you need, the other will go into spares, but for 12.00, it fits. I have to move the wires to the correct locations as above
