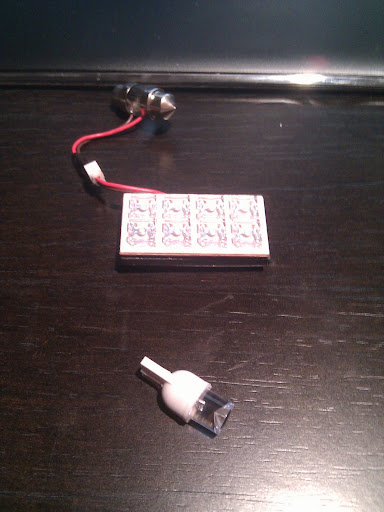

03 tahoe LED dome light

[angel.arteaga]

---------- Post added at 10:08 PM ---------- Previous post was at 10:07 PM ----------

It didnt work !!!!, Mr Balll are u online on a pc ?



[MrBalll]

Yes. If you go to that link you posted in the post before this one and just right click your image and click copy image URL then take what you copied and put it in the IMG tags.



[waxworkz]

just type

at the end of the link, no spaces



[angel.arteaga]

The thing is that I am only on my android phone, so I cant do as much on the phone as I could on a pc ao im gonna ask a favor from u....

Can u post my pics here in the discussion again like u did a while ago but with the instructions that I wrote for each pic. I would really appreciate that. I dont have internet here at home, only on the phone.



[MrBalll]

No problem. On it right now.



[angel.arteaga]

Thank you I appreciate that.

If anyone has any questions or would like me to take better pics or more pics please let me know.

Hey guys im sorry I made a booboo on the instructions in the pic with the red wire that goes to ground, this wire is the one coming from Terminal 86 on the relay I REPEAT !!!, Terminal 86 on the relay goes to ground, not 85. NOT 85

Sorry bout that

---------- Post added at 10:29 PM ---------- Previous post was at 10:18 PM ----------

MrBalll can u fix my error please !!!!!!! LOL

---------- Post added at 10:55 PM ---------- Previous post was at 10:29 PM ----------

Just grab a link to the image and in the reply box just click the little yellow box with a mountain in it on the mid-right. It should have an image link inside tags like below.

angel.arteaga images below. ......
[ATTACH=full]288867[/ATTACH]
"In this picture, on the bottom right side, u can see a rectangular white connector with 3 wires coming out of it. On the bottom left side of this picture u can see the black plastic dom that houses the passenger side domelight bulb, u can also notice that this black plastic dome has 2 wire terminals on it, the wires coming out of these 2 terminals are yellow and black. The black wire coming out of the terminal on this black plastic dome goes directly to the white rectangular connector on the bottom right of the pic, which I mentioned before. This is the wire that I cut between the black plastic dome and the white rectangular connector, it is already cut in this pic. The side of this black wire that comes out of the white rectangular connector goes to Terminal 85 on the relay, and the side of the black wire that comes out of the black plastic dome terminal, goes to Terminal 30 on the relay."

[ATTACH=full]288868[/ATTACH]
"This is a better pic of the little white harness where I got the 12v constant as u can see this little harness has 6 pins (3 on the top row and 3 on the bottom row). I tapped the wire coming from Terminal 87 on the relay to the orange wire on the bottom row to the right side, u can see an empty pin on top of this wire that I used."

[ATTACH=full]288869[/ATTACH]
"This brown wire u see here with an in-line fuse installed is the wire that comes from terminal 87 on the relay, Constant 12v. I tapped it it to an orange wire on that little white harness u see on the pic"

[ATTACH=full]288870[/ATTACH]
"This is the wire that comes from Terminal 86 (not 85) on the relay. I just got the GND from that top metal bracket."[/QUOTE]

That red wire comes from Terminal 86 on the relay, NOT 85[COLOR="Silver"]

[SIZE=1]---------- Post added at 10:58 PM ---------- Previous post was at 10:55 PM ----------[/SIZE]

[/COLOR]Fixed it, sorry bout that guys.[COLOR="Silver"]

[SIZE=1]---------- Post added at 11:02 PM ---------- Previous post was at 10:58 PM ----------[/SIZE]

[/COLOR]So here are the correct terminals of the relay once again

86- GND
87- Constant 12v
87a- not used
85- vehicle side of the black wire that was cut
30- bulb side of the black wire that was cut[COLOR="Silver"]

[SIZE=1]---------- Post added at 11:11 PM ---------- Previous post was at 11:02 PM ----------[/SIZE]

[/COLOR][ATTACH=full]288871[/ATTACH]

For an even better understanding of what I did, that is that actual relay diagram that I used.[COLOR="Silver"]

[SIZE=1]---------- Post added at 11:15 PM ---------- Previous post was at 11:11 PM ----------[/SIZE]

[/COLOR]Anybody gonna try this on their dimming LEDs ???????????



[Tahoewhat]

if time permits, im thinking of trying it out this weekend, but im going to have to re-read this a couple times. lol



[angel.arteaga]

Its really not as hard as it seems, im pretty sure u'll pull it off just fine, if u got any doubts or questions just let me know



[Tahoewhat]

Im sure i can do it, w/ all the stuff ive done, shouldn't be a problem, but thats the hard part, the easy things for me, end up being a day long ordeal. lol

but i will hit you up if i got questions, i know i will.



[angel.arteaga]

I hear ya, so u've been installing stuff for a while now ?
