Matthew Jeschke
Full Access Member

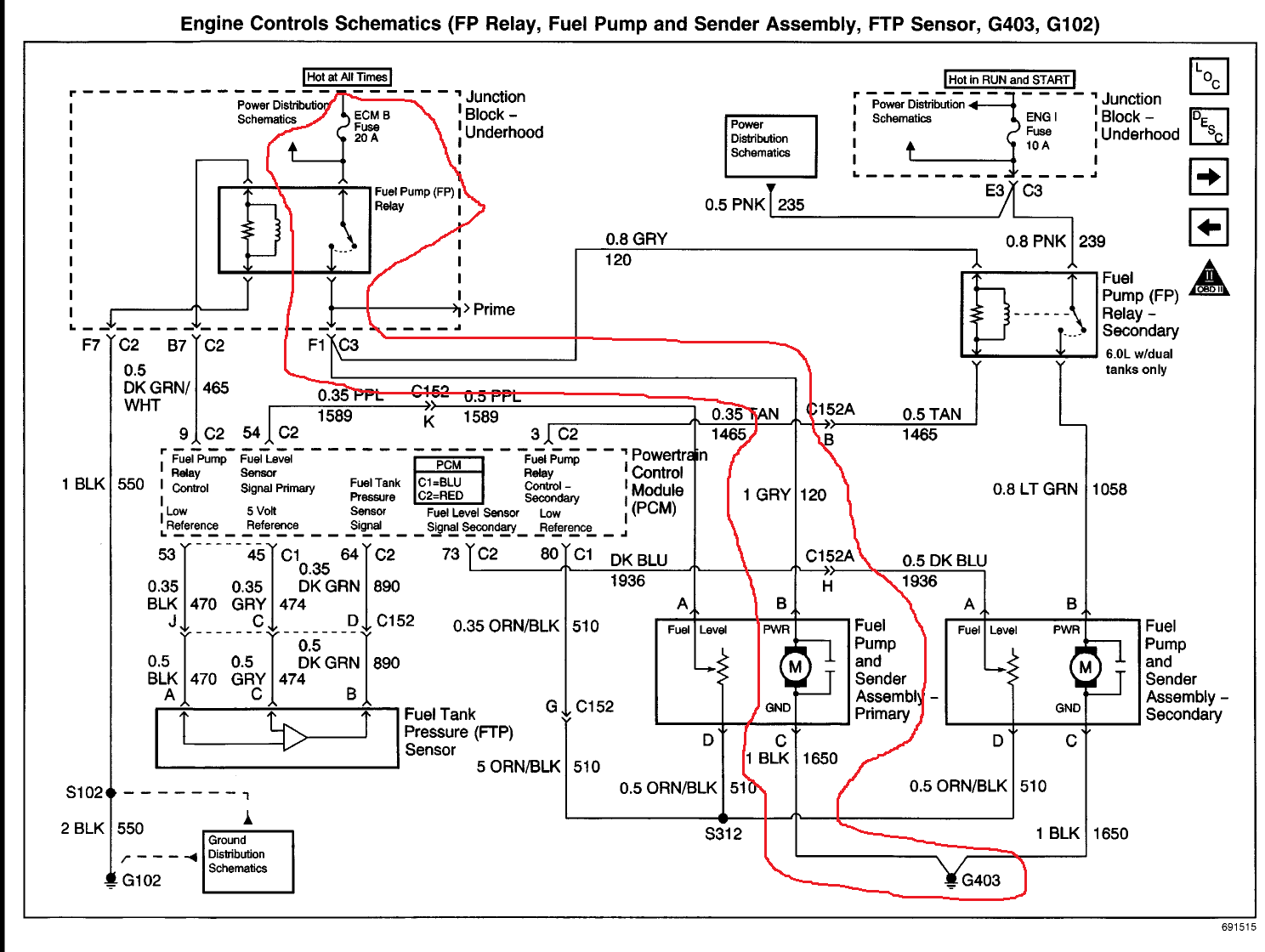

I am installing a new high flow fuel pump. Separate post. Called manufacturer and they recommend 20 amp fuse w/ 12 gauge wire. Current circuit has 18 gauge wire (1 according to wiring diagram?) and a 20 amp fuse. I need to open the harness and run 12 gauge wire to pump.
However, I'm unsure what style pin is in the junction box. I want to buy a new pin / re-pin the connection. I see most of the parts stores sell new pins (via order) but I need to figure out what part number.
UPDATE: One guy says a a Metri-Pack 280 tang-less terminal? Guy talks about it HERE Dorman part number 85338
However, I'm unsure what style pin is in the junction box. I want to buy a new pin / re-pin the connection. I see most of the parts stores sell new pins (via order) but I need to figure out what part number.
UPDATE: One guy says a a Metri-Pack 280 tang-less terminal? Guy talks about it HERE Dorman part number 85338
Last edited:
