Ok, ok. I just went out and took some night pics on a tripod. I used FRS radios to ask my wife to turn things on and off in the truck. She says to tell you all, 'your welcome'. :)

Wide Angle: Running Lights

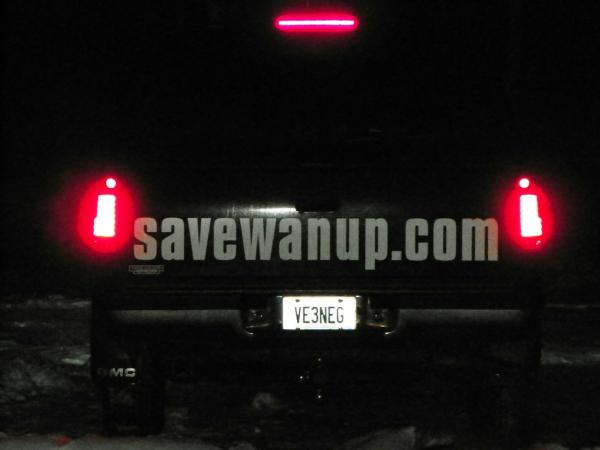

Wide Angle: Brakes

Wide Angle: Reverse HID's and Brakes

Wide Angle: Reverse HID's - Look at the snow. Both the front and back are lit up good! This is why I spent $80! I can't wait until spring when I wire up a switch in the cab to deal with tailgaters!



Closeup: Running Lights

Closeup: Brakes

Closeup: Reverse HID's Warming up.

Closeup: Reverse HID's Good to go!

The circles on top are not lit up, it's just the reflection from the camera flash.

Last edited:

Tahoewhat

Ballin' on a Budget
Supporting Member
Joined
Sep 20, 2009
Posts
3,720
Reaction score
24
Location
TX
very nice, those sure do light up the rear at nite.. ha ha


retorq

Full Access Member
Joined
Mar 4, 2010
Posts
3,018
Reaction score
10
Location
Kingman AZ
Wow nice. It gets REALLY dark at nite out here those would come in handy. :D

OP
OP
99Yuk

99Yuk

Full Access Member
Joined
Sep 28, 2009
Posts
1,080
Reaction score
14
Location
Northern Ontario, Canada
Thanks for the compliments guys. I'm really enjoying them. I find myself trying to find ways to backup at night now!

BTW, take a close look at this pic. You can really see the color difference from the 8000k fronts and 5000k rears. I find the 5000k too creamy. If I had to do it again, I might pick 6000k. Maybe I'm just climatized to the blue hue of the fronts enough that I dislike the white hue. IDK


EDIT: Boy what a difference a few months make. Turns out that I can see more with 5000k then I can with 8000k. Color be damned, I'm getting old and want to see where I'm going. So a few weeks ago, I orderd up and installed 55w 5000K for my fronts. All I can say is way better for vision than the 8000K's. So to recap, I now have 5000k fronts and rears, and I like it!



Last edited:

SunlitComet

OBS Jedi-Do Good
Joined
Sep 30, 2010
Posts
16,206
Reaction score
187
Location
unknown at this time.
Regarding the installation did you use existing reverse wiring or did you have a relayed setup?

---------- Post added at 02:00 AM ---------- Previous post was at 01:49 AM ----------

Concerned about the 18awg wire size and damaging the back up switch.

OP
OP
99Yuk

99Yuk

Full Access Member
Joined
Sep 28, 2009
Posts
1,080
Reaction score
14
Location
Northern Ontario, Canada
Regarding the installation did you use existing reverse wiring or did you have a relayed setup?

---------- Post added at 02:00 AM ---------- Previous post was at 01:49 AM ----------

Concerned about the 18awg wire size and damaging the back up switch.

Good question!
I was concerned during install too!
So I carefully looked at things myself to ensure there would be no issues.

In the end I decided to use the existing reverse wiring. Here's why.

The new DDM ballasts only consume 6A on startup and 3A on runtime.
Both HID's consume 12A on startup and the backup fuse is 20A. There would be no issues there.
The gauge of the wiring is fine for short bursts of 12A. Again there would be no issues there.

Although I didn't have specs on the backup switch itself, I couldn't imagine that mechanical switch couldn't handle 12A.

For the record, I'm going to wire up the manual tailgater switch to a relay to the existing reverse wiring. I don't want 12A running up my headliner to where the switches are.


foreverfalcon40

Full Access Member
Joined
May 3, 2009
Posts
2,082
Reaction score
4
That is awesome!

Very jealous!

Too bad it is not that easy with OEM lights!


kudos!
