kbuskill
***CAUTION*** I do my own stunts!
I'm not sure about the harness you used.
I have an '08 Burb LTZ and I installed a Kenwood DNX575S using a Maestro and have RSE working.
On my HU there are a couple settings that need to be selected depending on how you want the RSE to play (headphones or through the rear speakers).
Here is a video that shows the proper way to hook up the wiring harnesses for RSE and also shows you the settings I am talking about in the radio.
Skip ahead to about 2:30 for the menu settings...
https://binged.it/2ObhUjk
Hope this helps.

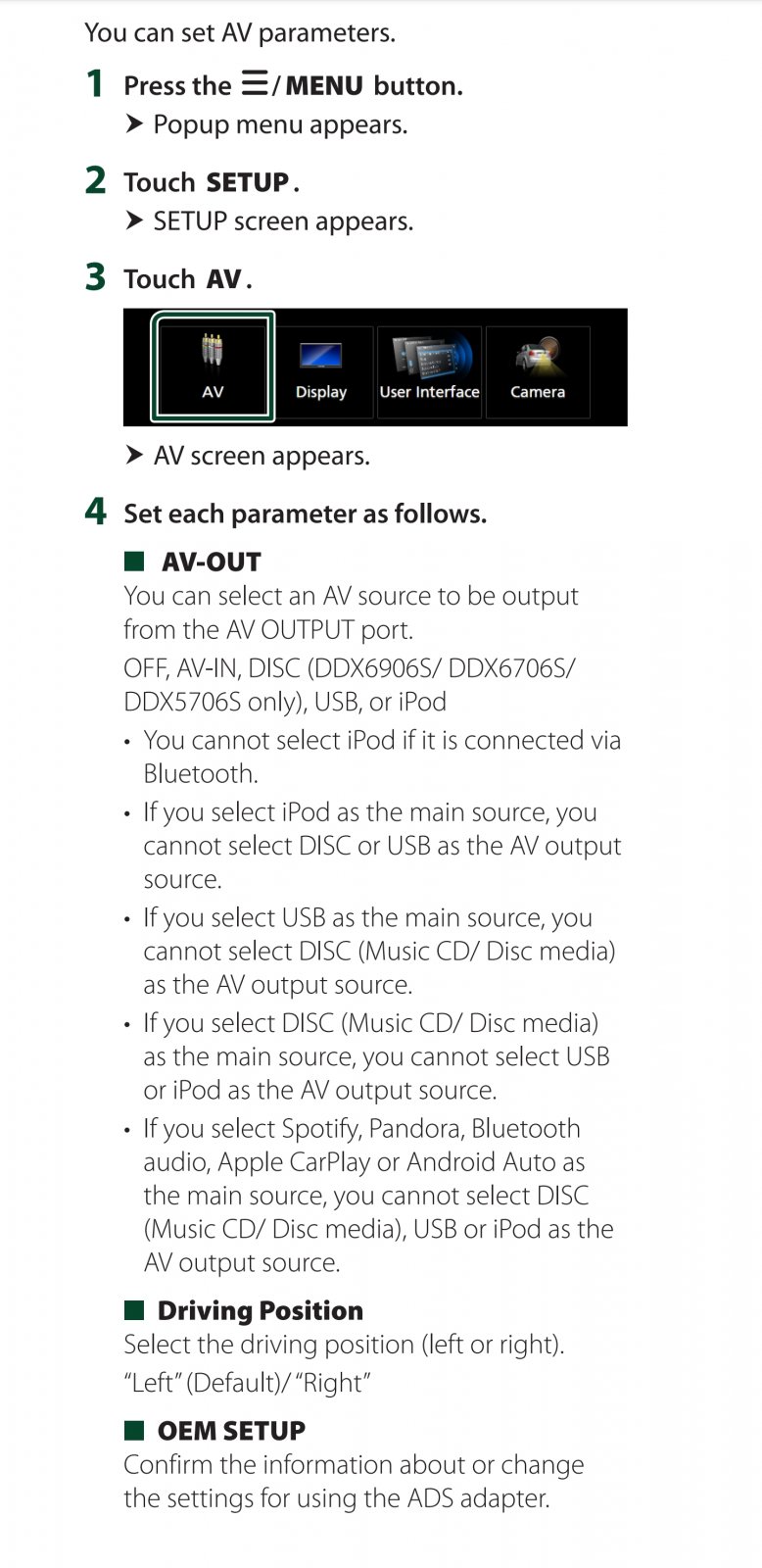

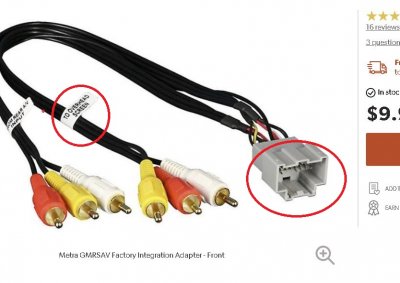

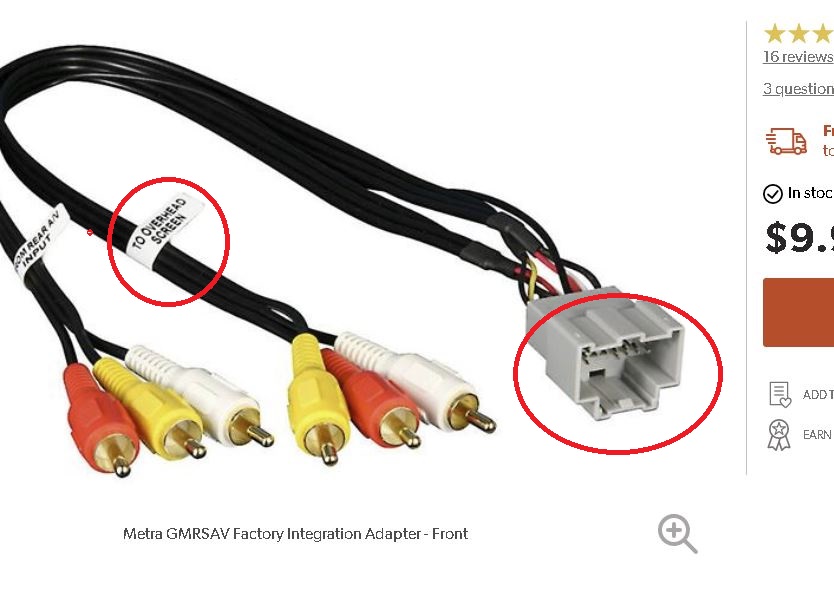

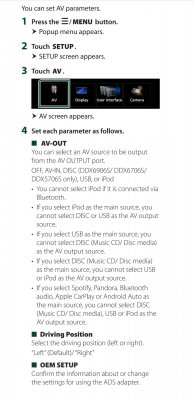

Thx for the info I'm using Axxess GMRSAV harness for the rse its straight forward how to install that but on the factory drop down screen is no picture the kenwood deck I have has no DVD player it's a multi media deck but in the av out settings I have it set to USB and still nothing
kbuskill
***CAUTION*** I do my own stunts!
GMRSAV doesn't use USB, it uses RCA ports, so having the AV OUT set to USB won't allow the RSE to work... at least that's my guess.
Try changing the AV out settings and see what happens.
kbuskill
***CAUTION*** I do my own stunts!
If all of your connections on the back of the HU are correct then I am at a loss.
As I stated earlier, I used an Idatalink Maestro to retain all the factory functions and they use a different RSE harness. It was an Idatalink HRN-AV-GM5.
Perhaps someone who has used the same RSE harness as you can be of more help.
Buckeye Banker
TYF Newbie
I just put a Kenwood DMX906s in my 13 Yukon Denali XL and had the same issue. I used the idatalink maestro rr, so I called their tech support and was informed that the 2nd row and 3rd row monitors are run on different pins on the factory harness. I had to find pins 8 and 18 on the back side of the factory connector and solder an rca jack. Then split the video signal from the audio out from my new kenwood with RCA Y adapter to the jack that I just installed AND the video connector on the aftermarket AV harness.
Hope this makes sense. I found a tech bulletin from Alpine that had pictures, but don't have it with me right now.
Worked like a charm after I split the signal and sent to both feeds, but definitely more work that I had planned for.
I did search all the aftermarket AV harness makers, and none seemed to send the video feed to pins 8 and 18. They all seem to be made for Tahoe/Yukon with single rear screen instead of the Suburban/Yukon XL with dual screens.
Here is the email that I received from tech support at idatalink:
GM2 harness vehicles with 3rd row overhead, the 3rd row video wires can be found in the 20 pin black plug that plugs into the AVGM2, pin 8 Green (goes to center conductor of RCA) and pin 18 White (goes to shield of RCA)
Shout out to Idatalink on their excellent support and also for their Maestro RR. It worked great!!! Does not retain factory XM, but does OnStar, chimes, OBD2 for guages, rear park assist, tpms, Rear AV IN, 2nd row factory screen, factory wireless headphones.
Hope this makes sense. I found a tech bulletin from Alpine that had pictures, but don't have it with me right now.
Worked like a charm after I split the signal and sent to both feeds, but definitely more work that I had planned for.
I did search all the aftermarket AV harness makers, and none seemed to send the video feed to pins 8 and 18. They all seem to be made for Tahoe/Yukon with single rear screen instead of the Suburban/Yukon XL with dual screens.
Here is the email that I received from tech support at idatalink:
GM2 harness vehicles with 3rd row overhead, the 3rd row video wires can be found in the 20 pin black plug that plugs into the AVGM2, pin 8 Green (goes to center conductor of RCA) and pin 18 White (goes to shield of RCA)
Shout out to Idatalink on their excellent support and also for their Maestro RR. It worked great!!! Does not retain factory XM, but does OnStar, chimes, OBD2 for guages, rear park assist, tpms, Rear AV IN, 2nd row factory screen, factory wireless headphones.
Last edited:
Buckeye Banker
TYF Newbie
Read through your post again, and just wanting to clarify that you got the 2nd row screen working, but not the 3rd. If 2nd row not working, you have other install issues or issues with settings on the Kenwood head unit.
Here is a link to the tech bulletin from alpine showing pictures of the Rear AV connector and the mod that needs to be made to allow the 3rd row screen to display the same content as the 2nd row.
https://kb.alpine-usa.com/file.php?id=2
To test, I used a isimple medialinx composite to HDMI converter on the rear video inputs. Then used apple lightning to HDMI adapter. This allows my kids to use their iphones or ipads in back to run into the system. Kenwood must be set to patch AV IN -> AV OUT.
I was also able to play a video file from a USB device on the back screens, but you cant do this while using Apple CarPlay, so worthless for me. I did not purchase a Kenwood unit with the DVD because we intend to use the AV IN to connect devices and provide content. I cannot recommend trying to play media files from USB. If not getting content from AV IN, I recommend getting unit with DVD.
The factory wireless headphones still work just fine with the audio from AV IN.
Hope this helps!
Here is a link to the tech bulletin from alpine showing pictures of the Rear AV connector and the mod that needs to be made to allow the 3rd row screen to display the same content as the 2nd row.
https://kb.alpine-usa.com/file.php?id=2
To test, I used a isimple medialinx composite to HDMI converter on the rear video inputs. Then used apple lightning to HDMI adapter. This allows my kids to use their iphones or ipads in back to run into the system. Kenwood must be set to patch AV IN -> AV OUT.
I was also able to play a video file from a USB device on the back screens, but you cant do this while using Apple CarPlay, so worthless for me. I did not purchase a Kenwood unit with the DVD because we intend to use the AV IN to connect devices and provide content. I cannot recommend trying to play media files from USB. If not getting content from AV IN, I recommend getting unit with DVD.
The factory wireless headphones still work just fine with the audio from AV IN.
Hope this helps!
Last edited:
