Hello I have a 2002 yukon that I need to replace the front door hinge pins. I have the short split pin type. I purchased the repair kit. I need some advice on how to remove the old pins. I tried to drive them but with no success. I looked on line and only could find the reomval procedure for the full length pins. Any advice would be greatly appreciated Thanks
Replace Front Door Hinge Pins 2002 Yukon
- Thread starter stowe
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
sethsperlik
Member
Front Side Door Hinge Pin and Bushing Replacement
Removal Procedure
1. Remove the door.
2. Remove the hinge pins from the hinge by grinding the bottom end of the pin off and driving out the remainder of the pin using a hammer and punch.
3. Remove the old bushings from the hinges.
Installation Procedure

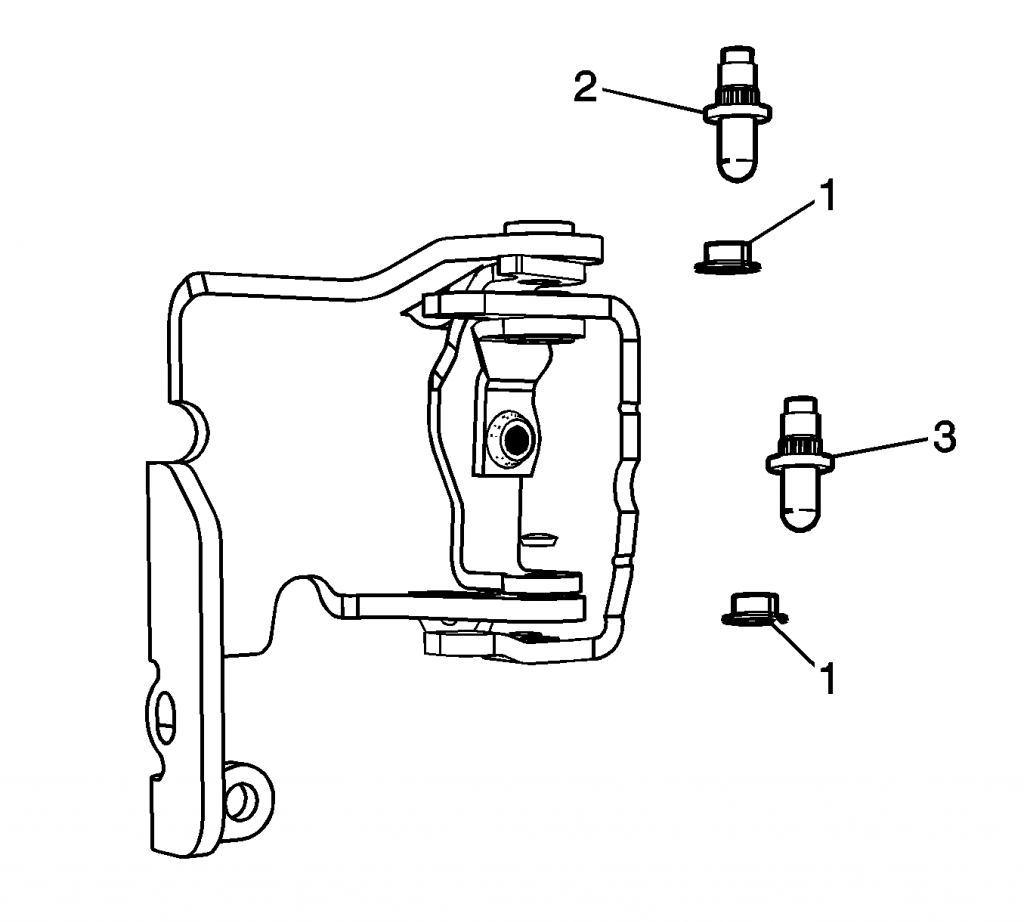

1. Install the hinge pin bushings (1) into the hinges.
2. Install the shorter hinge pin (3) into the bottom hole in the hinge.
3. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
4. Tap the shorter hinge pin (3) into the hinge as far as it will go.
5. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
6. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
7. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
8. Install the longer hinge pin (2) into the top hole in the hinge.
9. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
10. Tap the longer hinge pin (2) into the hinge as far as it will go.
11. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
12. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
13. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
Install the door. Refer to Front Side Door Replacement.
Lubricate the hinge pins with Goodwrench® Super Lube or equivalent.
Got this from my GM service manual. Hope it helps.
Removal Procedure
1. Remove the door.
2. Remove the hinge pins from the hinge by grinding the bottom end of the pin off and driving out the remainder of the pin using a hammer and punch.
3. Remove the old bushings from the hinges.
Installation Procedure
1. Install the hinge pin bushings (1) into the hinges.
2. Install the shorter hinge pin (3) into the bottom hole in the hinge.
3. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
4. Tap the shorter hinge pin (3) into the hinge as far as it will go.
5. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
6. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
7. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
8. Install the longer hinge pin (2) into the top hole in the hinge.
9. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
10. Tap the longer hinge pin (2) into the hinge as far as it will go.
11. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
12. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
13. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
Install the door. Refer to Front Side Door Replacement.
Lubricate the hinge pins with Goodwrench® Super Lube or equivalent.
Got this from my GM service manual. Hope it helps.
Front Side Door Hinge Pin and Bushing Replacement
Removal Procedure
1. Remove the door.
2. Remove the hinge pins from the hinge by grinding the bottom end of the pin off and driving out the remainder of the pin using a hammer and punch.
3. Remove the old bushings from the hinges.
Installation Procedure
1. Install the hinge pin bushings (1) into the hinges.
2. Install the shorter hinge pin (3) into the bottom hole in the hinge.
3. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
4. Tap the shorter hinge pin (3) into the hinge as far as it will go.
5. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
6. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
7. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
8. Install the longer hinge pin (2) into the top hole in the hinge.
9. Install the washer supplied in the kit and a standard 5/16 inch x 18 nut onto the replacement hinge pin.
10. Tap the longer hinge pin (2) into the hinge as far as it will go.
11. Tighten the 5/16 inch x 18 nut with a hand wrench, drawing the hinge pin into the hinge until the pin is fully seated.
12. Replace the standard 5/16 inch x 18 nut with the lock nut supplied in the kit and finger tighten.
13. Tighten the lock nuts.
Tighten
Tighten the nuts to 19 N·m (14 lb ft).
Install the door. Refer to Front Side Door Replacement.
Lubricate the hinge pins with Goodwrench® Super Lube or equivalent.
Got this from my GM service manual. Hope it helps.
is this gm service manual by any chance in pdf form?
sethsperlik
Member
It's on ebay for 20 bucks. They send you a download through email or a cd in the mail. Amazing price considering the range of vehicles it covers. It's the one the service department people use at the dealership. It goes back to the 80's or so and covers all gm vehicles.
