so I got my truck serviced today for sum “squeaky noise” I have notice while driving. And when I turn the wheel. I had my mechanic just inject grease to quiet down down the noise. I just got her back and the noise is gone. He told me I would need to replace my upper/lower control arms and ball joints and 2 front axles. Can anyone help me on what brands to look for and if I should get anything else?

*side note*
2009 LS 4WD Tahoe
Supreme suspension 2.5/1 level kit


Tiki

Full Access Member
Joined
Jun 4, 2013
Posts
640
Reaction score
321
If you are doing your Upper and Lower control arms your going to have enough off the truck to basically do your whole front end. Wheel bearings, CV boots, steering, coilover, etc.

The 2.5" lift is accelerating wear on almost all components. Question is how long do you want to own the vehicle because if you have a shop do this, your going to be for a chunk of change.


Big Mama

Full Access Member
Joined
Jul 21, 2015
Posts
3,363
Reaction score
2,032
Location
Virginia
As for parts use oem unless you want to upgrade but you may want aftermarket suspension parts designed for a lift


Lil_Stump

Full Access Member
Joined
Apr 22, 2016
Posts
93
Reaction score
55
Location
Brunswick, GA
If you are doing your Upper and Lower control arms your going to have enough off the truck to basically do your whole front end. Wheel bearings, CV boots, steering, coilover, etc.

The 2.5" lift is accelerating wear on almost all components. Question is how long do you want to own the vehicle because if you have a shop do this, your going to be for a chunk of change.
I second this. If I were you I’d run zone off-road UCAs, they will help with angles and they’re incredibly beefy so they’ll last. I’d also just go ahead and replace most of the front suspension parts as that will just help you in the long run. As for LCAs I’m not sure who makes good ones but I’m sure places like rock auto will sell good ones. Most of this can be done in your front yard, just takes time but will save you monumentally in labor costs, then you just have to drive it to get an alignment for like $80 and you’re set.


steve45

Full Access Member
Joined
Sep 20, 2013
Posts
120
Reaction score
92
How many miles on it? Did he actually show you what was wrong?


mang213

Member
Joined
Nov 25, 2012
Posts
33
Reaction score
37
I always try to use Moog upper and lower control arms. They are slightly beefier than oem parts. But if you've got a lift then you need to decide whether you're keeping the truck or not. Any lift should be accompanied by legit aftermarket parts


dnt1010

Full Access Member
Joined
Dec 2, 2018
Posts
416
Reaction score
259
Location
Tennessee

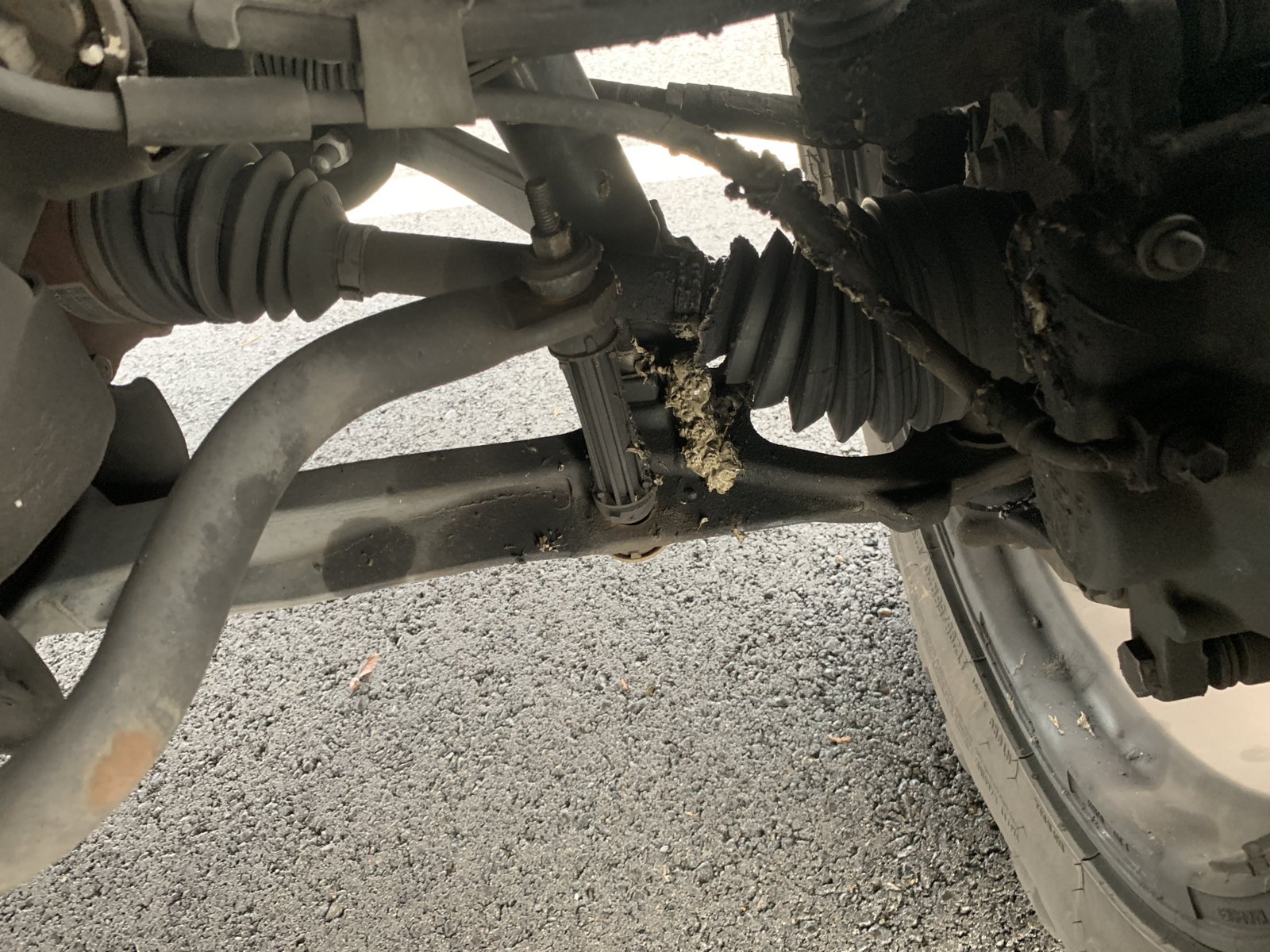

Hmm so it sounds like I need to buy aftermarket UCAs for my 2009 Tahoe with a 3.5" body lift? My drivers side upper ball joint is currently squealing like a stuck pig. I have only had the truck for a couple of months and the previous owner told me that they had laready replaced the ball joints on it so something is bad wrong here. They look like std elcheapo UCAs arms on there to me. Looking at the zone off-road UCA pics it looks like they are built with a certain amount of drop offset already in them. I guess that keeps the ball joint better aligned when running a lift?


HiHoeSilver

Away!
Joined
Feb 28, 2017
Posts
10,918
Reaction score
14,571
Location
Chicago
Hmm so it sounds like I need to buy aftermarket UCAs for my 2009 Tahoe with a 3.5" body lift? My drivers side upper ball joint is currently squealing like a stuck pig. I have only had the truck for a couple of months and the previous owner told me that they had laready replaced the ball joints on it so something is bad wrong here. They look like std elcheapo UCAs arms on there to me. Looking at the zone off-road UCA pics it looks like they are built with a certain amount of drop offset already in them. I guess that keeps the ball joint better aligned when running a lift?

Can't say I've heard a ball joint squeal. You sure it's not the hub?


dnt1010

Full Access Member
Joined
Dec 2, 2018
Posts
416
Reaction score
259
Location
Tennessee
Can't say I've heard a ball joint squeal. You sure it's not the hub?

I have only had the Tahoe for a couple of months the drivers side wheel bearing was replaced a few thousand miles back with a MOOG. Check out this youtube video.
I am going to jack it up tomorrow remove the wheel and detach the tierod end and rotate by hand to make sure that it is JUST the upper ball joint. Previous owner says they replaced both upper and lower ball joints on drivers side about a year ago. The UCA has MS stamped into the arm so whatever brand that is it does not appear to be a quality part that will last. I might be wrong on the body lift maybe it is a suspension lift I have never owned a lifted truck so really not familiar with the terms. I have a copy of the recipet where the previous owner had it lifted with wheels and tires and it simply states 3.5" lift?

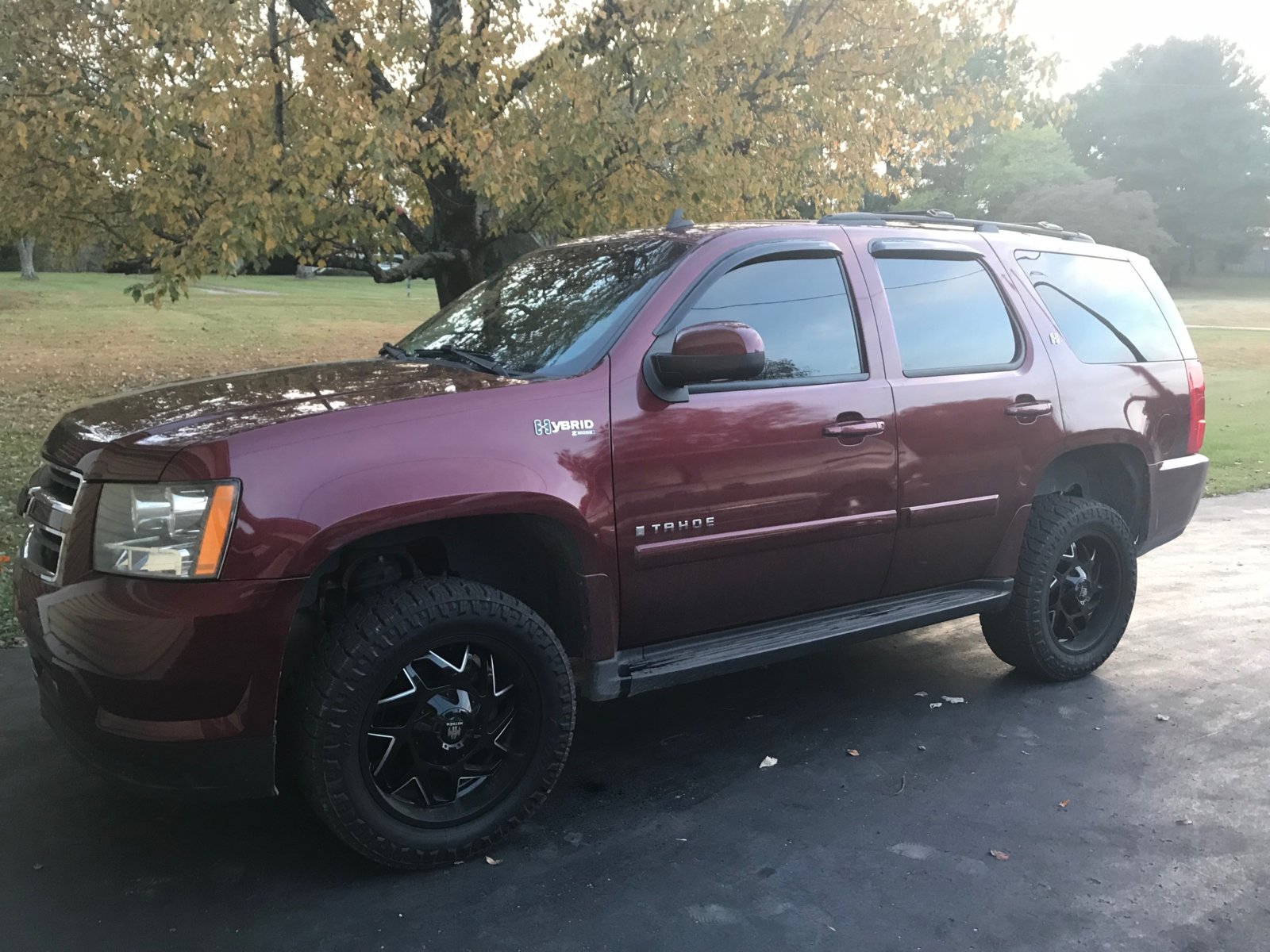

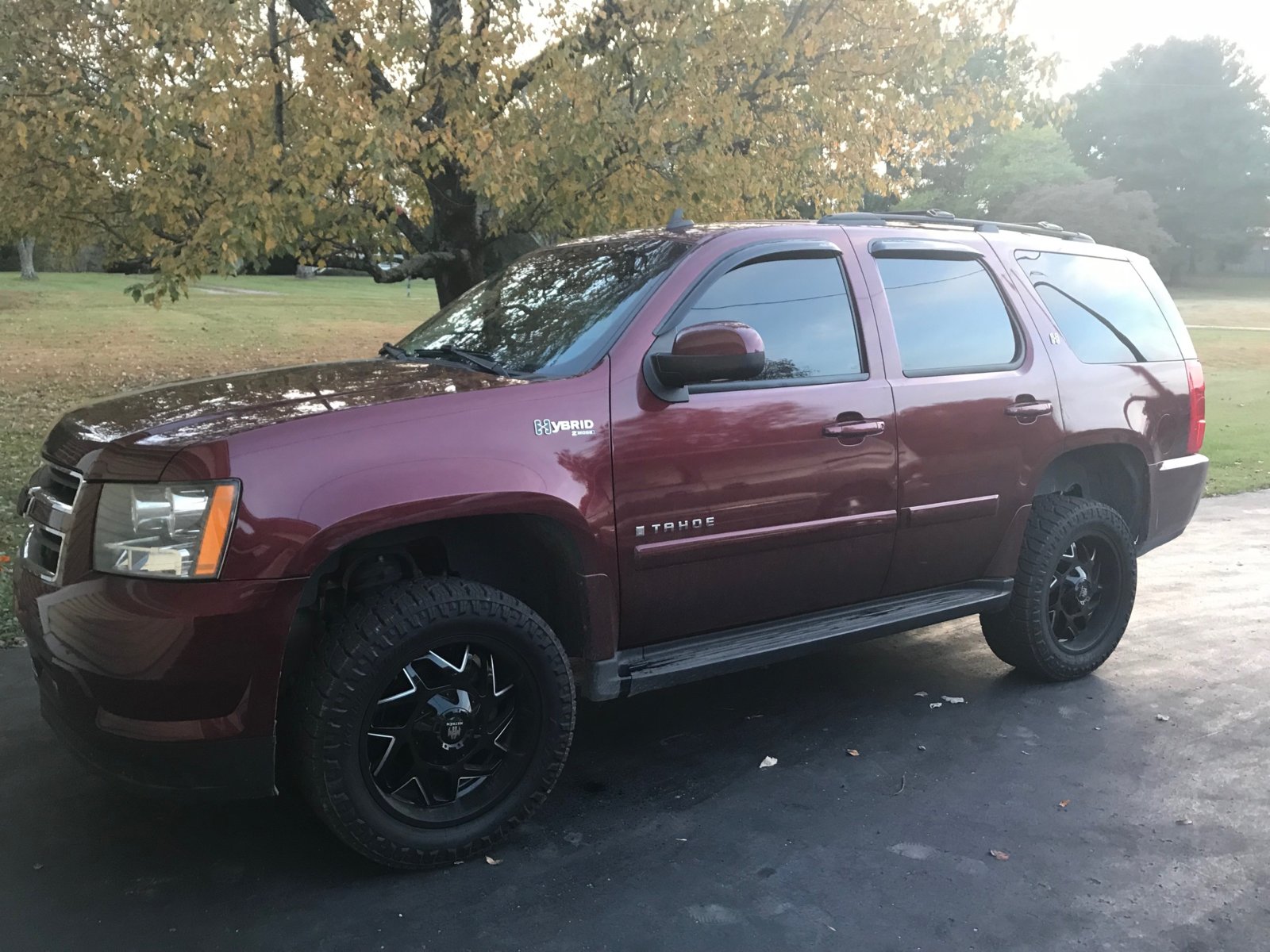

2009 Tahoe Hybrid.jpg
