Running board hardware question - HELP

[Denali Z]

i purchased some running boards for my 08 Denali, they came with the boards and brackets pre mounted but did not come with bolts and washers. I am in need of some help finding all the bolt sizes needed to install. Please help!!



[fiatdale]

Couldnt tell you what thread the stock ones are but the bolts are 13mm head on the stocks.



[Slow5.0]

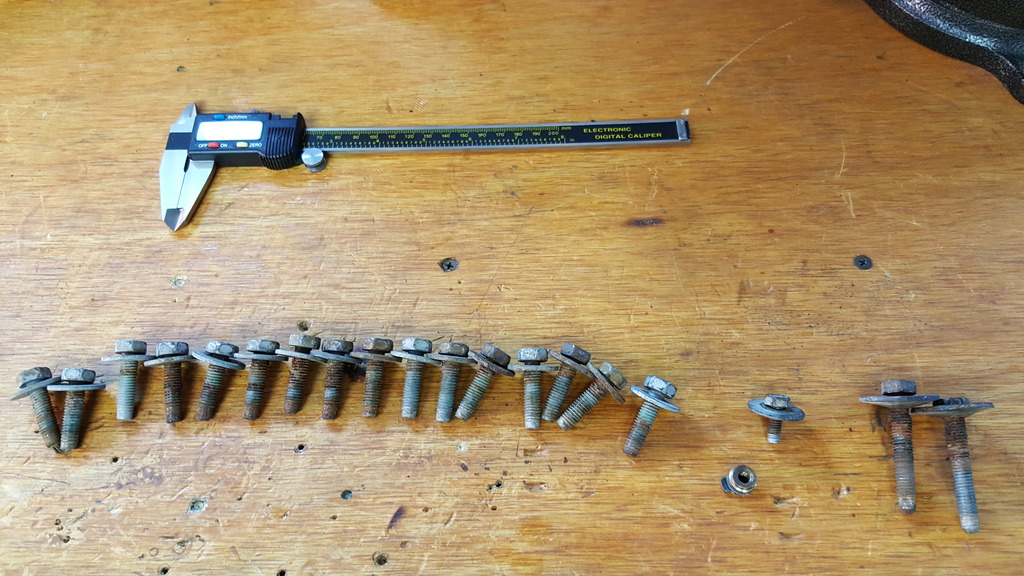

There are 28 bolts, 10 10mm , 16 13mm and 2 13mm with big washer that goes up front. I could find dimensions and thread pitch this weeked

Btw 8 13mm bolts that bolts on the bottom, dont screw them straight up, they have to be angle out. You will see



[Slow5.0]

Here are those bolts you gonna need

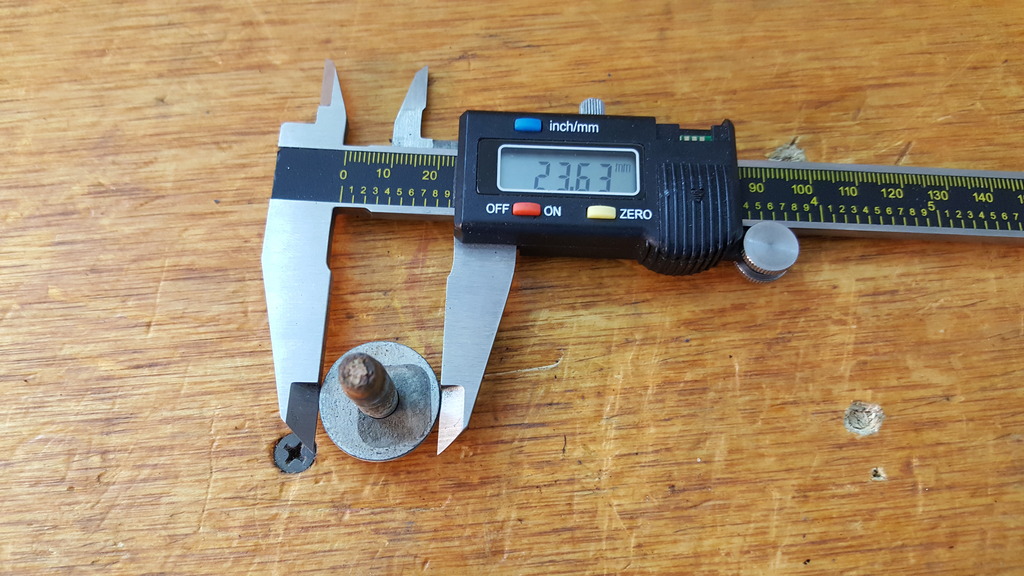

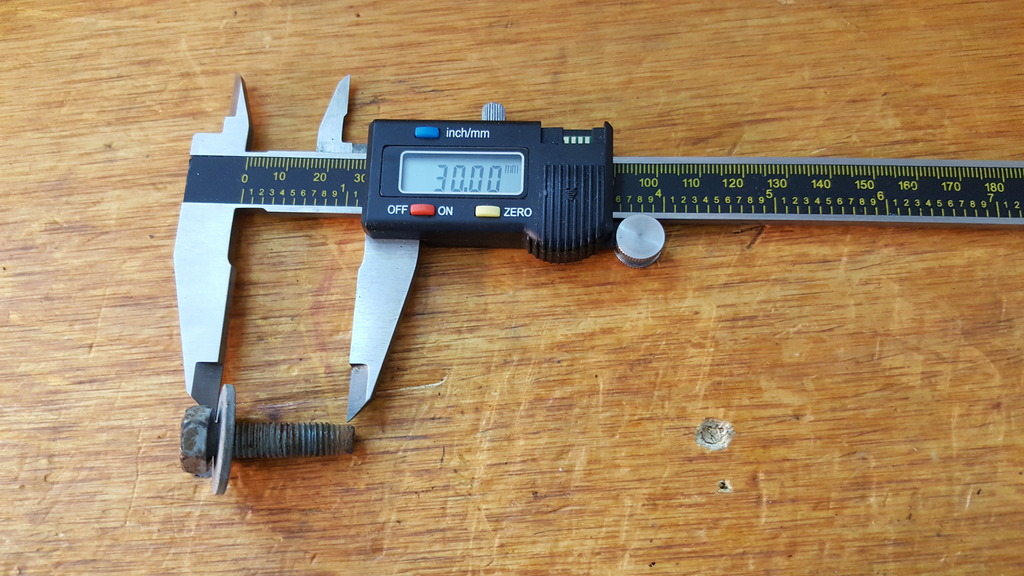

8 x M8-1.25 x 30mm with 24mm washer

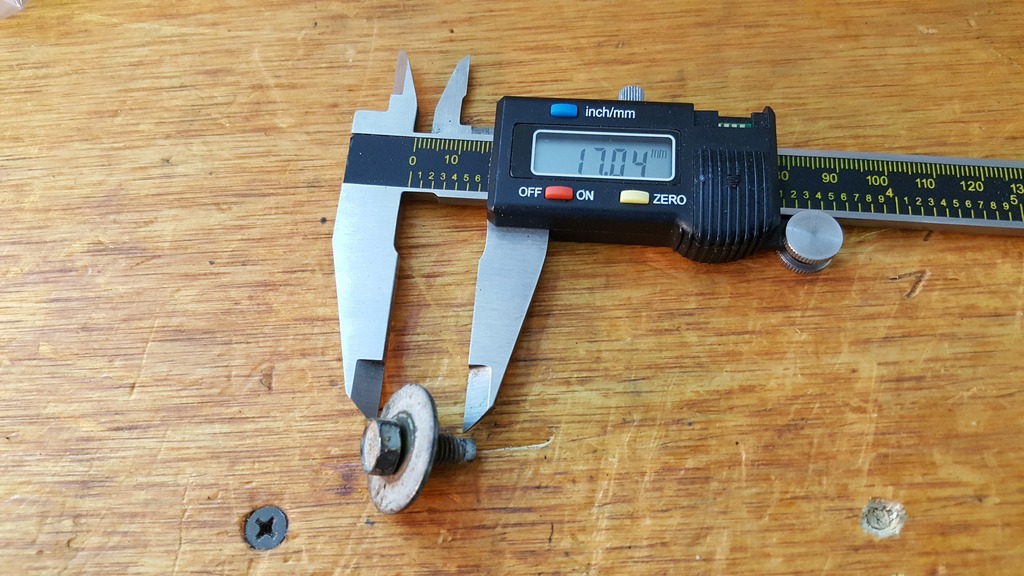

10 x M6-1.00 x 17mm with 24mm washer

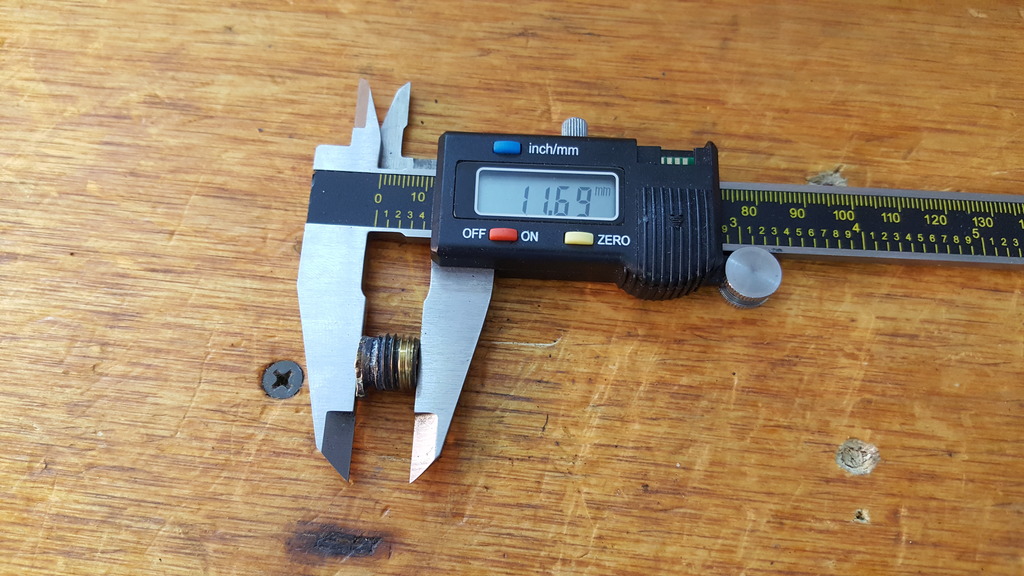

8 x M12- 1.50 stud with M6-1.00 inner threads (these may come w/running boards

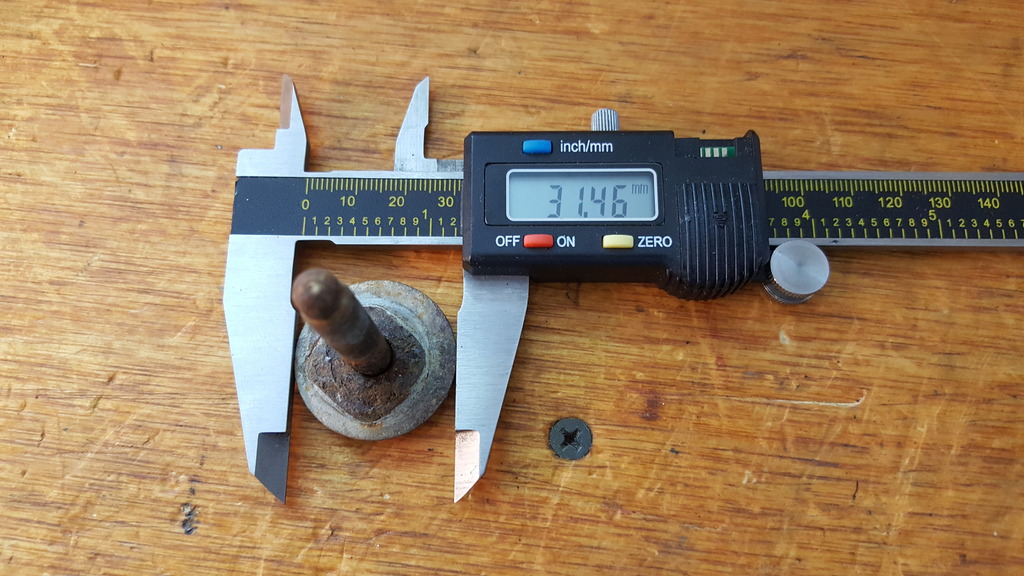

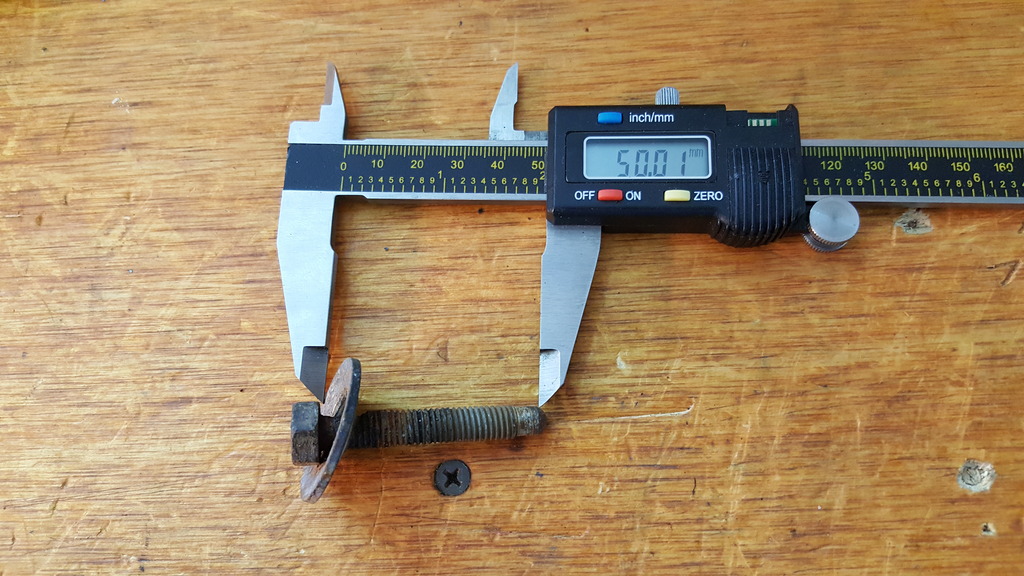

2 x M8-1.25 x 50mm with 31.5mm washer

Make sure you get stainless steel or good grade bolts/washers because they will tend to rust



[Slow5.0]

I hope this helps



[Rocket Man]

Now THAT'S some forum help right there!
