ScanGauge, RPM & Gear Eye Candy

[99TanHoe]

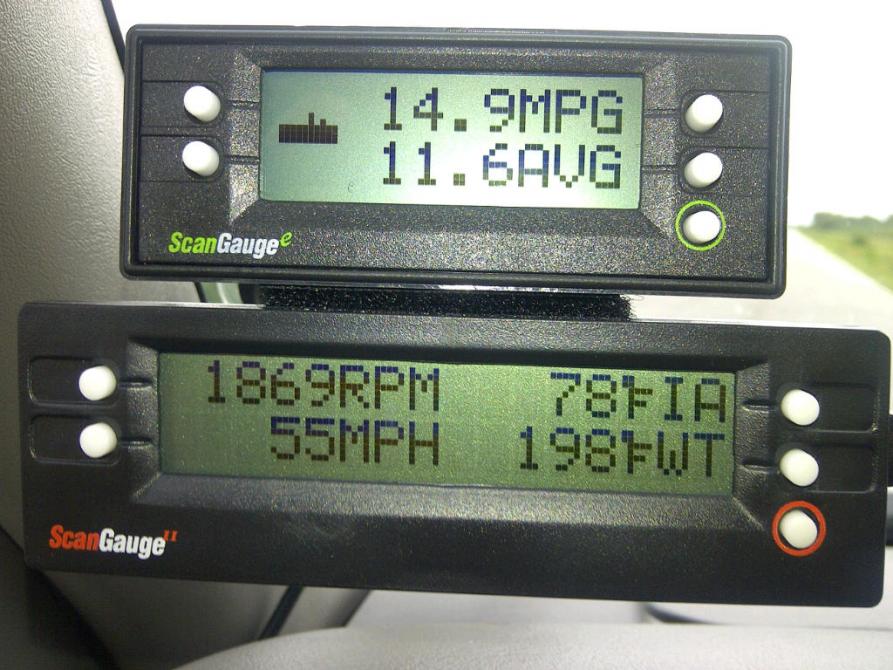

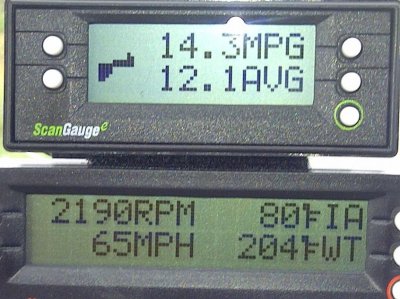

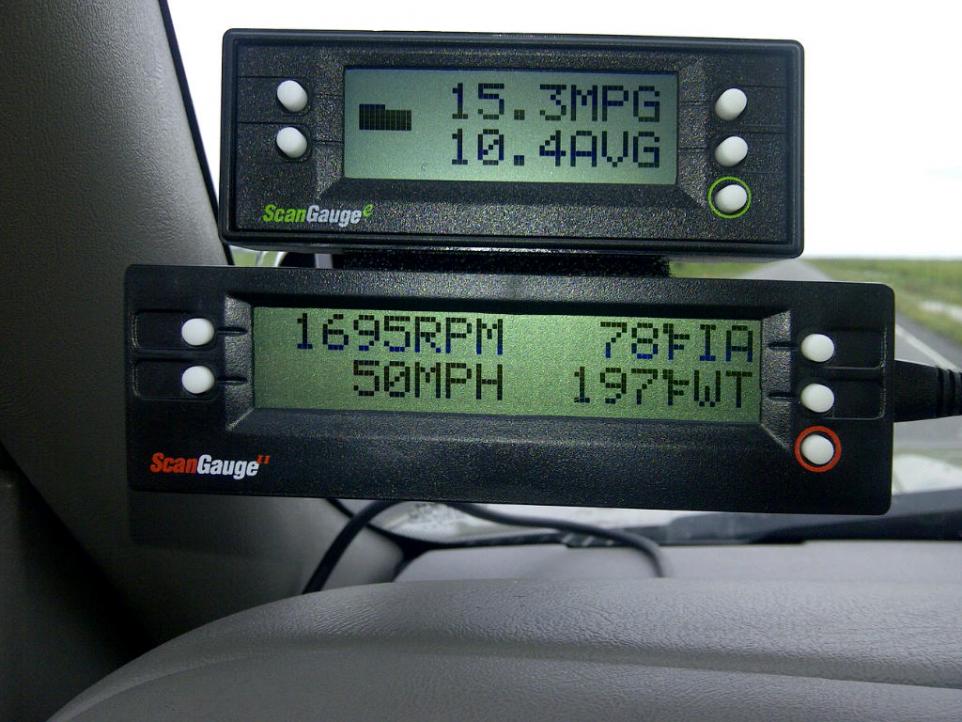

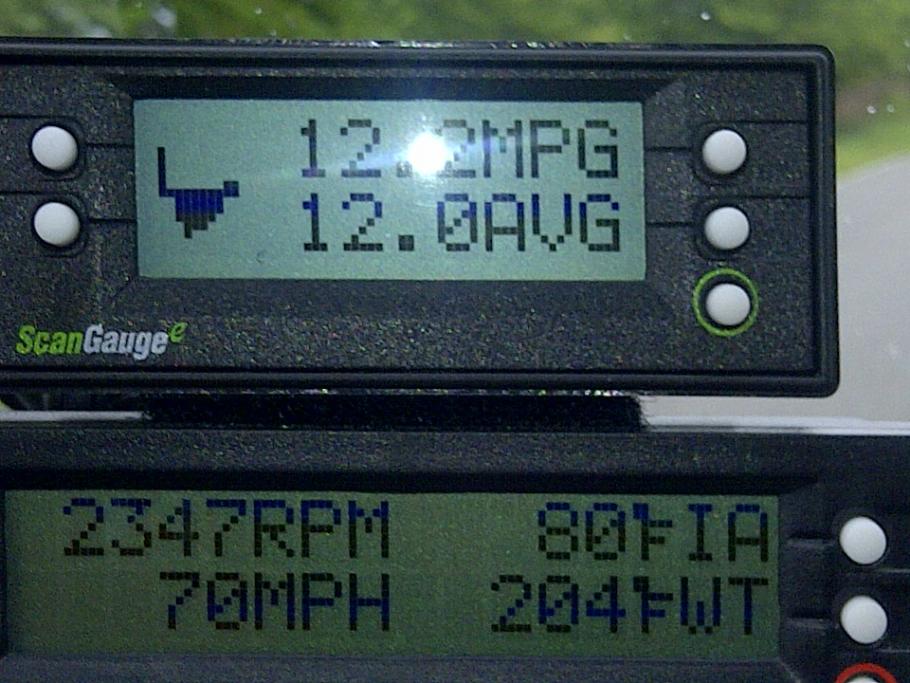

I've asked alot of questions over the last few months but haven't had much to contribute. I'm posting these pictures of Scangauge readings at different speeds to satisfy some curiosities and maybe to help people that are considering gear swaps.

I'm running 4.56 gears with 8.5" wide rims wrapped with 315/70R17 BFG AT's that have about 10,000 miles left on them. This tire/rim combo gives me an actual measured tire height of 33" instead of the 34.3' that the tire metric conversion charts will return.

All of these photo's were taken with the cruise set and speed settled out with the 4L60E Transmission in overdrive. I took these with my phone camera while driving so please excuse any quality issues.



[un4givn85]

nice info
where do you get those?



[SunlitComet]

you can get them from amazon as one place.



[99TanHoe]

Thanks for answering for me Sun, I've been out of it for a few days. Amazon is a good source but I got mine off of Ebay. They were "new in box". If you want to find them on Ebay, just use Scangauge as your search word.
