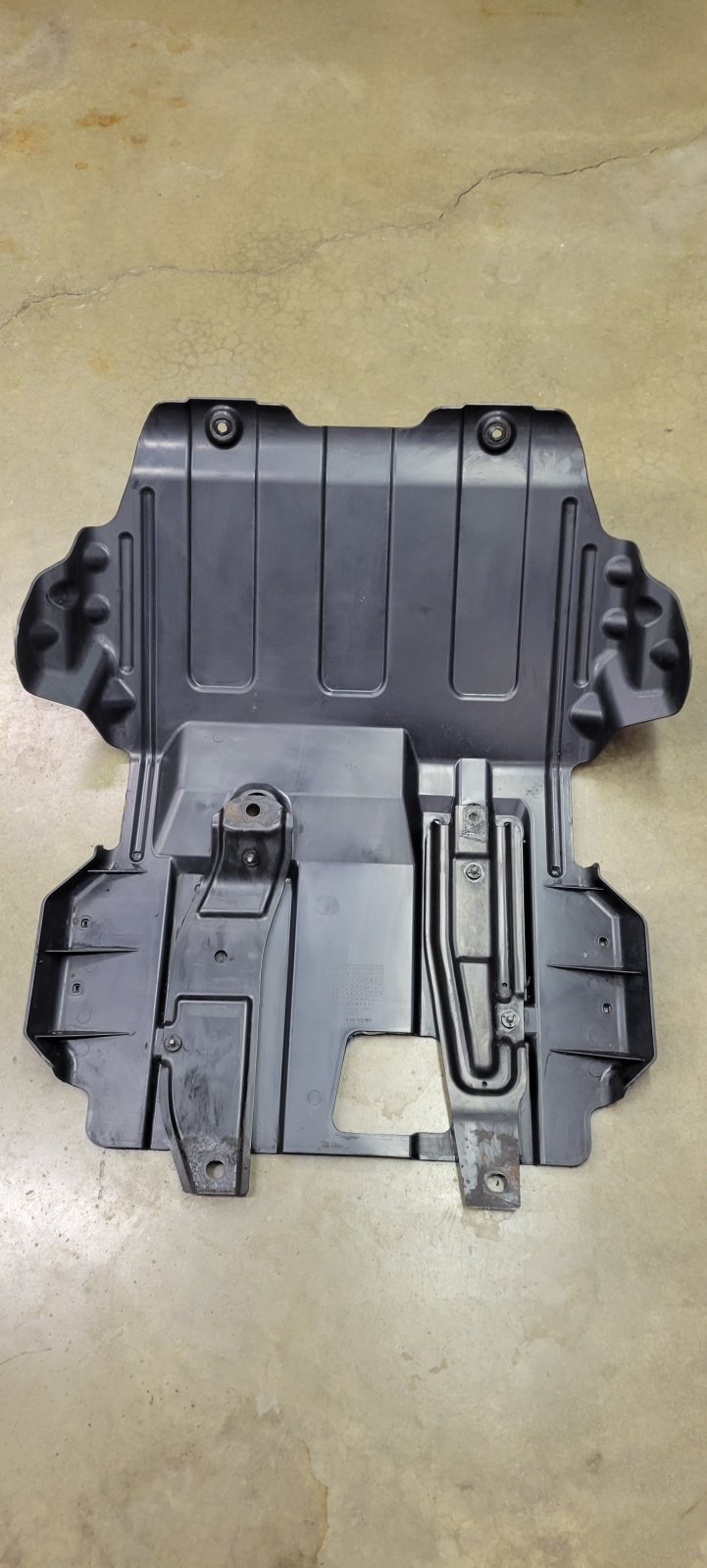

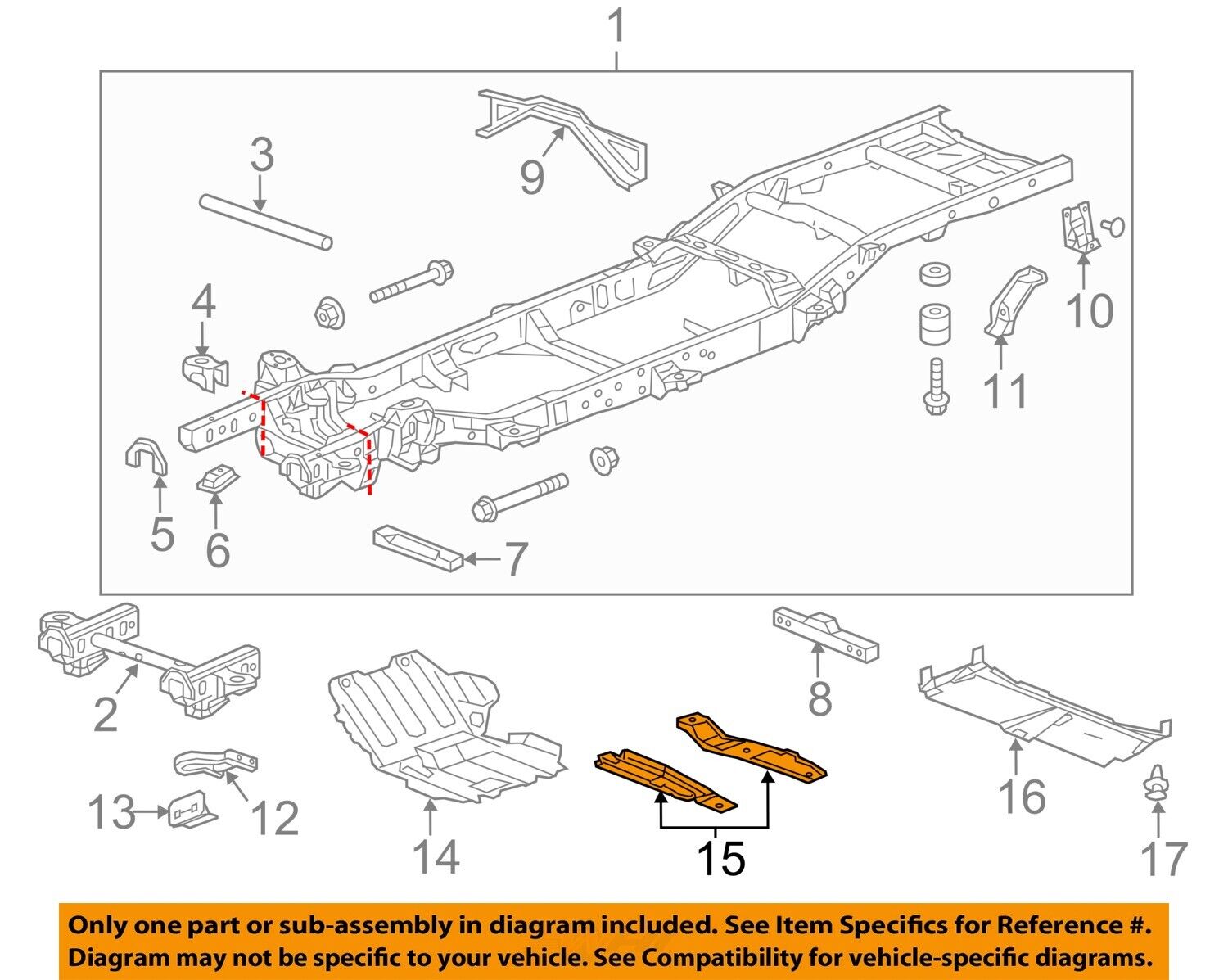

Awesome - THANKS! That's a great deal for $96.10, I just ordered the set of 2. I assume that these 2 skid plates are the same size as the single plastic panel but use 6 bolts instead of 4, and I assume they share the center most 2 bolts? I also ordered the steel transfer case skid plate (part number 20922755) for $33.00. I am not sure how this one mounts yet, if it uses existing hardware or if I'll need to acquire hardware for this skid plate as well.


Blackcar

Full Access Member
Joined
Mar 31, 2018
Posts
697
Reaction score
610
Awesome - THANKS! That's a great deal for $96.10, I just ordered the set of 2. I assume that these 2 skid plates are the same size as the single plastic panel but use 6 bolts instead of 4, and I assume they share the center most 2 bolts? I also ordered the steel transfer case skid plate (part number 20922755) for $33.00. I am not sure how this one mounts yet, if it uses existing hardware or if I'll need to acquire hardware for this skid plate as well.
If transfer plate takes four that would mean total of 6 Part #11518341 for bolts at GM $9.64 each would be $57.84.I went to Lowes and bought 6 body bolts 8x1.25 mm for 1.78 each 1.68 military discount haven't got plates put on yet but should work,https://www.lowes.com/pd/Hillman-8mm-x-25mm-Black-Phosphate-Coarse-Thread-Body-Bolt/3013022


BlaineBug

Full Access Member
Joined
Dec 29, 2019
Posts
1,179
Reaction score
667
Location
Clown World
The two front plates require 8 bolts and the transfer case calls for 4; however, I have read of some members using 3.
Do you know if all of the bolts are already present for the 2 front skid plates or if more will need to be purchased? I did some research on the rear plate for the transfer case and found a set of 4 aftermarket bolts with the correct part number for around $20 on eBay. I am not sure if these are the same bolts for the front skid plates or not.


BlaineBug

Full Access Member
Joined
Dec 29, 2019
Posts
1,179
Reaction score
667
Location
Clown World
If transfer plate takes four that would mean total of 6 Part #11518341 for bolts at GM $9.64 each would be $57.84.I went to Lowes and bought 6 body bolts 8x1.25 mm for 1.78 each 1.68 military discount haven't got plates put on yet but should work,https://www.lowes.com/pd/Hillman-8mm-x-25mm-Black-Phosphate-Coarse-Thread-Body-Bolt/3013022


These are the 4 bolts i found on eBay which are aftermarket but are a replacement for the OEM part number 11518341. These are said to work for the transfer case skid plate as per another GM Parts Website, although I am not sure if they are the same bolts required for the front skid plates or not. They are selling for $17.99 + tax on eBay. There must be a reason that the thread pitch isn't listed otherwise I too would just go to the hardware store and buy some bolts for mere dollars.


Blackcar

Full Access Member
Joined
Mar 31, 2018
Posts
697
Reaction score
610
View attachment 386977

These are the 4 bolts i found on eBay which are aftermarket but are a replacement for the OEM part number 11518341. These are said to work for the transfer case skid plate as per another GM Parts Website, although I am not sure if they are the same bolts required for the front skid plates or not. They are selling for $17.99 + tax on eBay. There must be a reason that the thread pitch isn't listed otherwise I too would just go to the hardware store and buy some bolts for mere dollars.
The holes in frame are not tapped so that why I went with body bolts they will self-thread and also have large washer on them like factory bolts in plastic cover. The bolts you are looking at I would run bolts that came with vehicle first take out then install bolts you are looking at.


Doubeleive

Wes
Supporting Member
Joined
Nov 7, 2017
Posts
26,040
Reaction score
38,889
Location
Stockton, Ca.
the oem bolts are self-taping, usually nothing else will fit. you might get the aftermarket bolts to fit after inserting oem self taping bolt first.
other than that DO NOT OVER-TIGHTEN, they will strip easily and then you are stuck trying a find a larger bolt which will also not fit.
get them snug and walk away.


BlaineBug

Full Access Member
Joined
Dec 29, 2019
Posts
1,179
Reaction score
667
Location
Clown World
The holes in frame are not tapped so that why I went with body bolts they will self-thread and also have large washer on them like factory bolts in plastic cover. The bolts you are looking at I would run bolts that came with vehicle first take out then install bolts you are looking at.

I just found a post on another forum, gm-trucks.com, that states the factory skid plate bolts are the following;

11518341 - BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ENG SHLD)

M10 = 10mm diameter
1.5 = thread pitch
25 = 25 mm length
28 OD = 28mm diameter SEMS washer
TAP = Tapping (self tapping)
TR-PT = Tapered Point

It seems as though your 8mm bolts are too small and lowes does not carry a 10mm option.


Blackcar

Full Access Member
Joined
Mar 31, 2018
Posts
697
Reaction score
610
I just found a post on another forum, gm-trucks.com, that states the factory skid plate bolts are the following;

11518341 - BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ENG SHLD)

M10 = 10mm diameter
1.5 = thread pitch
25 = 25 mm length
28 OD = 28mm diameter SEMS washer
TAP = Tapping (self tapping)
TR-PT = Tapered Point

It seems as though your 8mm bolts are too small and lowes does not carry a 10mm option.
Yes, like I said I haven't tried yet. I've been going to pull a bolt and check but have had surgery and have had time to buy things but not installed yet. If you strip out, I think you have to go to 10 mm.


BlaineBug

Full Access Member
Joined
Dec 29, 2019
Posts
1,179
Reaction score
667
Location
Clown World
Yes, like I said I haven't tried yet. I've been going to pull a bolt and check but have had surgery and have had time to buy things but not installed yet. If you strip out, I think you have to go to 10 mm.

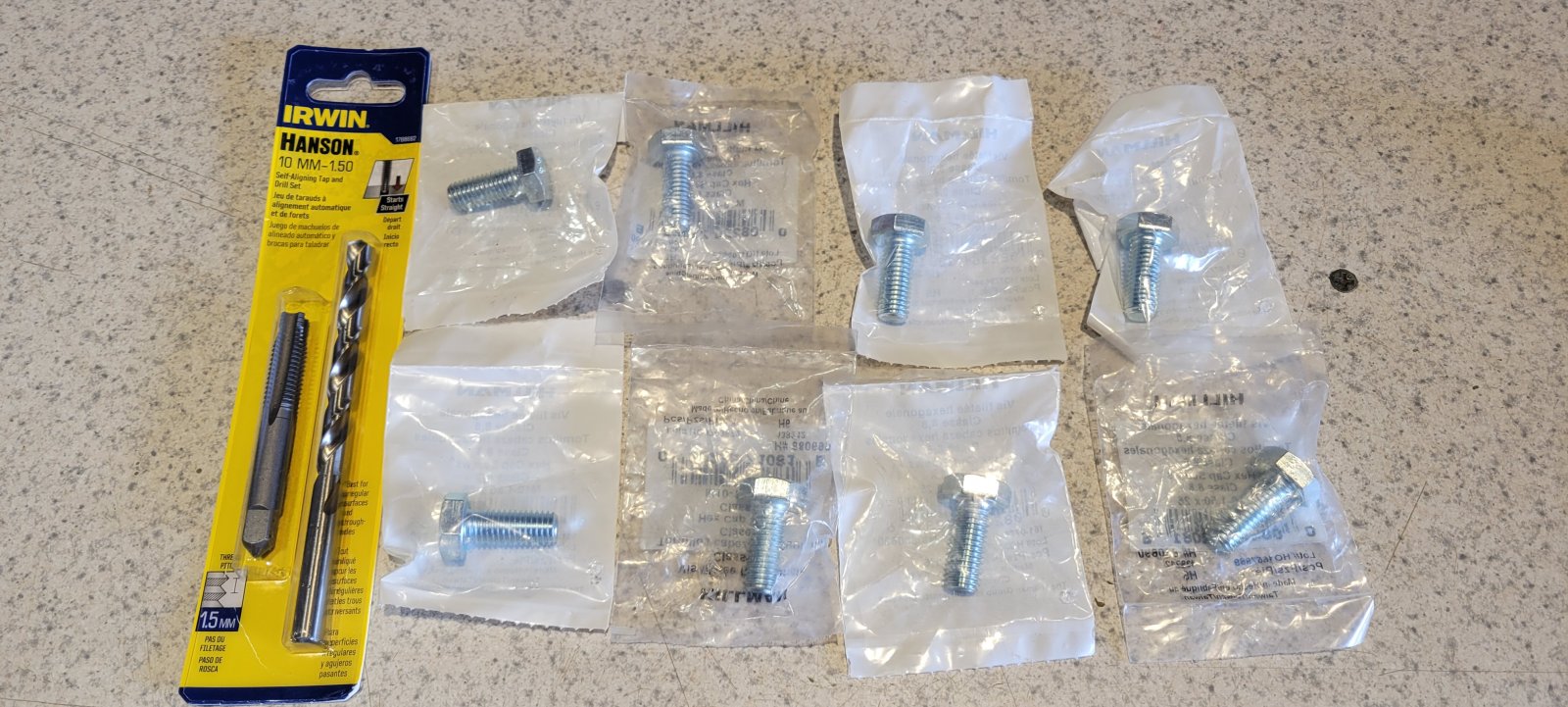

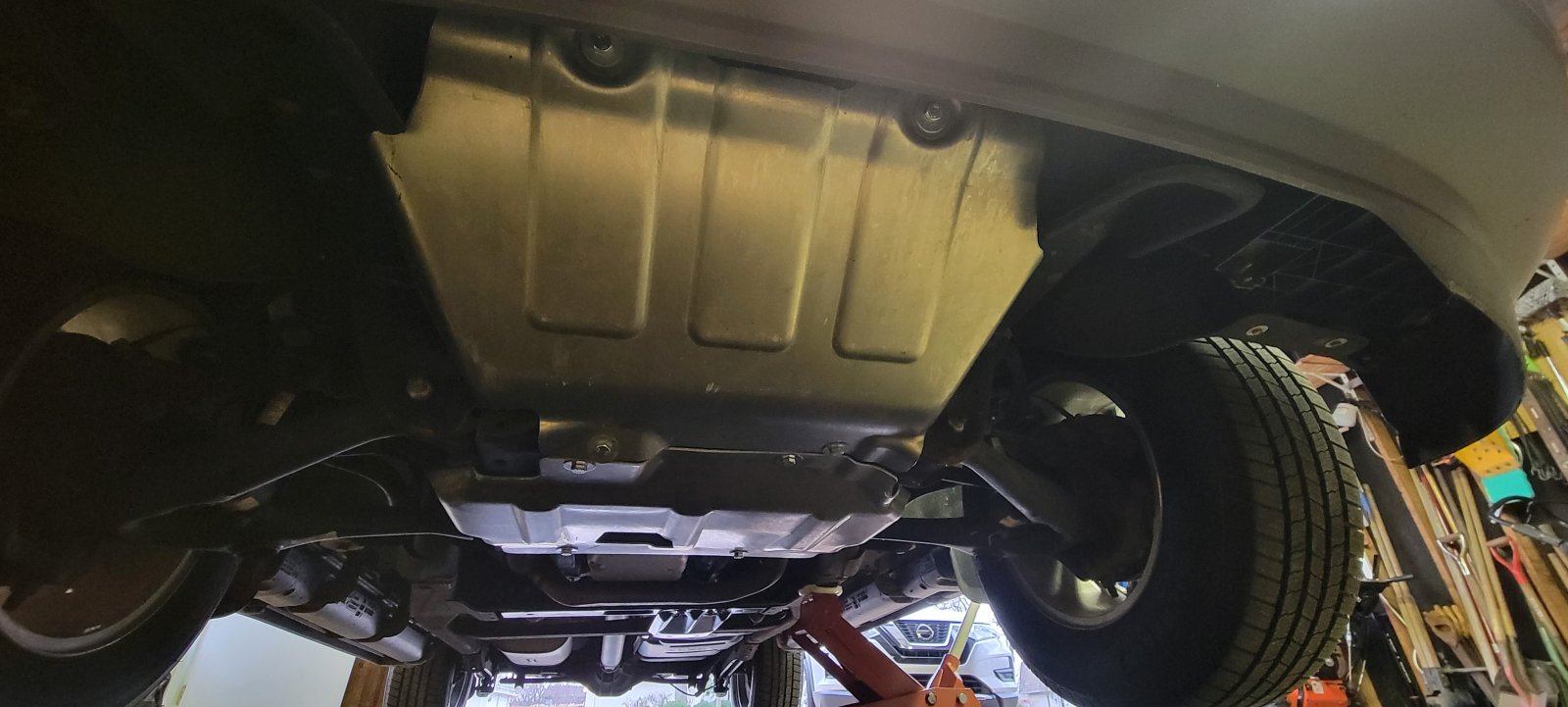

I think I'll get a 10mm tap and some hardware store bolts and send the $20 4-pack bolts back!


Blackcar

Full Access Member
Joined
Mar 31, 2018
Posts
697
Reaction score
610
You could pull one of bolts in plastic cover take to hardware I think you will find they are 8mm that way if you strip threads you can go to 10mm.Good luck
