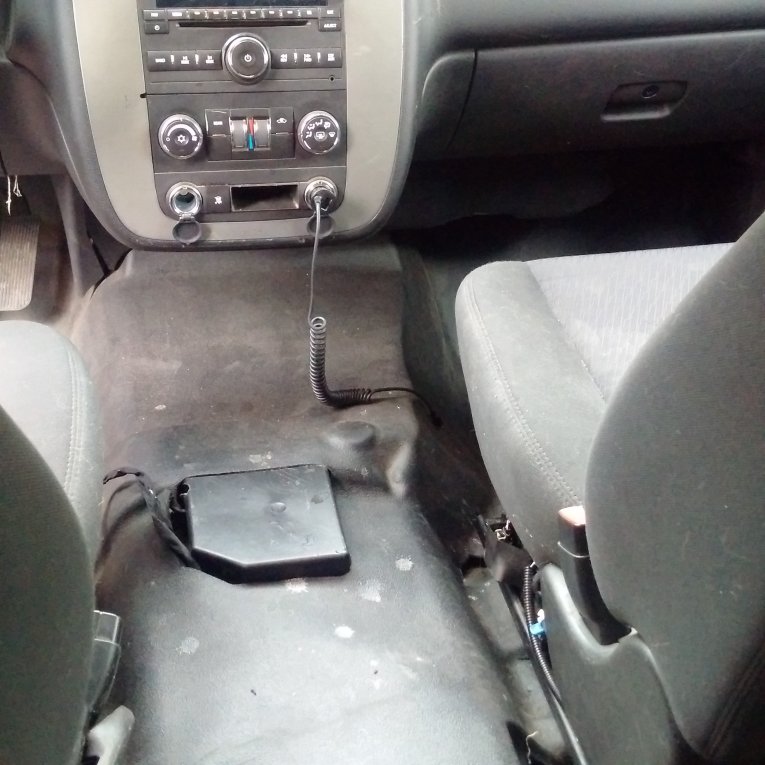

When I got my SSV from the auction it was pretty stripped down inside. The most noticeable things were the large empty space between the two front seats and the rubber floor. While I liked both of these things, not having an arm rest was getting on my nerves so i started looking for consoles. Ebay had plenty of the three cup holder type jump seats for NNBS's. However the pricing has been very arrogant. $400 plus a hundred for shipping. Screw them. I've noticed that not too many were being sold.

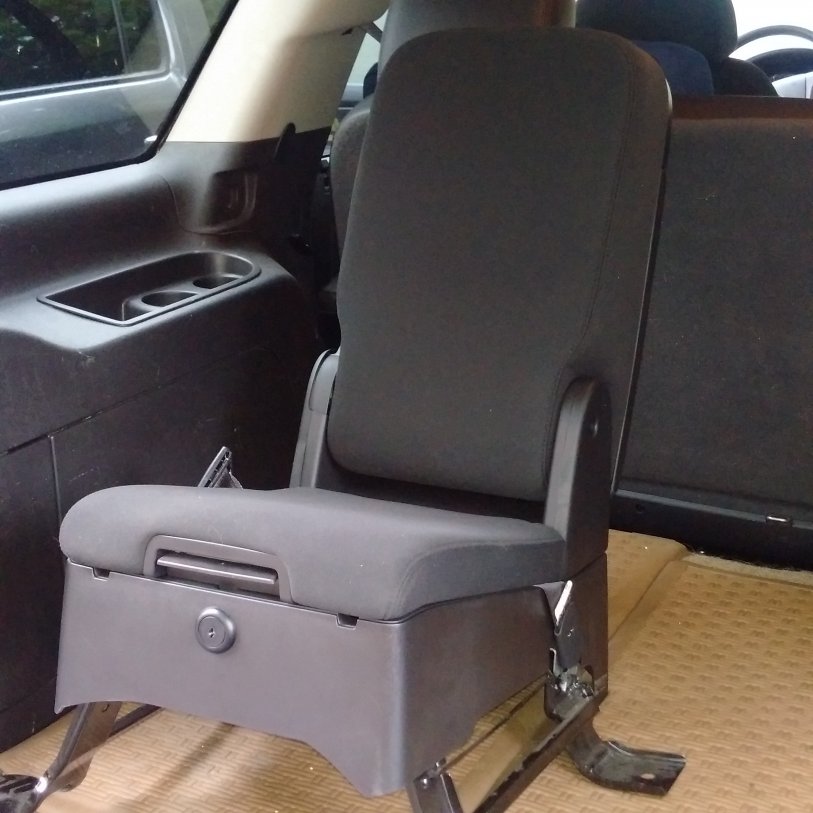

I finally find a local (100 miles away) municipality auction that had a small lot of crap which contained a new, unused jump seat OEM. I won the auction for $147 and picked it up this morning. It came from a 2013 Silverado but everything should fit, right? Haha....

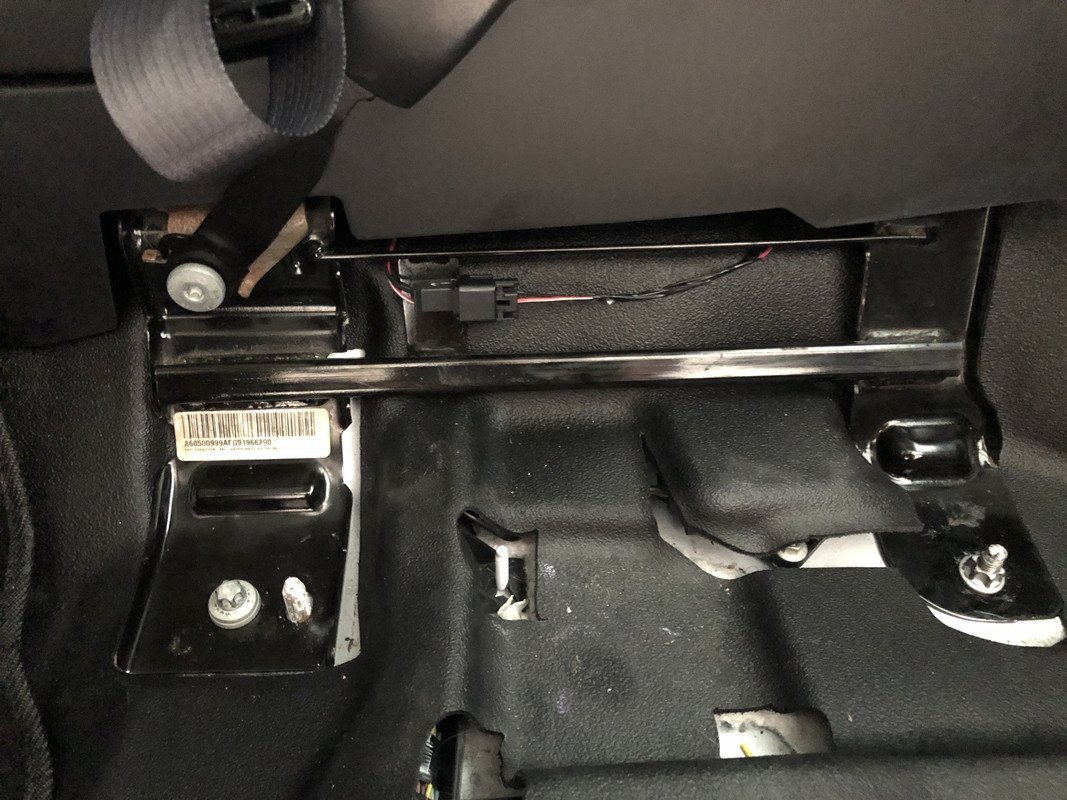

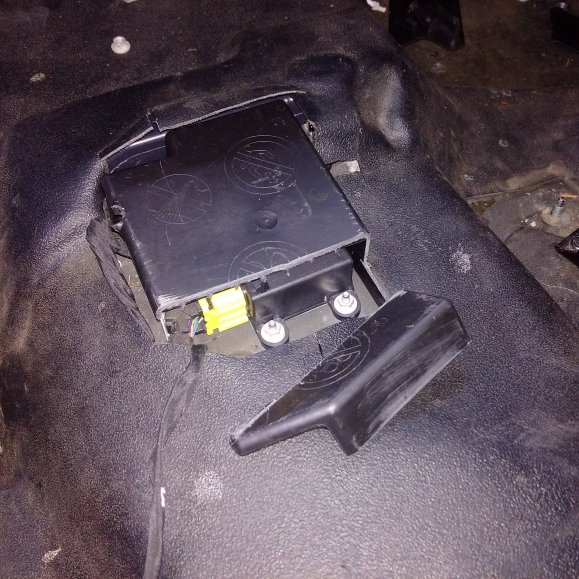

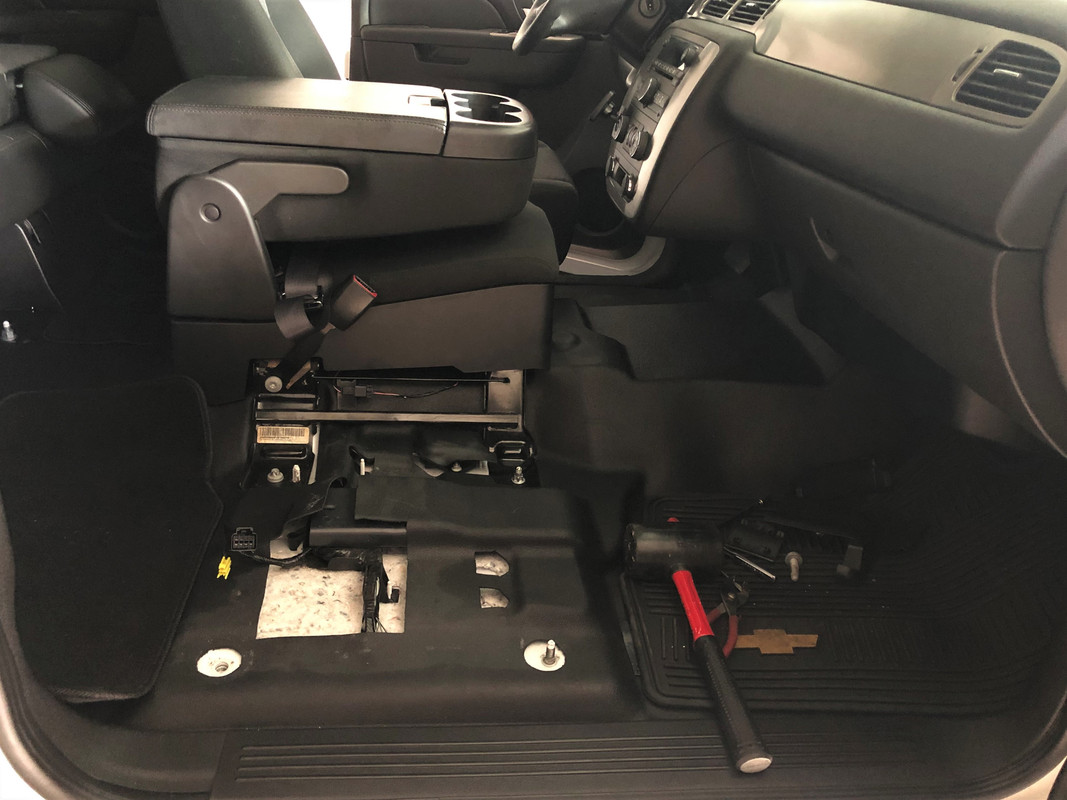

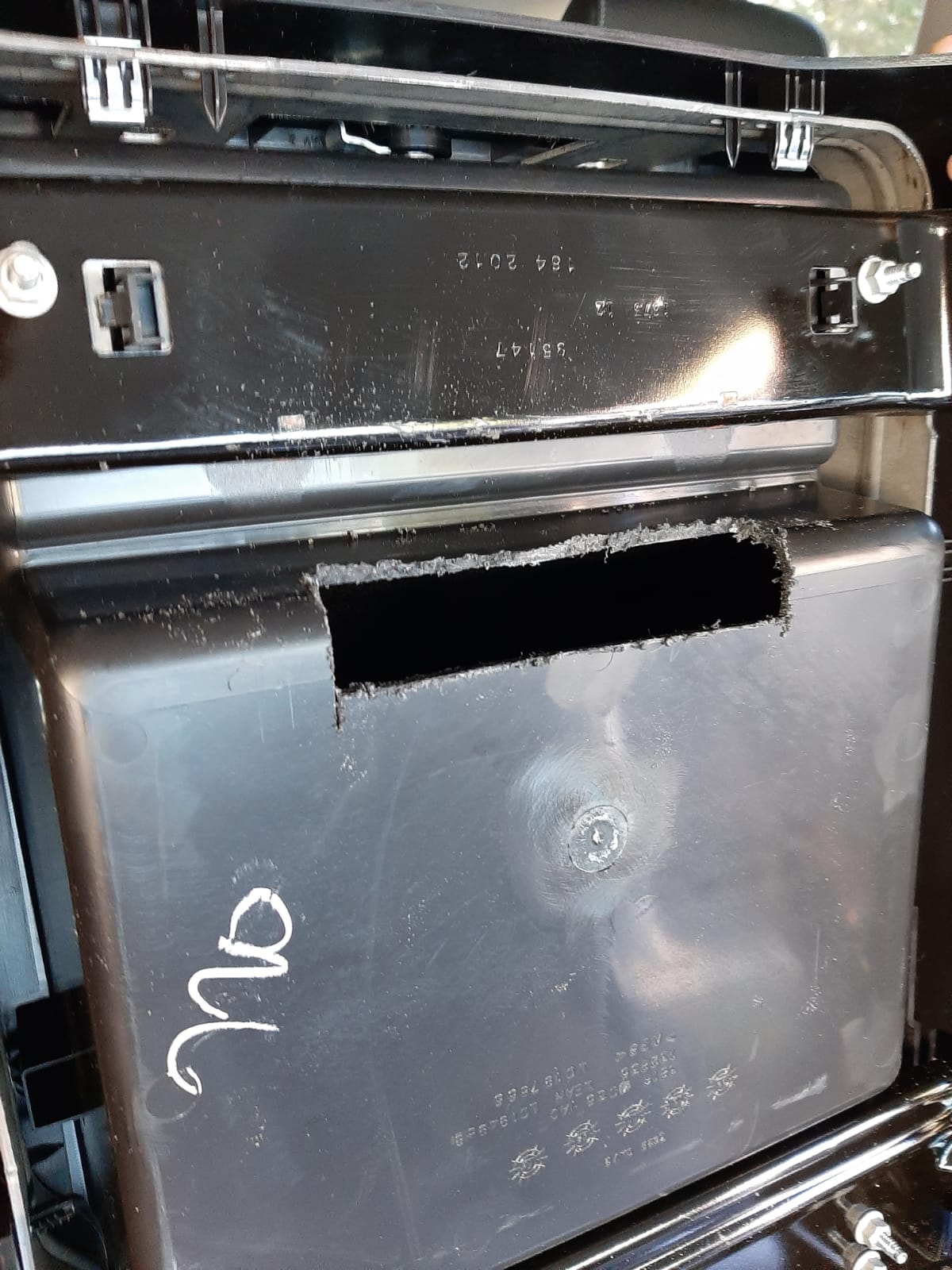

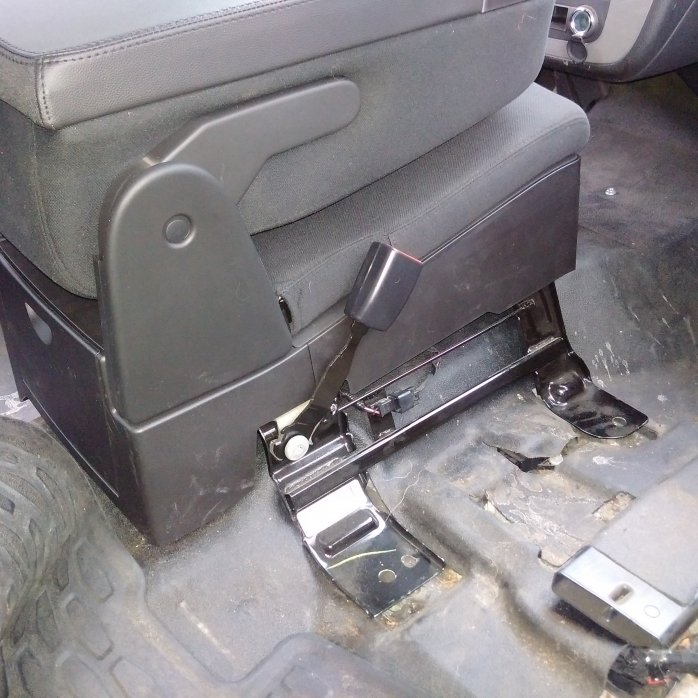

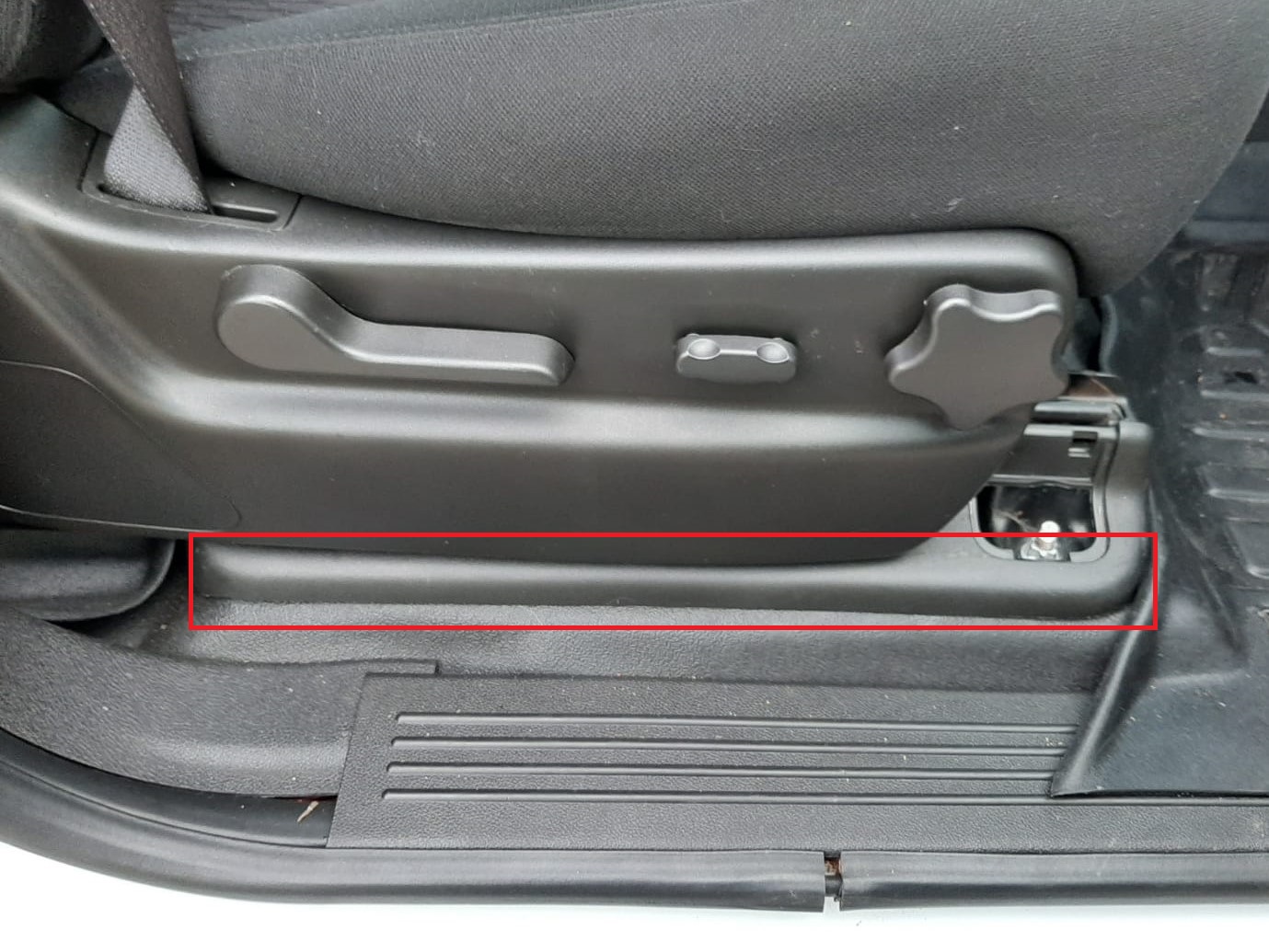

So I get into things, pull the front seats out. I put the jump seat in place and it's a bit wonky. The bottom part of the seat compartment tray is hitting against the plastic cover that goes over the air bag deployment module (or whatever you want to call it). It was only in the way by about an inch so out comes Mr. hacksaw. Five minutes and two cuts later the console fit perfectly. The icing on the cake was that I was able to fish out a pig tail that connected directly to the power outlet in the console.

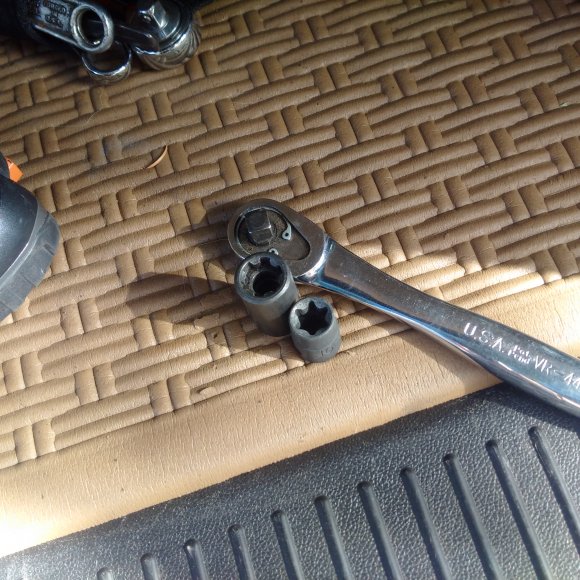

If you are go go pull the seats you will need two sizes of E-Torx sockets. There is a larger size for ones in the front of the seats and a smaller one in the back. The smaller one you can get in a set at Harbor Freight and sells for about 8 bucks. The larger one I ordered on ebay for about ten bucks. It's a Vim tool V620 GM seat track socket. It works great and doesn't damage the external E-Torx nut. I will be posting more the of the photos in my albums later.

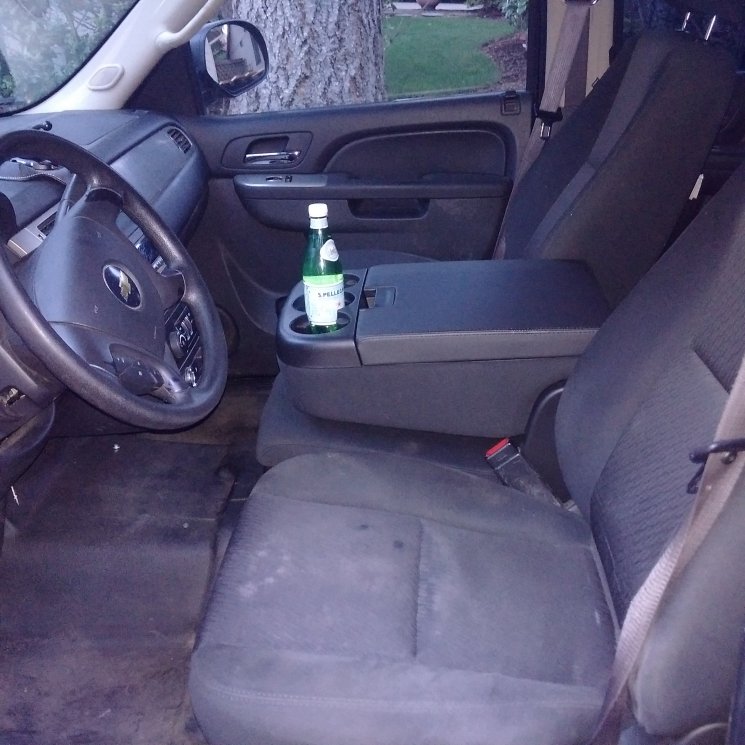

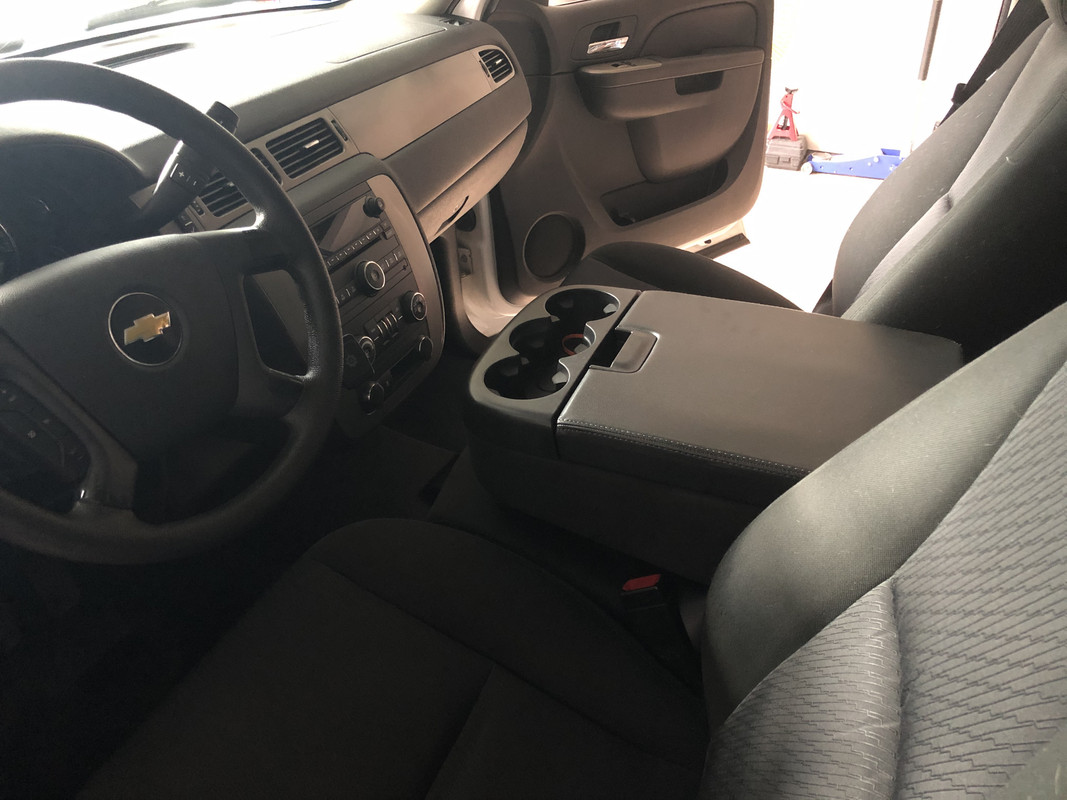

So bottom line, I went from zero to five cup holders in one hour. Lol.
Yes, yes, I know. I will be cleaning the seats later. Problem is three kids and a German Shephard...
I finally find a local (100 miles away) municipality auction that had a small lot of crap which contained a new, unused jump seat OEM. I won the auction for $147 and picked it up this morning. It came from a 2013 Silverado but everything should fit, right? Haha....
So I get into things, pull the front seats out. I put the jump seat in place and it's a bit wonky. The bottom part of the seat compartment tray is hitting against the plastic cover that goes over the air bag deployment module (or whatever you want to call it). It was only in the way by about an inch so out comes Mr. hacksaw. Five minutes and two cuts later the console fit perfectly. The icing on the cake was that I was able to fish out a pig tail that connected directly to the power outlet in the console.
If you are go go pull the seats you will need two sizes of E-Torx sockets. There is a larger size for ones in the front of the seats and a smaller one in the back. The smaller one you can get in a set at Harbor Freight and sells for about 8 bucks. The larger one I ordered on ebay for about ten bucks. It's a Vim tool V620 GM seat track socket. It works great and doesn't damage the external E-Torx nut. I will be posting more the of the photos in my albums later.
So bottom line, I went from zero to five cup holders in one hour. Lol.
Yes, yes, I know. I will be cleaning the seats later. Problem is three kids and a German Shephard...
