Bi-Color LED Switchback Turn Signal DRLs

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

vt_hokie2008

Full Access Member
Joined
Mar 5, 2012
Posts
393
Reaction score
9
Location
VA
I just saw your recent postings here. Have you made an attempt on any of these or are you still in the thought process?

I haven't tried it yet due to not being home on weekends (best time to do this stuff) recently and I need more switchbacks (have 2 currently). I'd like to get the idea solidified before I pull the bumper off again, but I figure I'll just be pulling it off and trying things to see what works. I already have the sockets, just gotta buy bulbs and get to work.


jebt2921

Full Access Member
Joined
Apr 4, 2013
Posts
251
Reaction score
2
Location
AR
I’m going to sit down with a friend auto mechanic/engineer and try to layout a wiring diagram as well. Keep me posted on anything new you come up with. I'm almost inclined to just bypass the DRL's and have to turn them on manually to run during the day.

I haven't tried it yet due to not being home on weekends (best time to do this stuff) recently and I need more switchbacks (have 2 currently). I'd like to get the idea solidified before I pull the bumper off again, but I figure I'll just be pulling it off and trying things to see what works. I already have the sockets, just gotta buy bulbs and get to work.


vt_hokie2008

Full Access Member
Joined
Mar 5, 2012
Posts
393
Reaction score
9
Location
VA
I’m going to sit down with a friend auto mechanic/engineer and try to layout a wiring diagram as well. Keep me posted on anything new you come up with. I'm almost inclined to just bypass the DRL's and have to turn them on manually to run during the day.

That seems pretty easy to do assuming enough power is provided for both bulbs (which I would think it should be given they're both LEDs). Perhaps I'll order the switchbacks and get to work. I'm planning to get them from here:

http://www.corvettemods.com/Corvette-C6-DRL-Switchback-LEDS_p_5537.html

Lifetime warrantied. My current ones are from VLEDs and they're screwing up now with erratic behavior.


jebt2921

Full Access Member
Joined
Apr 4, 2013
Posts
251
Reaction score
2
Location
AR
Nice link. I was looking at VLEDs as well but these seem pretty legit.

On a different note, I haven't upgrading my lo's yet (or hi's for that matter) and ran across your thread as to installing yours (which look great). I know it's probably a pain but could you possibly send me a list of what you bought to do yours and specs? I'll PM you my email just in case you'd be willing.

The problem is there's too much online in regards to what you need to buy for a good setup and I'd rather go directly to the source of someone who's done it multiple times.

That seems pretty easy to do assuming enough power is provided for both bulbs (which I would think it should be given they're both LEDs). Perhaps I'll order the switchbacks and get to work. I'm planning to get them from here:

http://www.corvettemods.com/Corvette-C6-DRL-Switchback-LEDS_p_5537.html

Lifetime warrantied. My current ones are from VLEDs and they're screwing up now with erratic behavior.


vt_hokie2008

Full Access Member
Joined
Mar 5, 2012
Posts
393
Reaction score
9
Location
VA
Can do, shoot me your email and I'll send you what my experiences have been and my advice due to those.

Sent from my SM-N900V using Tapatalk


jebt2921

Full Access Member
Joined
Apr 4, 2013
Posts
251
Reaction score
2
Location
AR
Not sure if my other PM went through but I sent it again just in case. Thanks again.

FYI I've got a hybrid tahoe for any reference needed. I've installed iPod/Bluetooth/USB integration as well as aftermarket roof rack. Lights are next in the agenda.

Can do, shoot me your email and I'll send you what my experiences have been and my advice due to those.

Sent from my SM-N900V using Tapatalk


vt_hokie2008

Full Access Member
Joined
Mar 5, 2012
Posts
393
Reaction score
9
Location
VA
Got your messages, Tapatalk told me after the fact haha. I'll send out the info tomorrow, will be easier on a computer rather than my phone

Sent from my SM-N900V using Tapatalk

Last edited:

jebt2921

Full Access Member
Joined
Apr 4, 2013
Posts
251
Reaction score
2
Location
AR
So I've been doing some research on making both the DRL and turn signals on either side operate as both functions at the same time. Here's my thinking:

1) eliminate the DRL altogether.
2) splice in a new piece that's the same as the turn signal so that there are now two turn signals on both sides
3) use a white/amber AO switchback LED (http://autolumination.com/switchback.html) with resistors.
4) Install both blinker LED's in both the normal DRL spot as well as the normal blinker spot on both sides.

Isn't that problem solved? My understanding is that these switchback AO LEDs are lit as white always, then when the turn signal is engaged it blinks Amber - Off - Amber - Off then back to just white once the turn signal is not being used anymore. The mechanics are electric and built into the LED bulb itself.

Please correct me if I'm way off here. The only thing is you might have to turn them on initially when you start the car somehow to function as white for the DRL (or maybe these automatically turn on - I'm not sure about that yet). The last step that could possibly work is splicing in the DRL function WITH the above.

too much coffee this morning!!!

---------- Post added at 10:09 AM ---------- Previous post was at 09:42 AM ----------

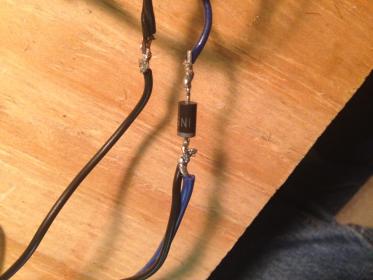

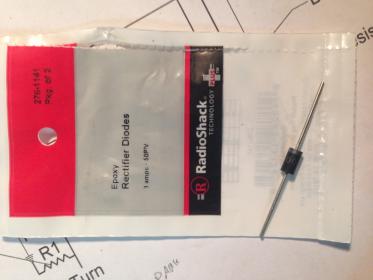

In order to have them turn on auto like the DRL are supposed to function might need four diodes for each side to keep the DLR and turn from back feeding to other circuits. My engineer dad says he's got it figured out but I've heard that before :)


vt_hokie2008

Full Access Member
Joined
Mar 5, 2012
Posts
393
Reaction score
9
Location
VA
So I've been doing some research on making both the DRL and turn signals on either side operate as both functions at the same time. Here's my thinking:

1) eliminate the DRL altogether.
2) splice in a new piece that's the same as the turn signal so that there are now two turn signals on both sides
3) use a white/amber AO switchback LED (http://autolumination.com/switchback.html) with resistors.
4) Install both blinker LED's in both the normal DRL spot as well as the normal blinker spot on both sides.

Isn't that problem solved? My understanding is that these switchback AO LEDs are lit as white always, then when the turn signal is engaged it blinks Amber - Off - Amber - Off then back to just white once the turn signal is not being used anymore. The mechanics are electric and built into the LED bulb itself.

Please correct me if I'm way off here. The only thing is you might have to turn them on initially when you start the car somehow to function as white for the DRL (or maybe these automatically turn on - I'm not sure about that yet). The last step that could possibly work is splicing in the DRL function WITH the above.

too much coffee this morning!!!

---------- Post added at 10:09 AM ---------- Previous post was at 09:42 AM ----------

In order to have them turn on auto like the DRL are supposed to function might need four diodes for each side to keep the DLR and turn from back feeding to other circuits. My engineer dad says he's got it figured out but I've heard that before :)

If the LEDs work that simply, then this could work. What I don't know is if the park lights are on and then you signal, does the park like wire lose power or does the LED switch to signal just from the signal being turned on?


Labman2012

Full Access Member
Joined
Apr 8, 2013
Posts
115
Reaction score
0
If the LEDs work that simply, then this could work. What I don't know is if the park lights are on and then you signal, does the park like wire lose power or does the LED switch to signal just from the signal being turned on?

To achieve the look from the video that I posted previously here is what you will need, ** note this setup does require the driver to manually turn the running lights on (turn your light switch 1 notch clockwise - same for turning them off)

4 switchback leds
4 load resisters

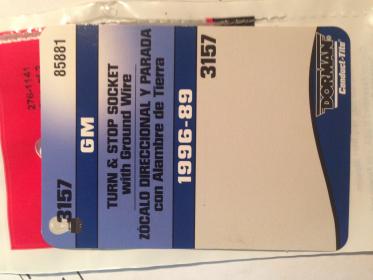

2 bulb sockets
2 small pieces of wood

I will include links to the needed materials at the bottom

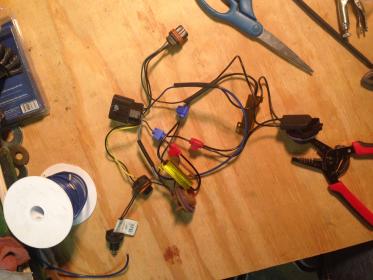

With the new bulb socket, splice into the existing turn signal wiring (not the drl wiring) when splicing into the turn signal wiring make sure to add in the load resisters otherwise the led will blink really fast. Also add the load resisters to the existing turn signal wiring. The resisters need to interrupt the positive feed to the bulb, this is easily found with a volt meter. You can then cut out the drl wiring and cover the ends so there are no wires shorting out. The new socket does not fit very easy but with some force it will fit and be sealed. If you do cut the drl wiring make sure you connect the grounds together because this is in a series. Once everything is wired insert the bulbs and check the lights to make sure everything works. Glue the thin wood pieces to the back of the housing, this is where you will mount the load resisters, if not mounted on wood they will melt the housing. The diagram that is uploaded May be confusing so if you have questions just ask.

Also I am explaining this from memory so don't mind the jumping around.

https://m.summitracing.com/parts/pco-5447pt

http://m.ebay.com/itm/111038976835?cmd=VIDESC

This is just a quick write up from my phone
