20', then can use some for Big 3, and have some to spair. Most amp kits come with 15 to 20'.

OP
OP
xX Mavr1ck Xx

xX Mavr1ck Xx

Full Access Member
Joined
Jul 27, 2009
Posts
401
Reaction score
2
Location
Middle Tennessee
I've been running numbers on the box design Im trying to do, and still having trouble: The specs for one sub is 2.25 ft cubed so the total will be 6.75 ft cubed. So I was thinking of a box that will be "about" H=15, W=48, L= 21. Just something i punched in, that total is 7.08 ft cubed. That is for a sealed box, but I'd to port this box. I just dont know how to do a port(s) for 3 subs. Should I seperate the subs into chambers and do an individual port for each chamber? Or Just do one long port for all 3? Any help with this would be great! thanks for reading.

EDIT: The specs for the subs are for a ported, not sealed.


blueflamed03

Supporting Member
Joined
May 4, 2009
Posts
8,399
Reaction score
31
Location
Oklahoma
do all three in seperate chambers, then that will may the box smaller, but aim for about 2.0 per chamber then port.

OP
OP
xX Mavr1ck Xx

xX Mavr1ck Xx

Full Access Member
Joined
Jul 27, 2009
Posts
401
Reaction score
2
Location
Middle Tennessee
sounds like a plan, ill get some measurments when i get off work tonight, cant wait to start working on this! I bought a 4x8 piece of MDF and it cost 27.00! I that was a little much but i dont really know. thanks for the advice blueflamed

OP
OP
xX Mavr1ck Xx

xX Mavr1ck Xx

Full Access Member
Joined
Jul 27, 2009
Posts
401
Reaction score
2
Location
Middle Tennessee
BIG 3 Question

Okay, so I'm doing the big 3 this weekend and I want to clear up a few things real quick. Here is a pic to make this a little easier
Blue: from alt
Yellow: to fuse box
Red: from + battery
Do I need to replace all these wires? That will be alt to positive, I know where the negative ground is at. And where is the chasis to engine wire at? If anyone could help me out thanks!

Last edited:

drowndindreams

Full Access Member
Joined
Aug 3, 2009
Posts
1,074
Reaction score
1
Location
Unknown
you dont have to replace them, i just added onto it with 4gauge wiring.

chassis to engine block , which is the last one you listed, you should follow your existing positive wiring, one will lead somewhere under the alternator. wherever that leads, thats where you should run a wire to the chassis.

OP
OP
xX Mavr1ck Xx

xX Mavr1ck Xx

Full Access Member
Joined
Jul 27, 2009
Posts
401
Reaction score
2
Location
Middle Tennessee

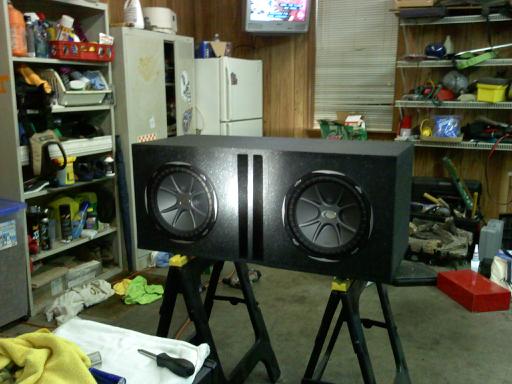

Cool cool. Thanks a bunch drowndindreams, youve been a lot of help. Would had this done tonight, but had to help my friend build his sub box.


drowndindreams

Full Access Member
Joined
Aug 3, 2009
Posts
1,074
Reaction score
1
Location
Unknown
oh, and make sure you wear gloves, because it took me 4 days to get the grease off my hands lol.

no problem


AtomicHoe094

Atomichoe094
Joined
Apr 30, 2009
Posts
8,179
Reaction score
7
Location
cleveland, OH
for the +from the battery to the alternator, youll need a inline fuse. the factory comes with a fusible link, so youll have to put one in also with the new wire
