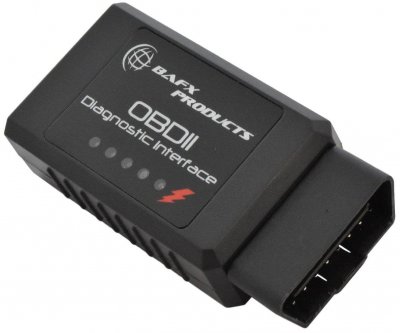

It's a BAFX bluetooth OBD2 interface that I mounted in the driver's side fuse panel area. I hard-wired it into the ignition for power so I don't have worry about it running the battery down. It's also wired into the Class 2 bus so that the OBD port is free for connecting a scanner like my Tech2.

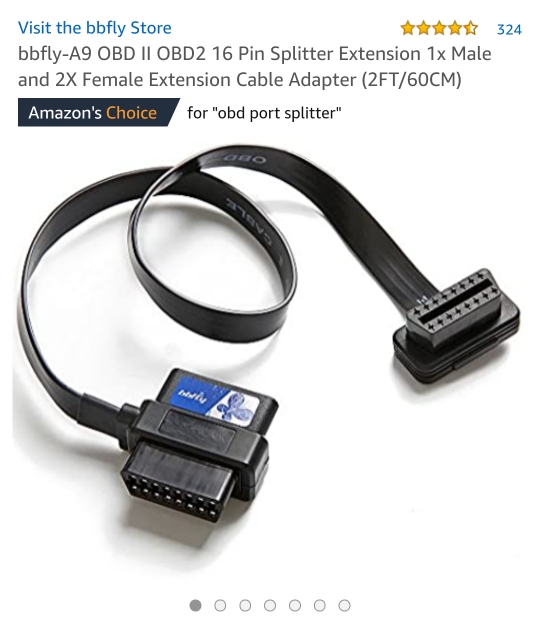

I’ve been using a Y cable to connect a scangauge and anything else, mostly a bluedriver.


Tonyrodz

Resident Resident
Joined
Feb 16, 2012
Posts
31,759
Reaction score
47,583
Location
Central Jersey
It's a BAFX bluetooth OBD2 interface that I mounted in the driver's side fuse panel area. I hard-wired it into the ignition for power so I don't have worry about it running the battery down. It's also wired into the Class 2 bus so that the OBD port is free for connecting a scanner like my Tech2.
Can you post a pic of it when you can. I'm trying to picture it but can't.


Woodblocker55

Full Access Member
Joined
Apr 13, 2019
Posts
667
Reaction score
420
Yes just watch youtubes on what you like to check out and someone made a video figured my temp for tranny out works great .

Sent from my LGL722DL using Tapatalk


DougAMiller

Full Access Member
Joined
Mar 10, 2016
Posts
491
Reaction score
796
Location
Colorado
I mean how @DougAMiller has it attached in his fuse box.
Not sure how much the pic will help, it's just tucked in behind the cover. I picked up an Ignition1 from the back of the fuse panel, and then tapped ground and Class 2 from the wires coming out of the back of the OBDII connector.


Tonyrodz

Resident Resident
Joined
Feb 16, 2012
Posts
31,759
Reaction score
47,583
Location
Central Jersey

DougAMiller

Full Access Member
Joined
Mar 10, 2016
Posts
491
Reaction score
796
Location
Colorado
I really like this idea. You're right tho--can't see or tell. Great idea, not taking up the obd port.
Yeah, I can run a basic scan using Torque on the installed tablet, which is handy, but if the problem is with ABS, SRS, etc then I need to plug in the Tech2. Besides, I didn't like the OBD interface sticking out from under the dash and the flashing LEDs were annoying.
