Post your lifts.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

06_2WD_Z71

Member
Joined
Apr 6, 2016
Posts
70
Reaction score
10

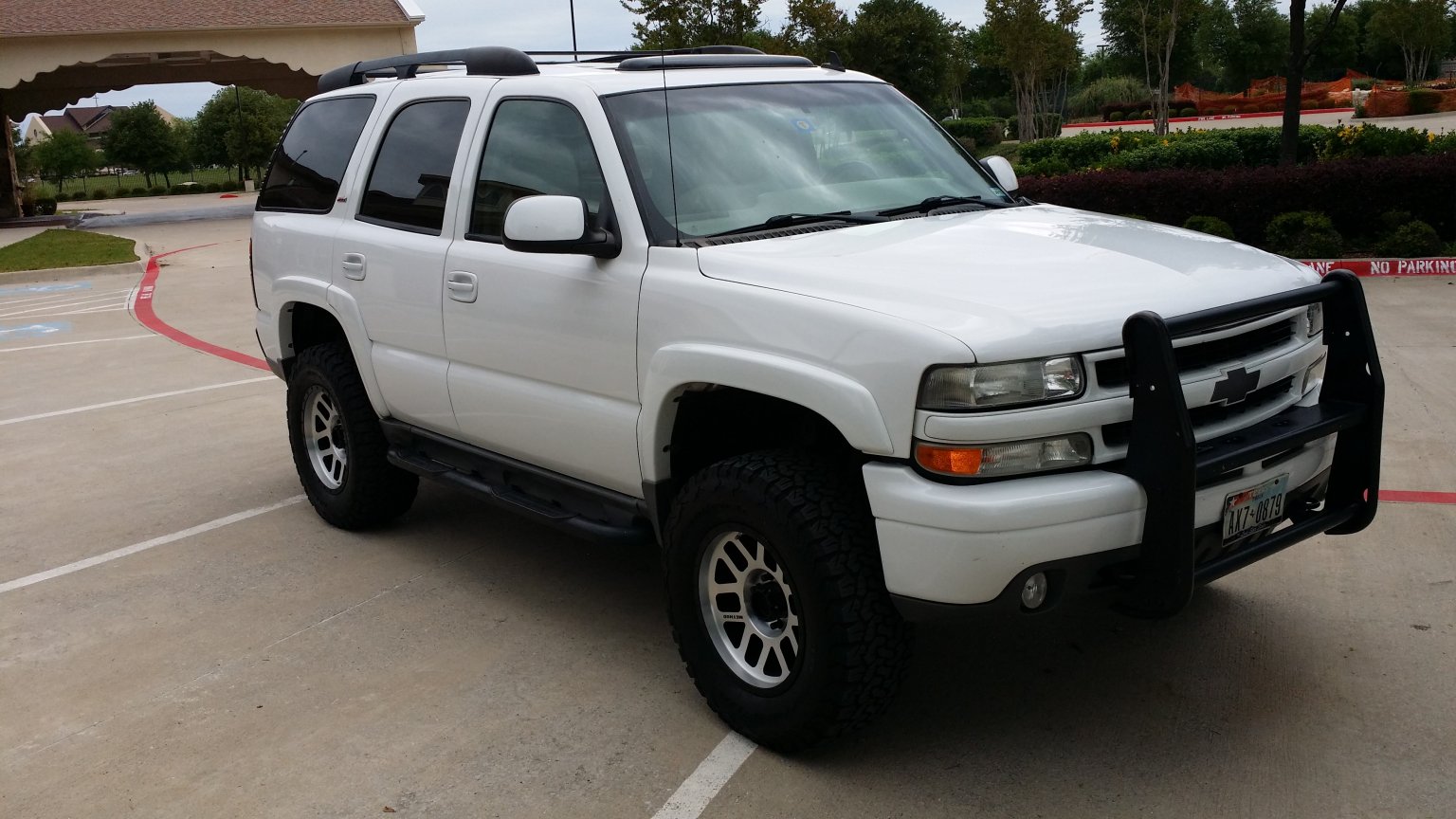

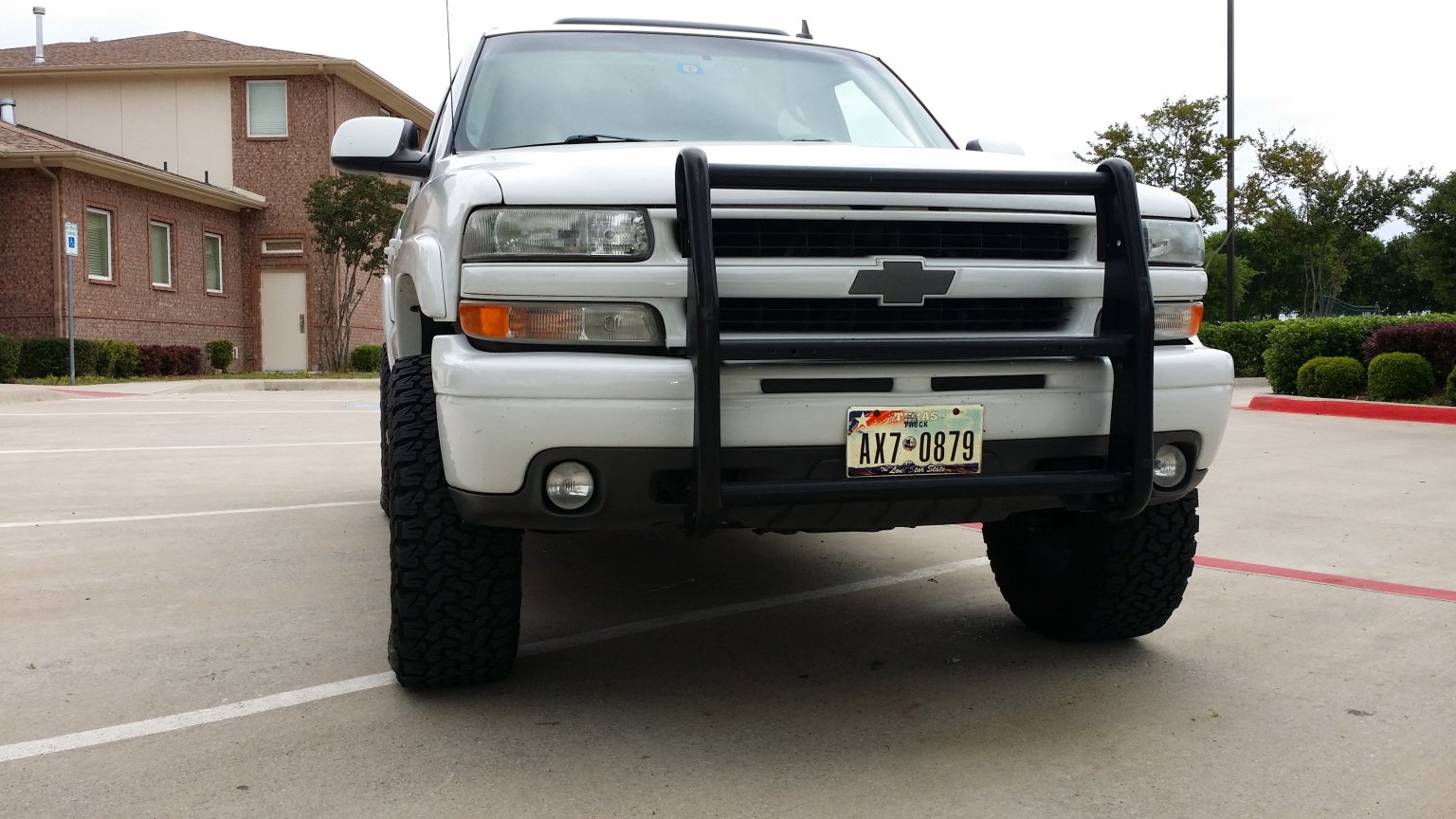

2wd with 3" Maxtrac Spindles, stock keys cranked, 2" lift Maxtrac rear springs, 2" polyurethane spacers, Bilstein 5100s, Spohn adjustable track bar. Method mesh wheels with BFG 305/65/18.
20160409_094231.jpg 20160409_094134.jpg 20160409_094207.jpg



ATIII

Full Access Member
Joined
Jan 21, 2015
Posts
420
Reaction score
414
Location
Brighton, CO (Denver)

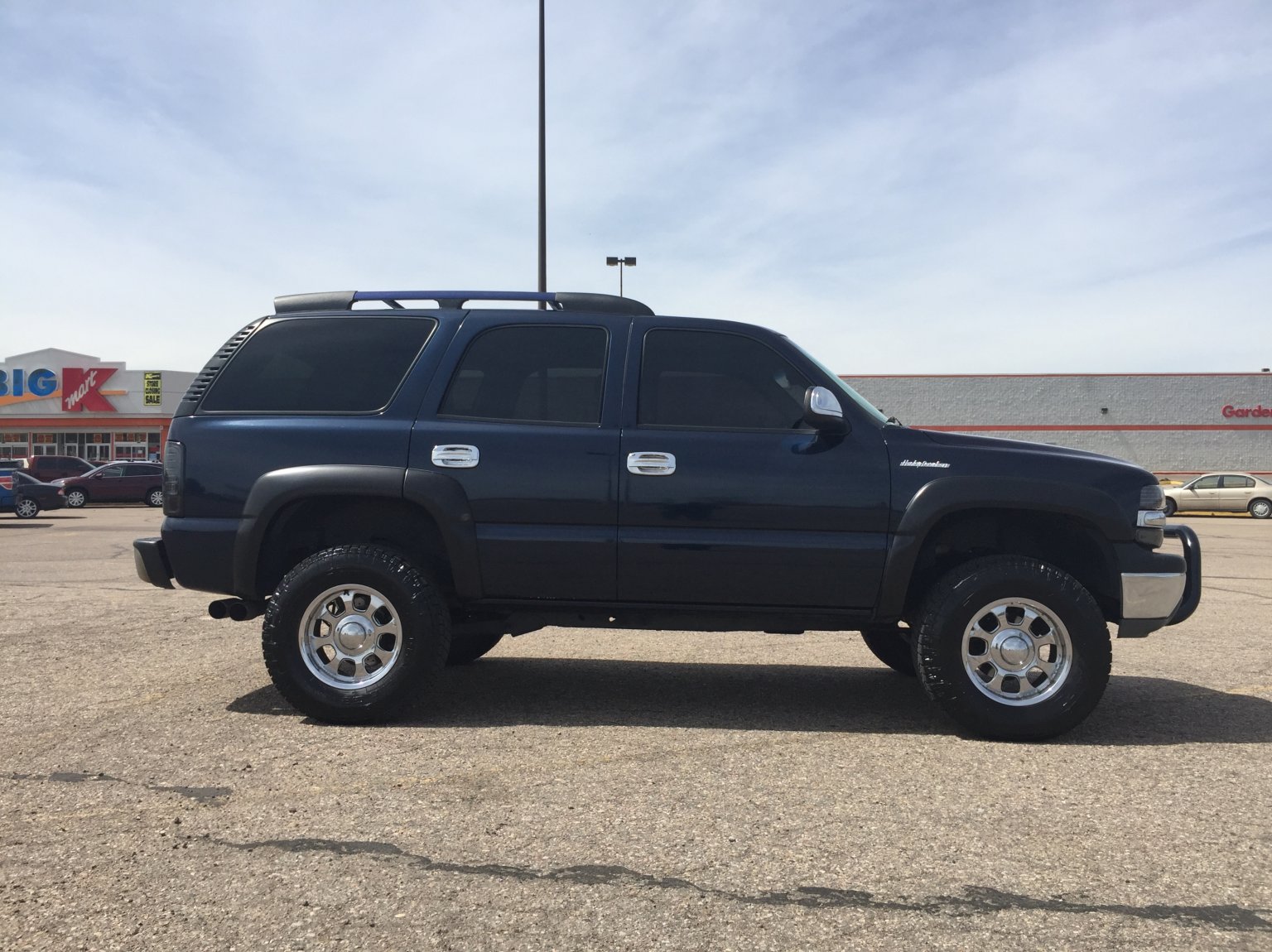

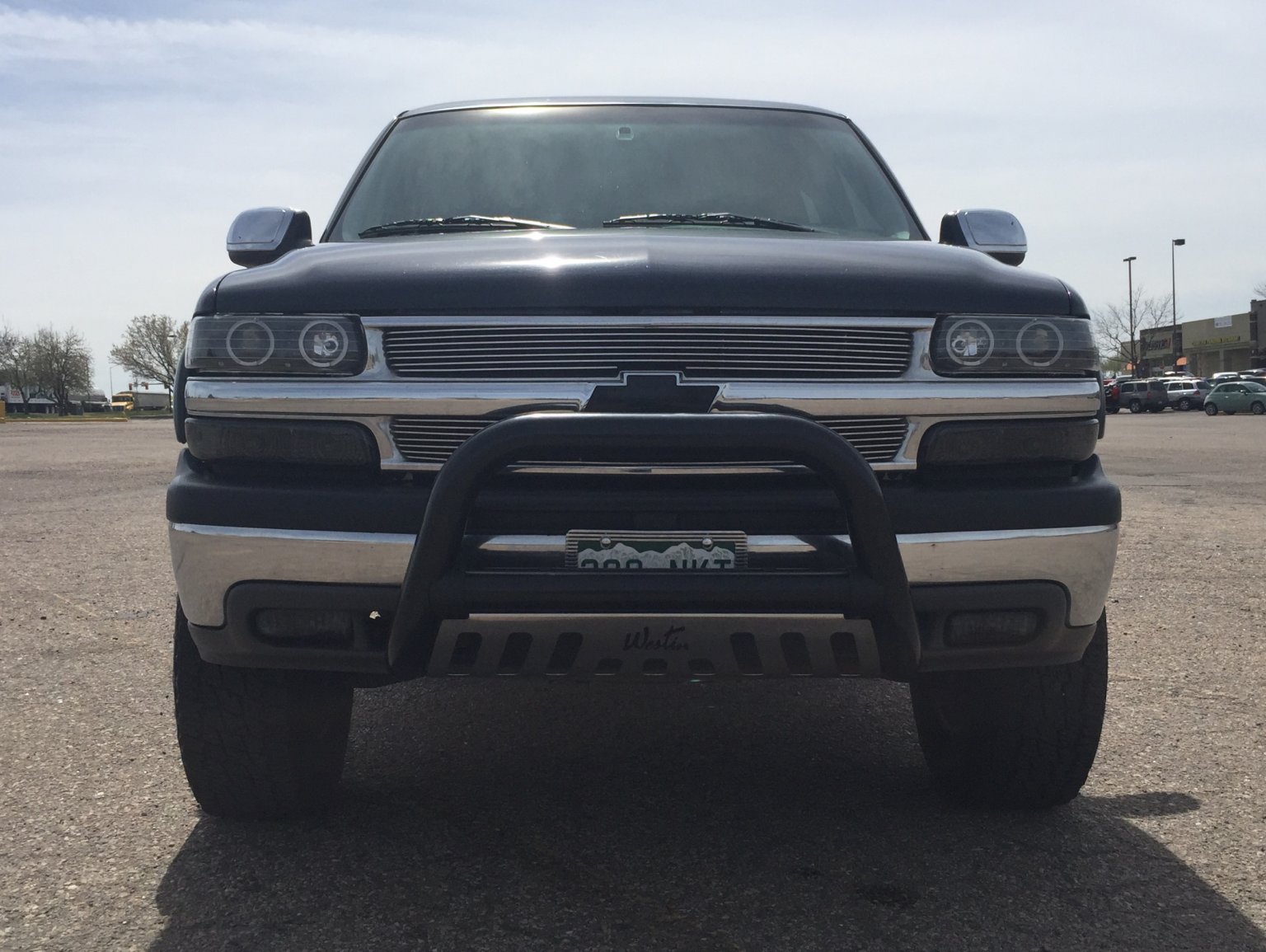

Z71 Coils, 2" Spacers, Warrior extended rear sway bar links, Re-Indexed Keys cranked 3/4 of the way, extended Bilstein's all the way around, 285/70/17 Terra Grapplers, Weld Racing 17x8.5 - Std. offset, 2" wheel spacer to bring out even with Bushwackers.

39.5" Front, 40.5" Rear - Ground to Fender

Waiting on these to come this week: http://www.cognitomotorsports.com/heavy-duty-sway-bar-end-link-kit-stock-3-height.html

And getting this setup this summer:
http://www.spohn.net/shop/2000-2006...Tahoe-Yukon-Avalanche-Escalade-Hummer-H2.html

Anybody else running either of these yet, or am I the Guinea pig?

IMG_3222.JPGIMG_3230.JPG IMG_3224.JPG IMG_3238.JPG

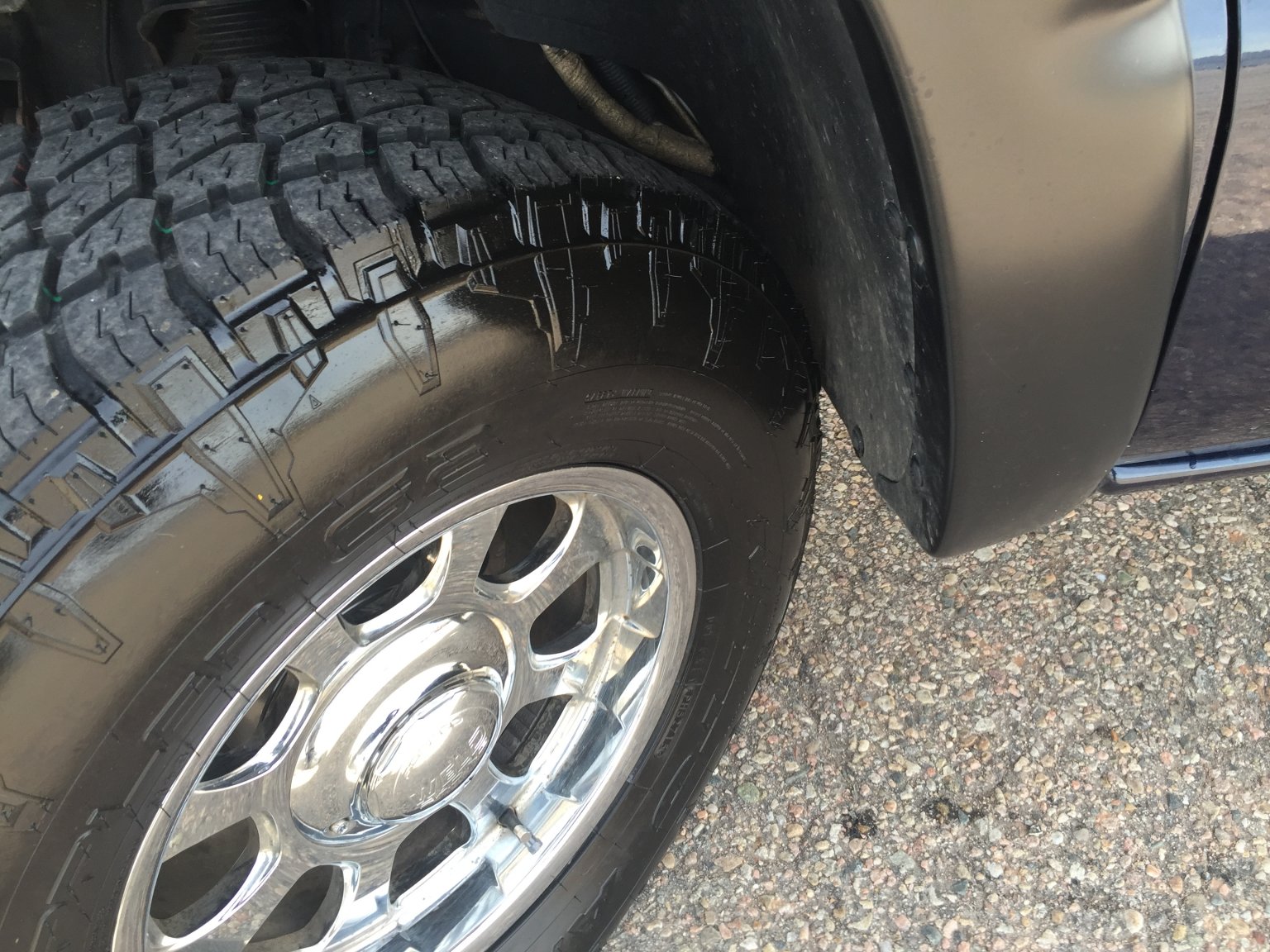

Slight Rub here, but only on a full crank in reverse.IMG_3234.JPG


06_2WD_Z71

Member
Joined
Apr 6, 2016
Posts
70
Reaction score
10
Wow AT. Those Nittos look at least as fat as my 305 BFGs. Love the whole look of your truck including the color; I've not seen one set up quite like that.


Duramax05blk

Full Access Member
Joined
Jul 8, 2012
Posts
338
Reaction score
223
Location
NH
And getting this setup this summer:
http://www.spohn.net/shop/2000-2006...Tahoe-Yukon-Avalanche-Escalade-Hummer-H2.html

I used them as a reference to build my own set using all heim joints and 1.5 inch tube there's a pic of the Panhard bar
On page 14 still building the truck so haven't been able to test yet. The upper arms are tight to tires will need spacers or offset wheels. I didn't notch them like spohn did.

Sent from my SM-G900V using Tapatalk


Flexx

Full Access Member
Joined
Dec 16, 2014
Posts
204
Reaction score
62
Location
Texas
Z71 Coils, 2" Spacers, Warrior extended rear sway bar links, Re-Indexed Keys cranked 3/4 of the way, extended Bilstein's all the way around, 285/70/17 Terra Grapplers, Weld Racing 17x8.5 - Std. offset, 2" wheel spacer to bring out even with Bushwackers.

39.5" Front, 40.5" Rear - Ground to Fender

Waiting on these to come this week: http://www.cognitomotorsports.com/heavy-duty-sway-bar-end-link-kit-stock-3-height.html

And getting this setup this summer:
http://www.spohn.net/shop/2000-2006...Tahoe-Yukon-Avalanche-Escalade-Hummer-H2.html

Anybody else running either of these yet, or am I the Guinea pig?

View attachment 61500View attachment 61501 View attachment 61504 View attachment 61505

Slight Rub here, but only on a full crank in reverse.View attachment 61506
That's a super clean rig! Not sure why I feel like everybody else's trucks look so beefy with the 285/70/17, and I feel like mine looks tiny. [emoji20]

Going to go bigger here soon, if that doesn't cut it I'm doing a 6"!

Sent from my HTC One M9 using Tapatalk


ATIII

Full Access Member
Joined
Jan 21, 2015
Posts
420
Reaction score
414
Location
Brighton, CO (Denver)
That's a super clean rig! Not sure why I feel like everybody else's trucks look so beefy with the 285/70/17, and I feel like mine looks tiny. [emoji20]

Going to go bigger here soon, if that doesn't cut it I'm doing a 6"!

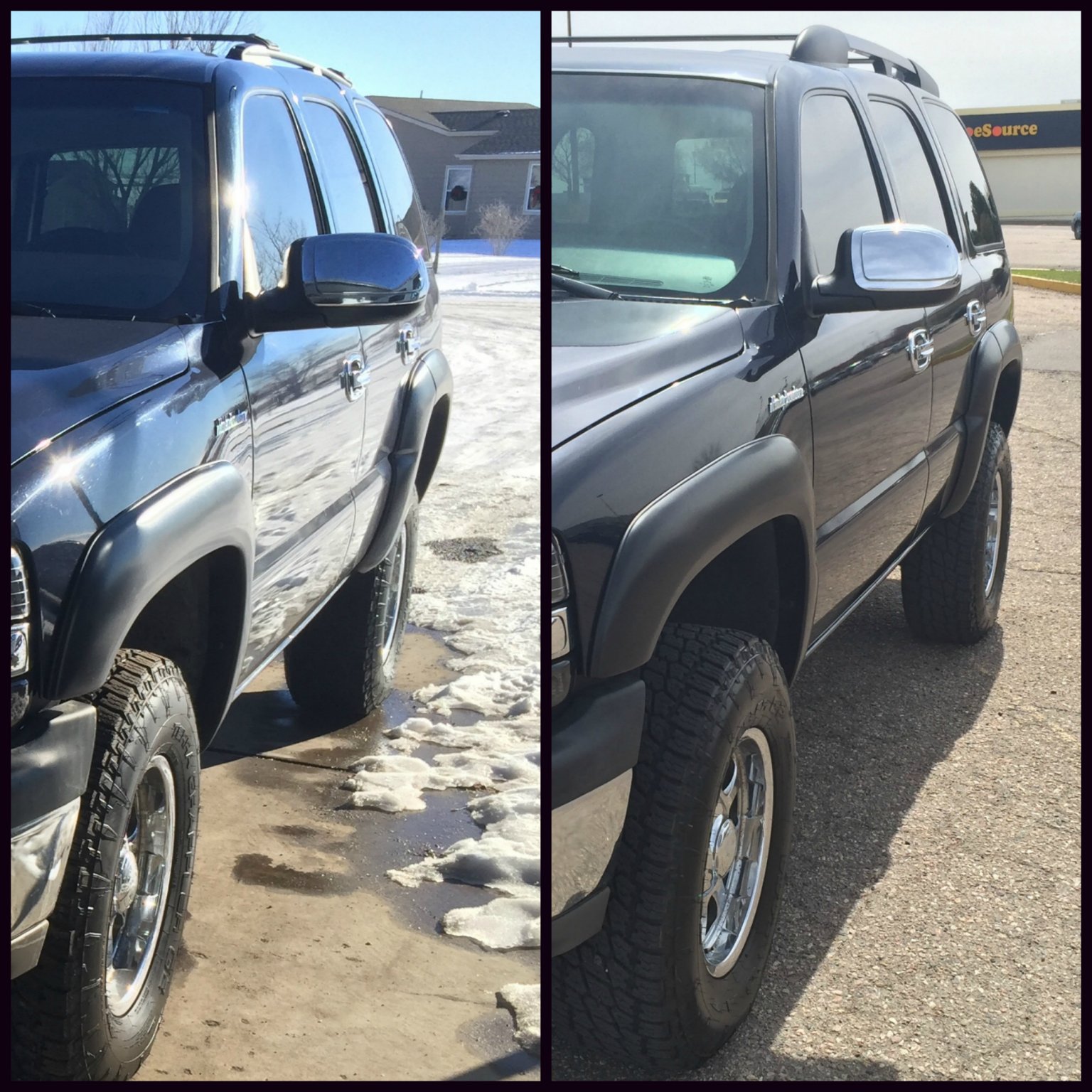

I had the same issue until last week when I installed the wheel spacers. The tires were hiding under the truck too much. Hope this helps.


Flexx

Full Access Member
Joined
Dec 16, 2014
Posts
204
Reaction score
62
Location
Texas
My wheels are 17x9 and have a little more offset, the wheel is about even with the fender flare. Hoping a 305/70/17 or 33/12.5/17 will give the stance I want. If not I'll probably swap wheels rather than put a spacer on a wheel that's already kind of far out.

Sent from my HTC One M9 using Tapatalk


06_2WD_Z71

Member
Joined
Apr 6, 2016
Posts
70
Reaction score
10
Ok after seeing the pics, without a doubt you need those spacers! Especially with the flares, it doesn't look right at all in the back without them.

Looks like the Nittos bulge out a bit at the sidewall, so they look fatter even if the tread is 285.

I've used spacers (adapters actually) for many years with zero issues. Even launched my t-bird hard enough to bend an axle in the 8.8 rear with no issues on a 1.5 spacer. However the tire shops (discount tire in particular) have given me grief over them.
