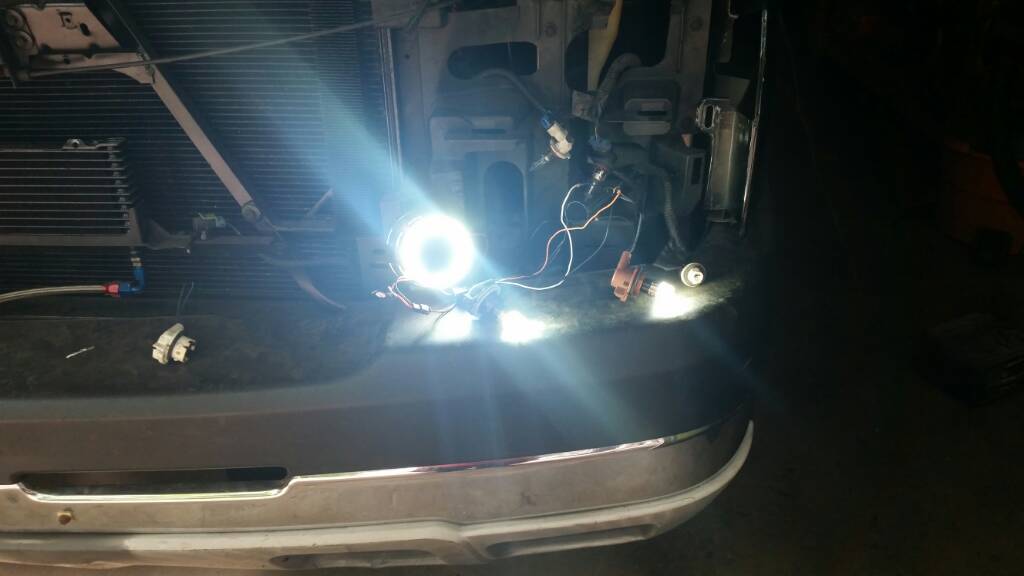

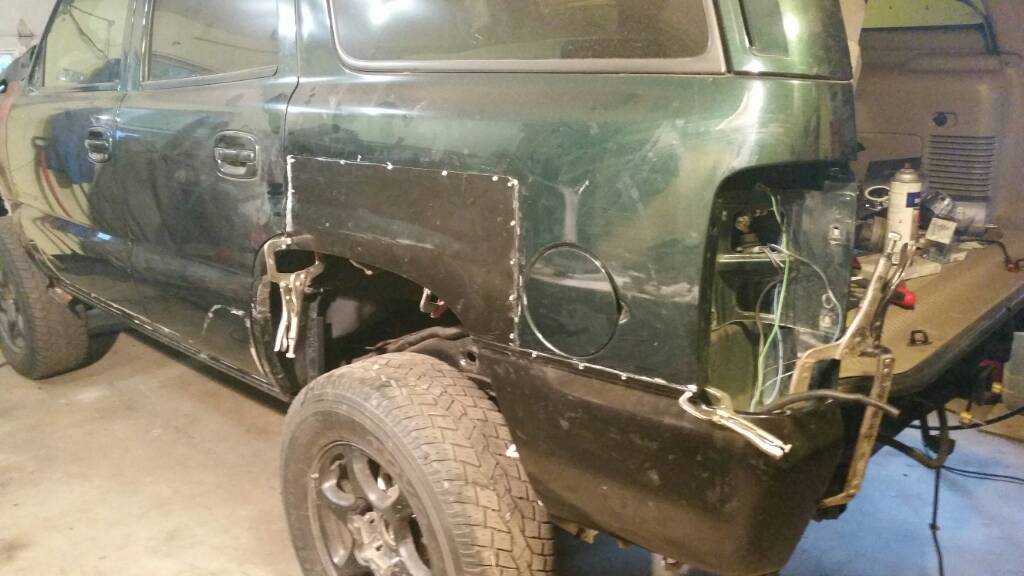

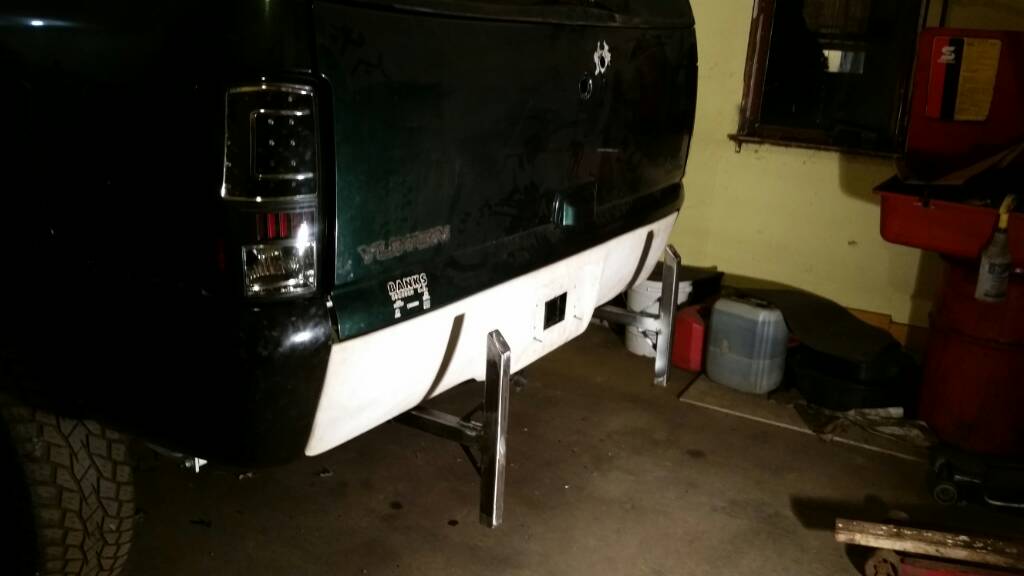

2003 yukon denali build

[Duramax05blk]

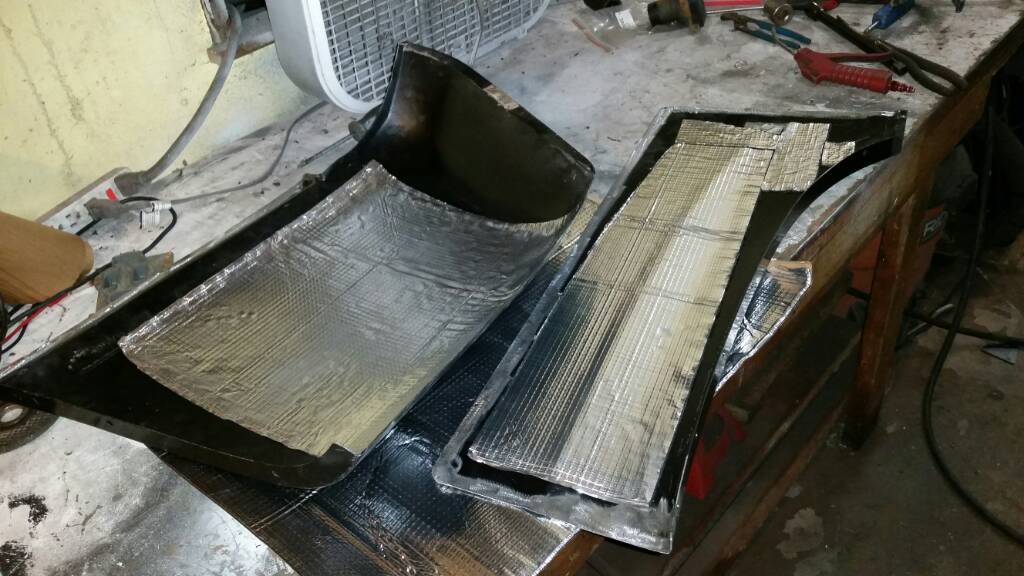

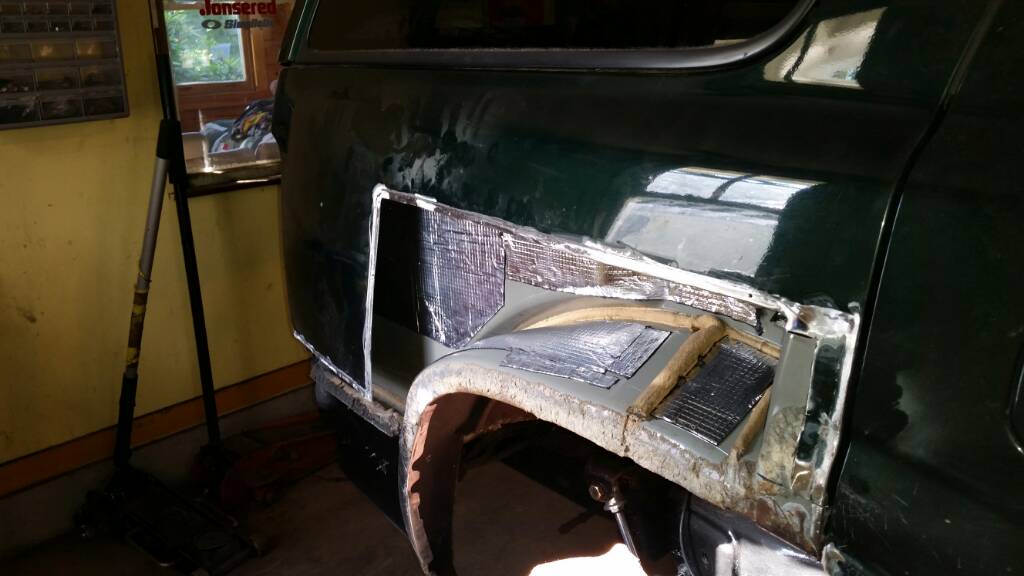

pic 1 factory sound deadner foam

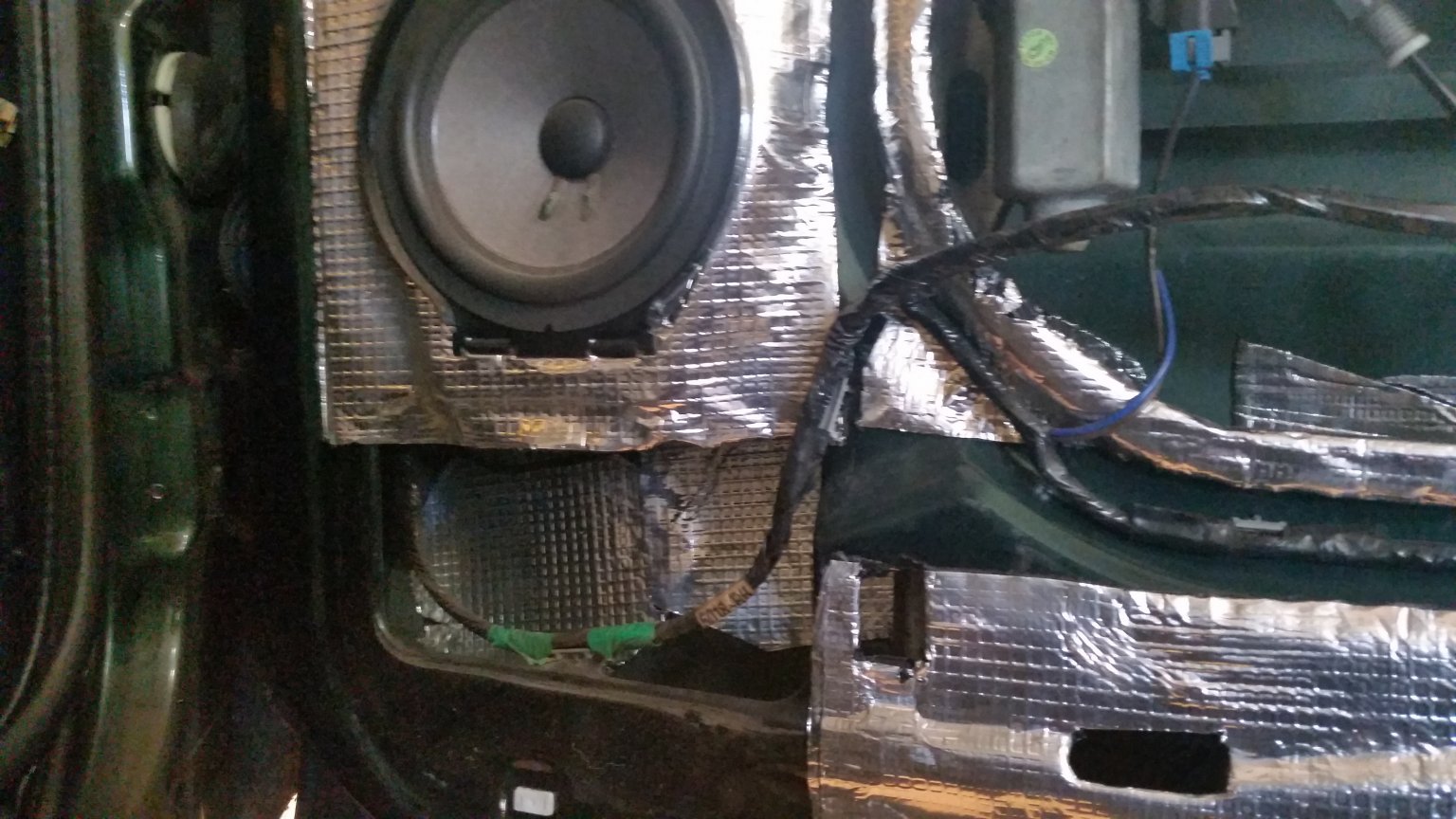

pic 2 factory deadner
pic 3 deadner in front.. little helper hiding

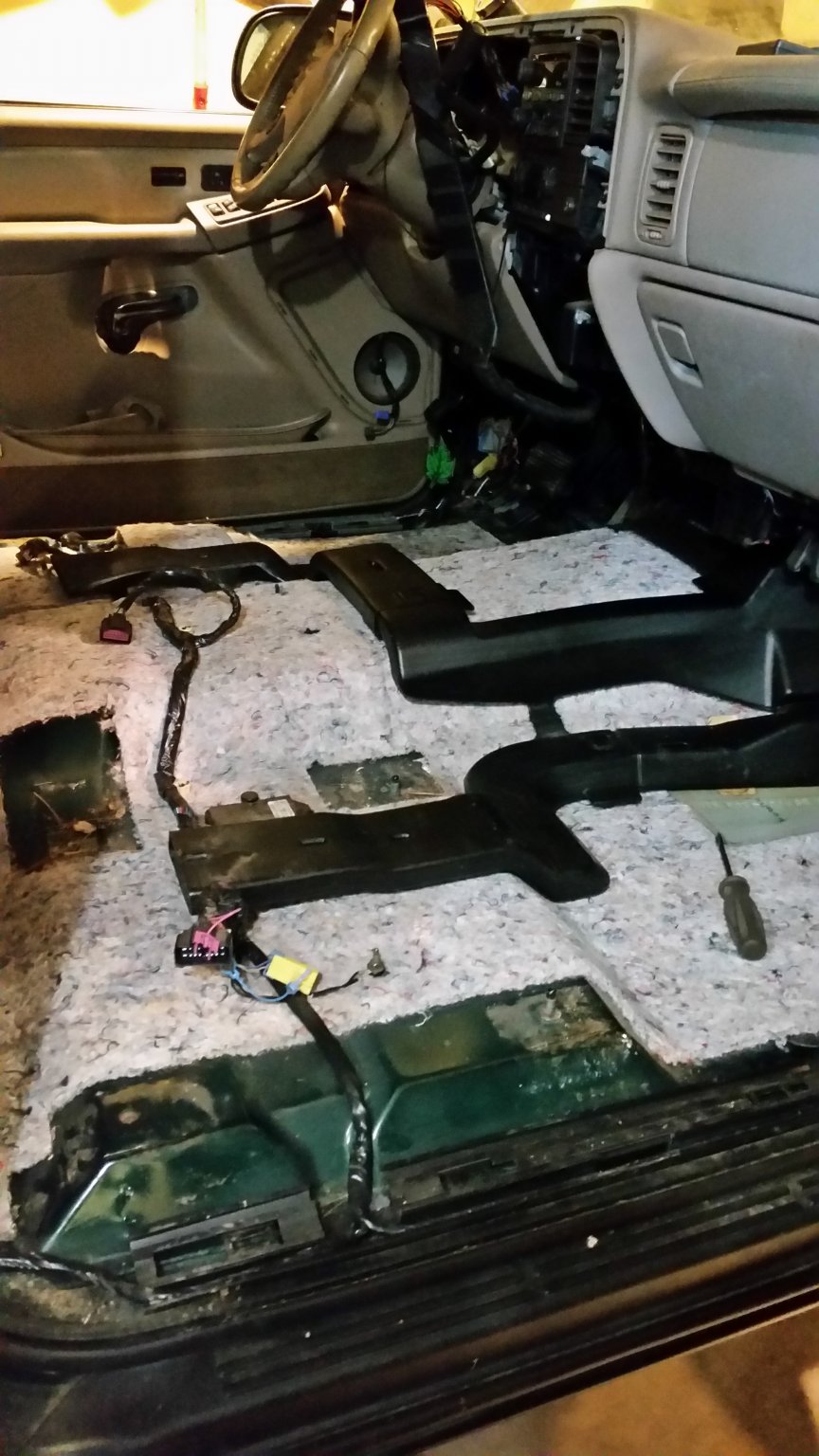

pic 4 Carpet in and all cleaned



[Duramax05blk]

last pic is under neath center console



[Duramax05blk]

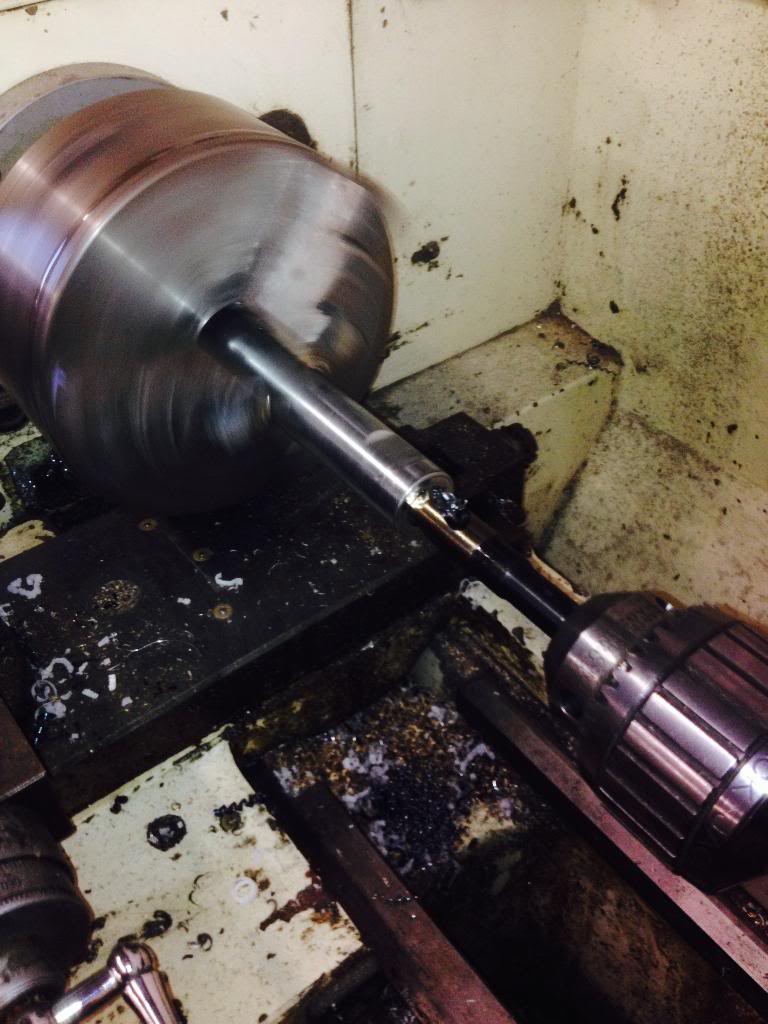

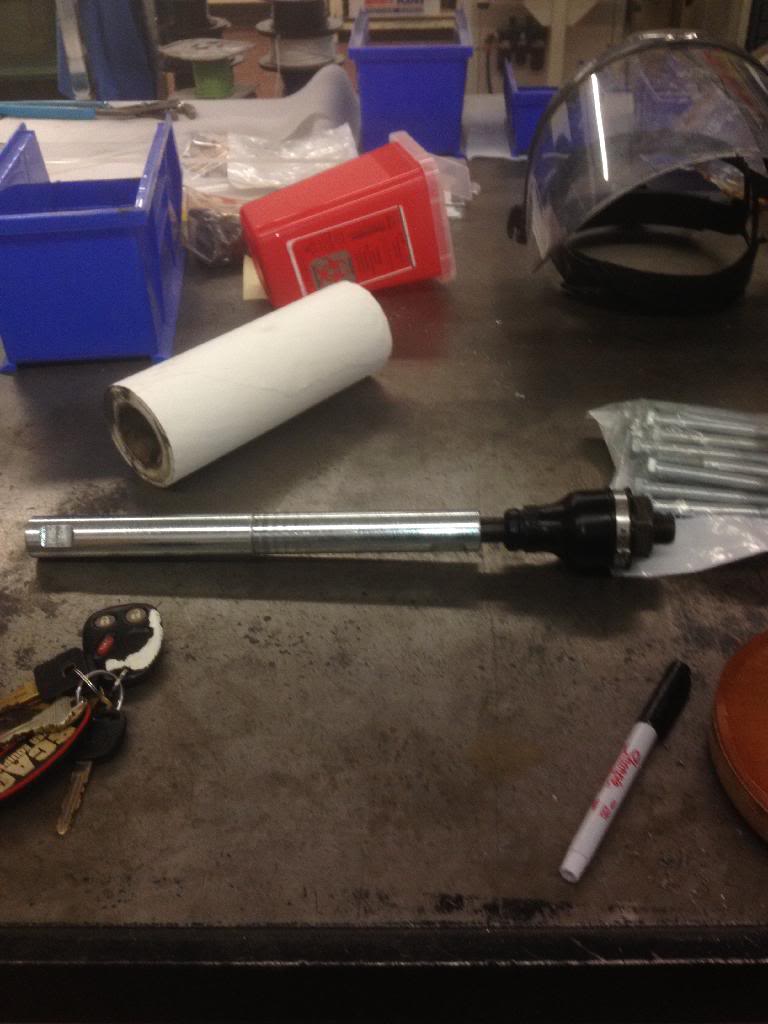

pic 1 turning the radiator adapters to mate an fittings to the factory threaded ends
pic 2 adapters all tig welded

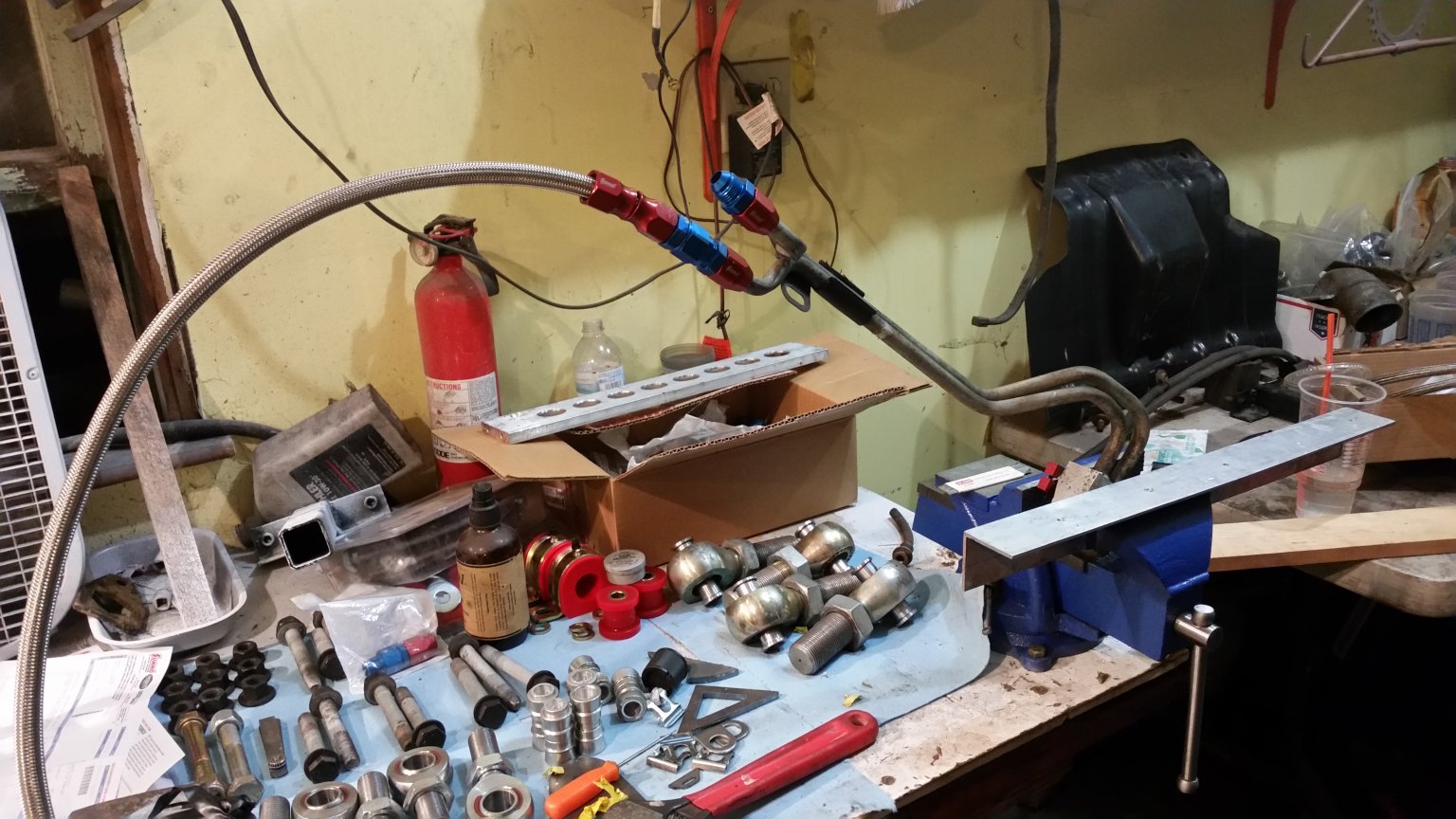

pic 3 cooler lines
pic 4 oil cooler lines



[Duramax05blk]

nasty pic but shows trans lines. they are mounted to the firewall to prevent contact with exhaust. they will be mounted to the inner fender liner via hose clamps with xmass tree ends can think of the actual name.



[Duramax05blk]

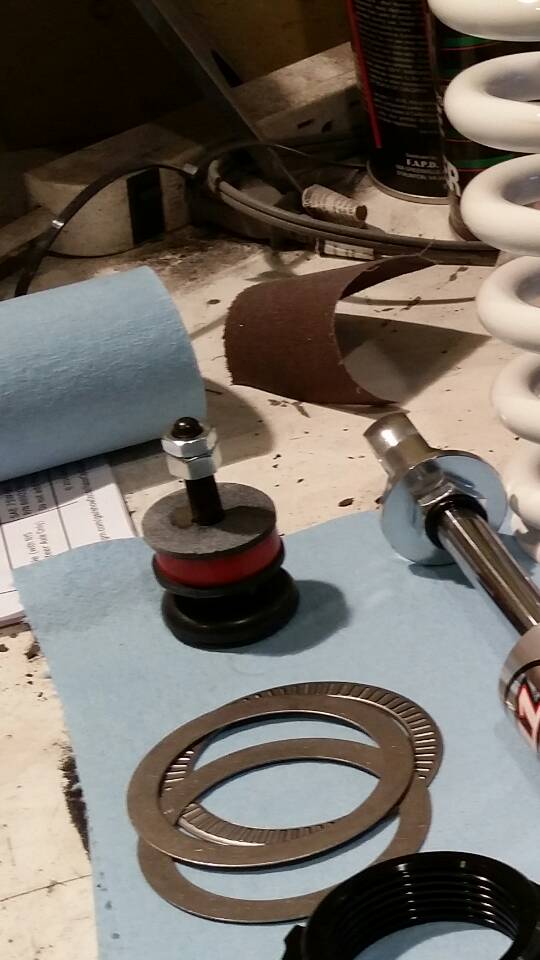

quick shots of fabbing up trailing arms. lower arms are using the barnes enduro joints and the uppers and panhard are using barnes standard heim joints.



[Duramax05blk]

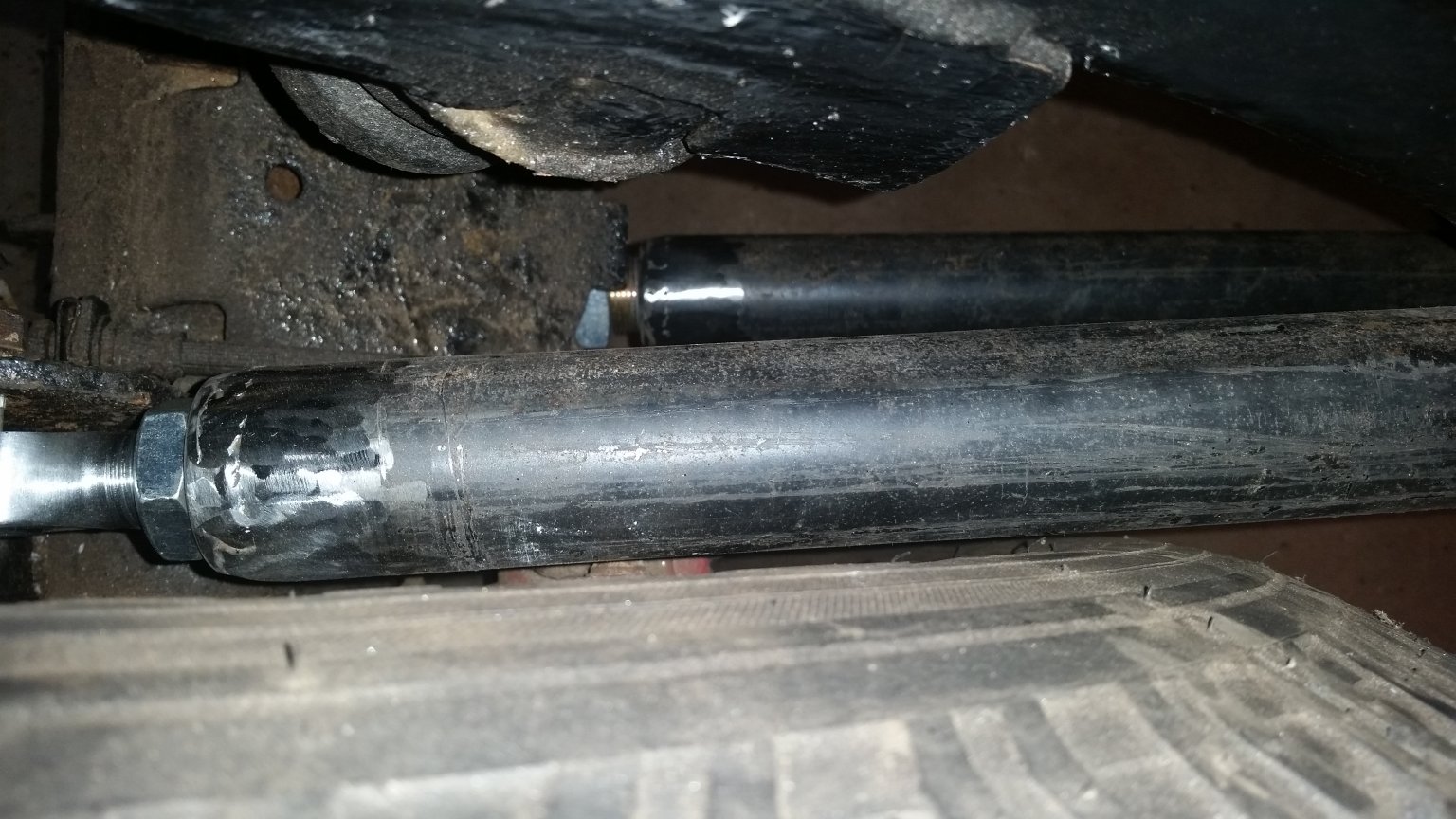

the uppers are extremely close to tire on stock offset with 1.5 diameter tube and no bend heims line up perfect though. i have added spacers for the time being.



[Duramax05blk]

sway bar



[Duramax05blk]

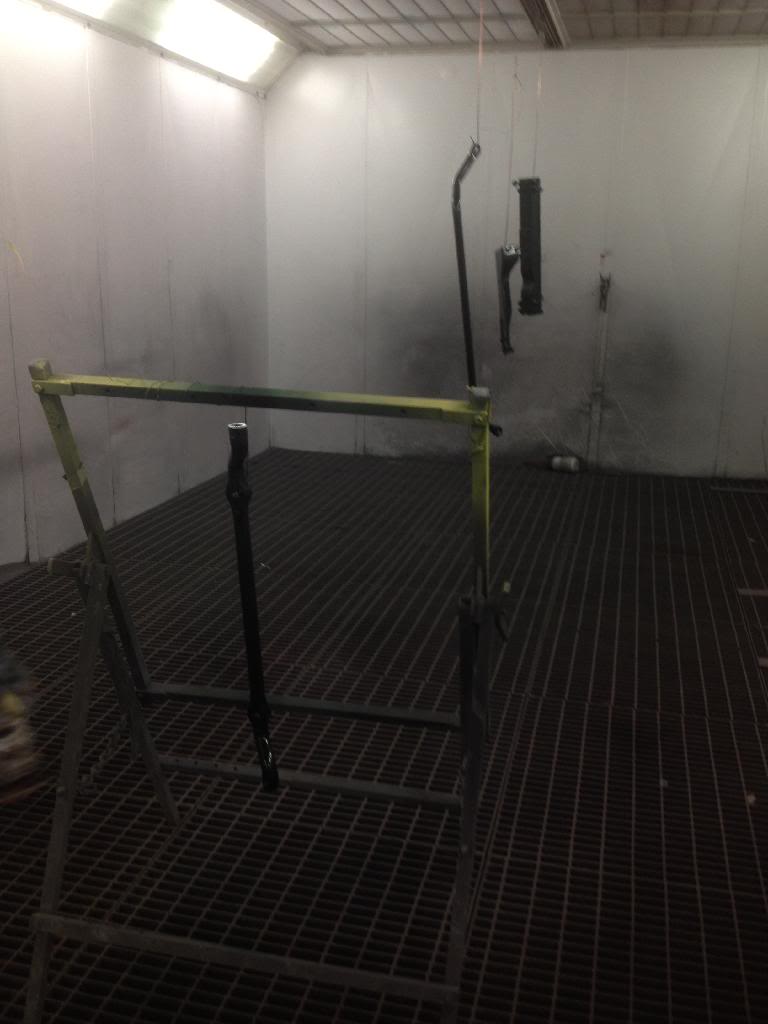

Trailing arms powder coated


Sent from my SM-G900V using Tapatalk



[Duramax05blk]

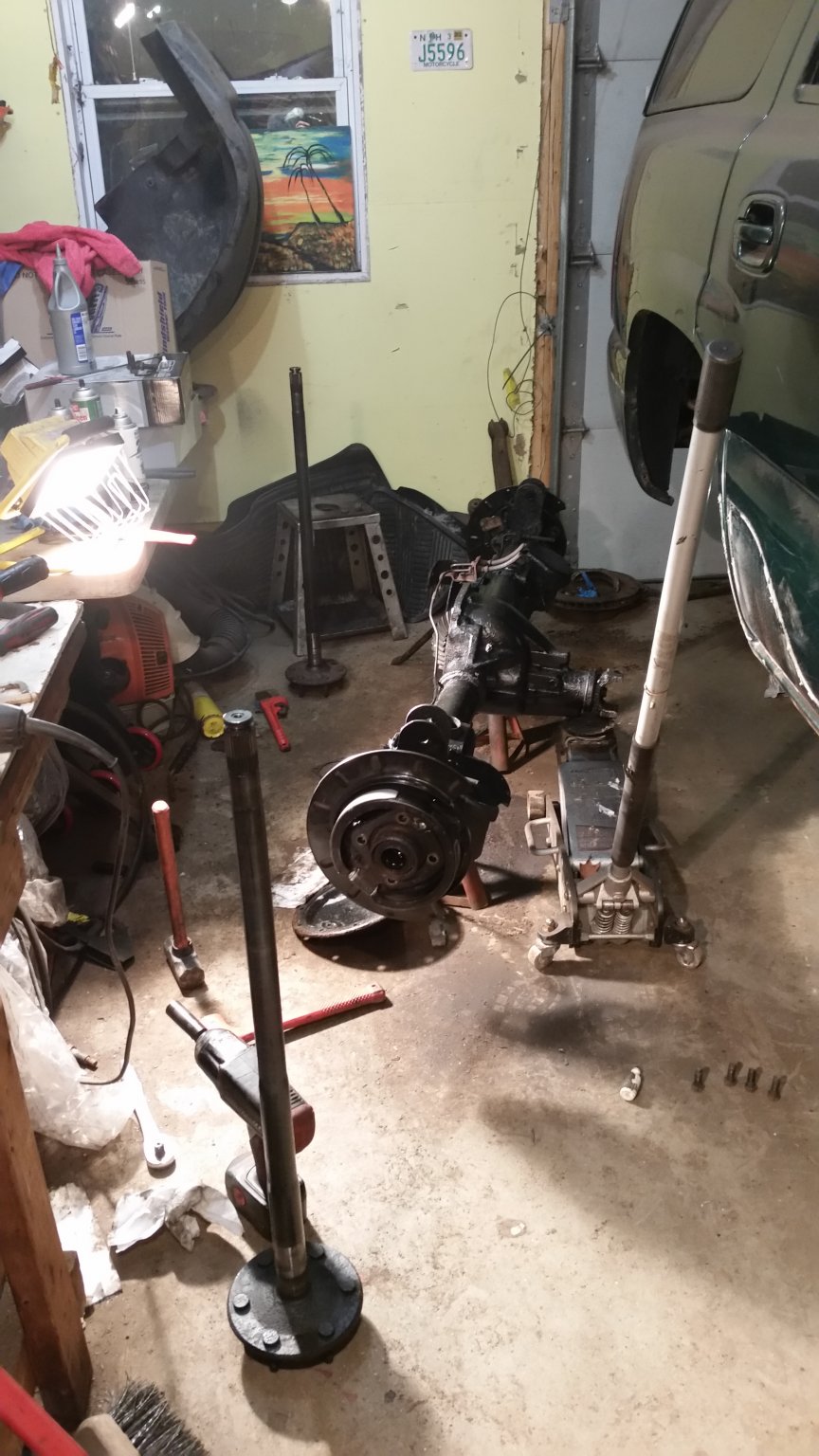

pulled rear end to clean up and removed shafts to replace backing plates

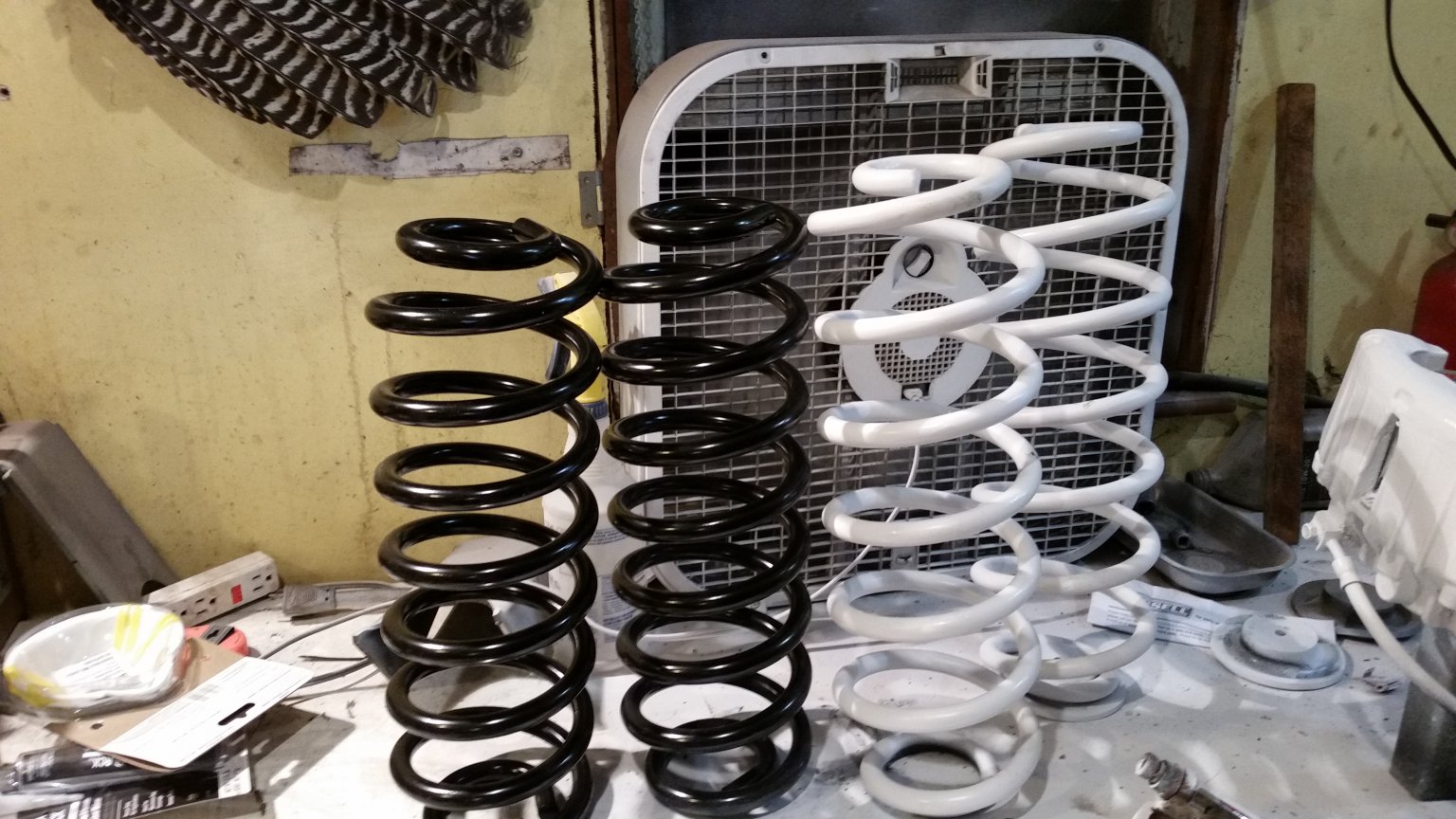

Kind of odd to me but the new z71 springs are shorten then the factory denali springs but z71 springs are much stiffer, escpecially considering the air ride had been bad for a few years.

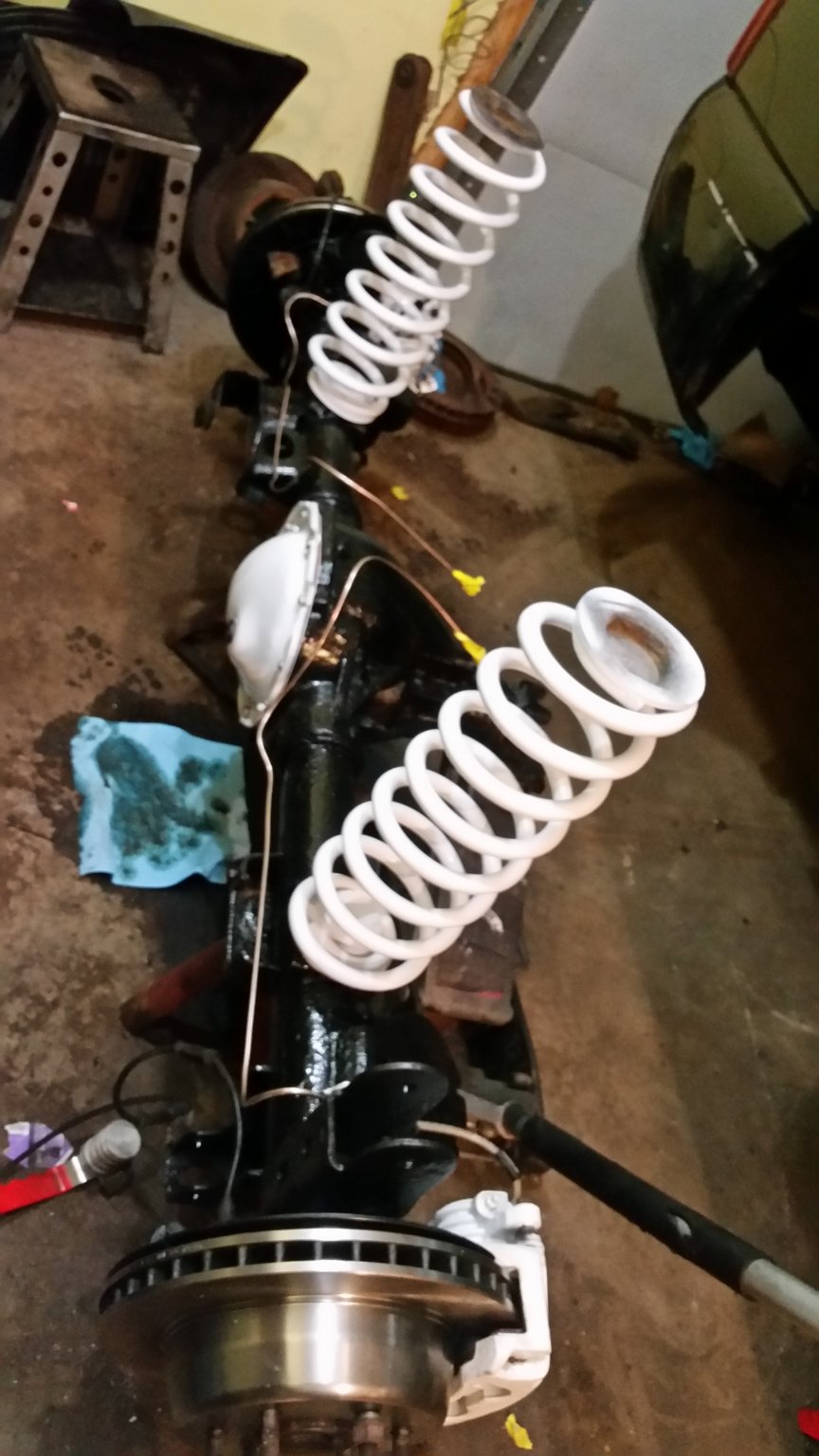

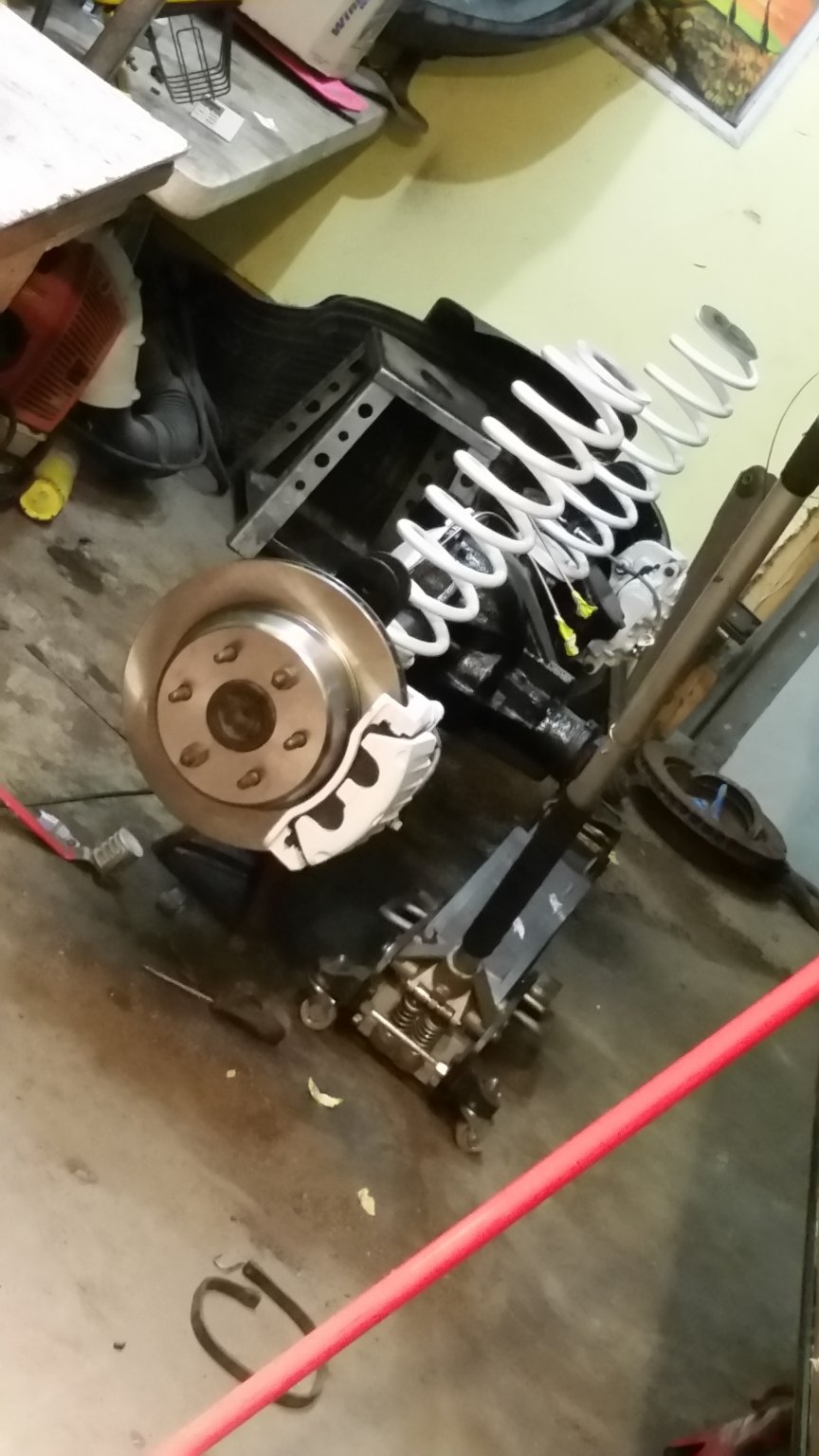

got new shafts back in, spray bombed new z71 springs and calipers with new pads and rotors and speed bleeders. Also got stainless braided hoses on and new copper line run along axle



[Duramax05blk]

axle back in and mounted up with custom brake line mount
