AC Control Panel fries out with puff of smoke

[wahoo_wes]

Will do, thanks!!!

---------- Post added at 04:46 PM ---------- Previous post was at 04:41 PM ----------

ok, i just printed the diagrams, i am going to be checking this and will let you know what i find, and i set the emal!

thanks again Comet!



[SunlitComet]

Think you could get me a good angle shot from above and back. I am specifically looking for the circuit trace that has the surrounding burn to it to the inline connector. As detailed as possible. would help narrow the problem. Thanks.



[wahoo_wes]

comin up!

---------- Post added at 04:59 PM ---------- Previous post was at 04:49 PM ----------

ok, i am uploading a number of shots now, if they are not good enough let me know and when i get home i will use a real camera



[SunlitComet]

Thanks.



[wahoo_wes]

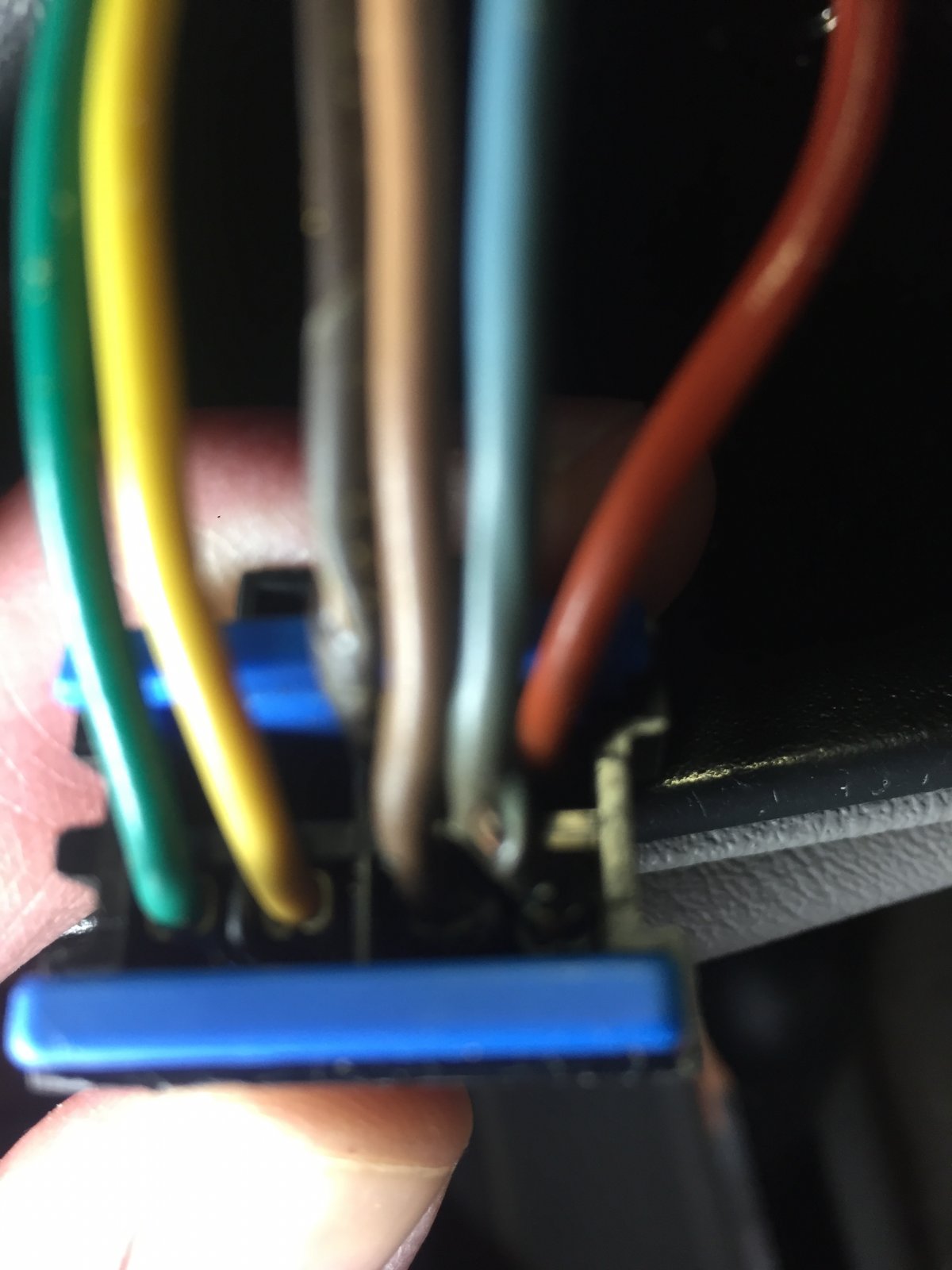

Here are some, the rest are uploading from the android



[wahoo_wes]

here are some more, still uploading



[wahoo_wes]

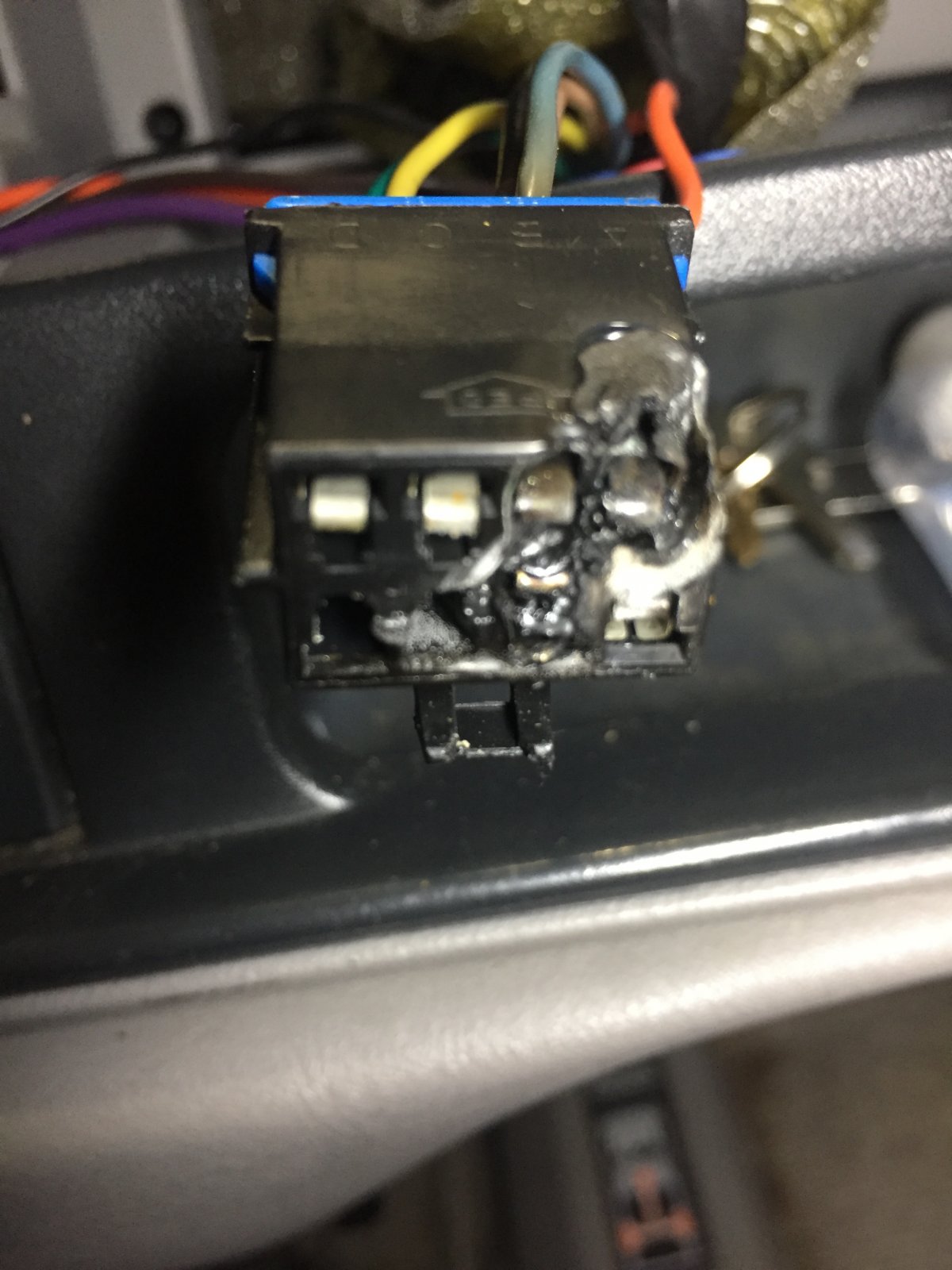

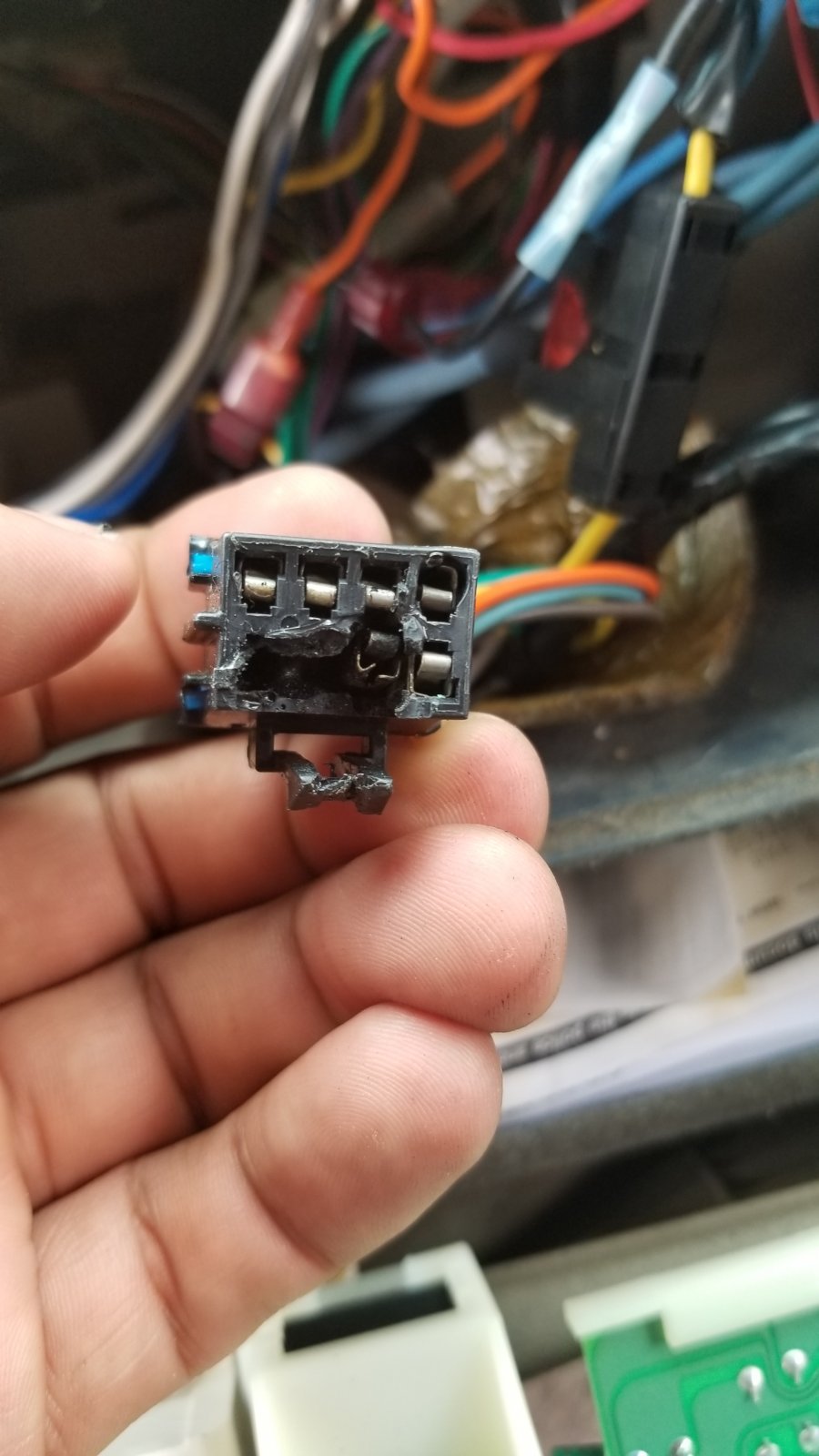

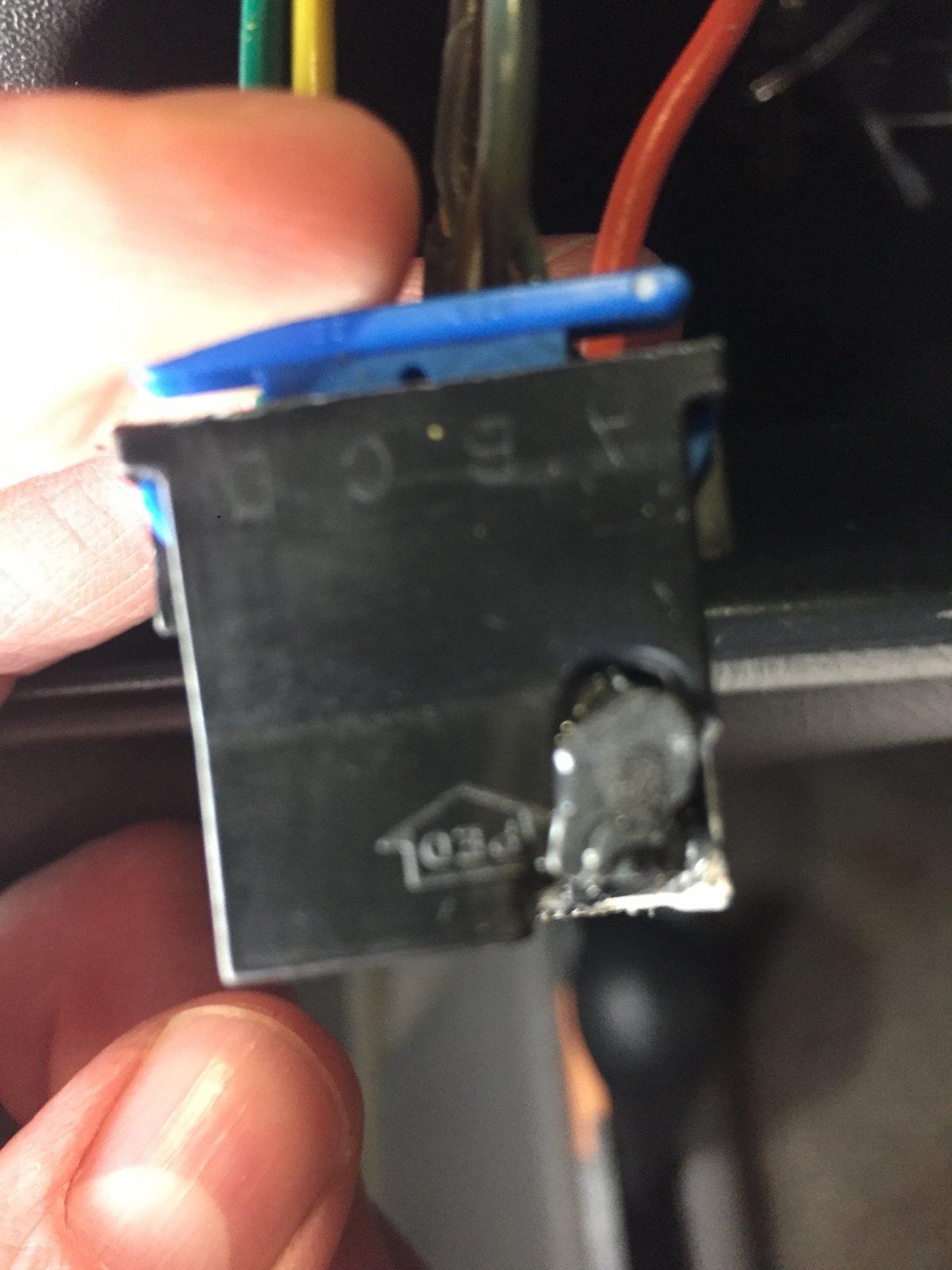

tighter shots coming, the slot in the housing corresponds almost directly with burnt spot



[SunlitComet]

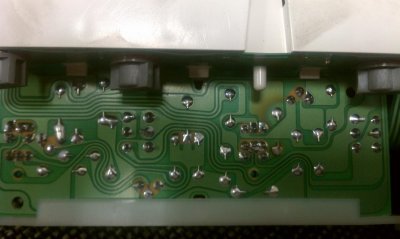

yeah just the circuit trace side is all I need. Clearer if possible. Just a little fuzzy. I lost the trace in about two inches.



[wahoo_wes]

some more



[wahoo_wes]

thats it unless you need something else

---------- Post added at 05:11 PM ---------- Previous post was at 05:10 PM ----------

green side or brown side?
