HID problem

[Krunchy]

Ok so i finally went ahead and ordered hids for my 03 yukon from DDM seen here
http://www.ddmtuning.com/products/DDM_35W_55W_Slim_Ballast_HID_Kit-101-0.html

So they arrived today and i tried to hook them up and i noticed right away there was one piece that didn't look like it belonged it was what looks like an extension of the stock lighting wire and it goes right thru the rubber grommet with the two wires that go into the back of the bulb

So tell me if this is right first i attached the stock wire to the ballast then connected the two male female cords for the hid light to the ballast then put the light into the headlight housing and turned on the lights with no success

Does anyone have any idea where i went wrong or if i need to upgrade my wiring?

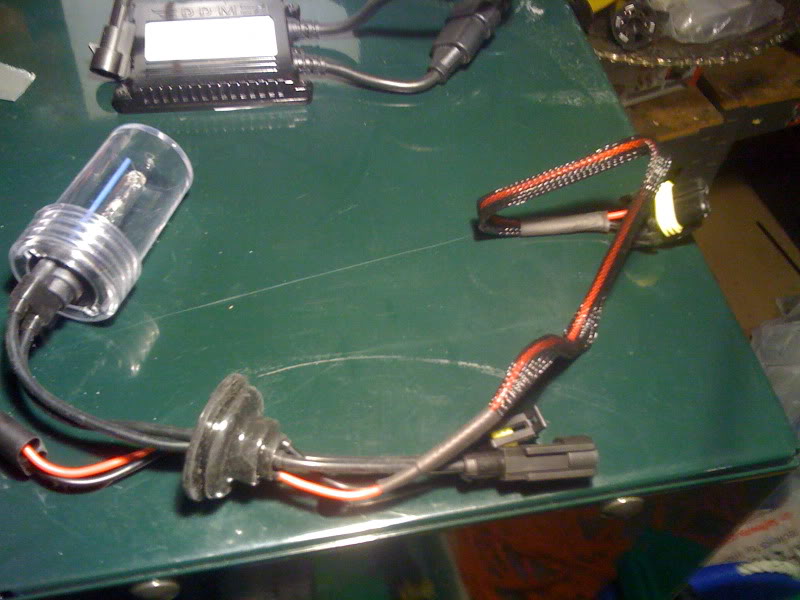

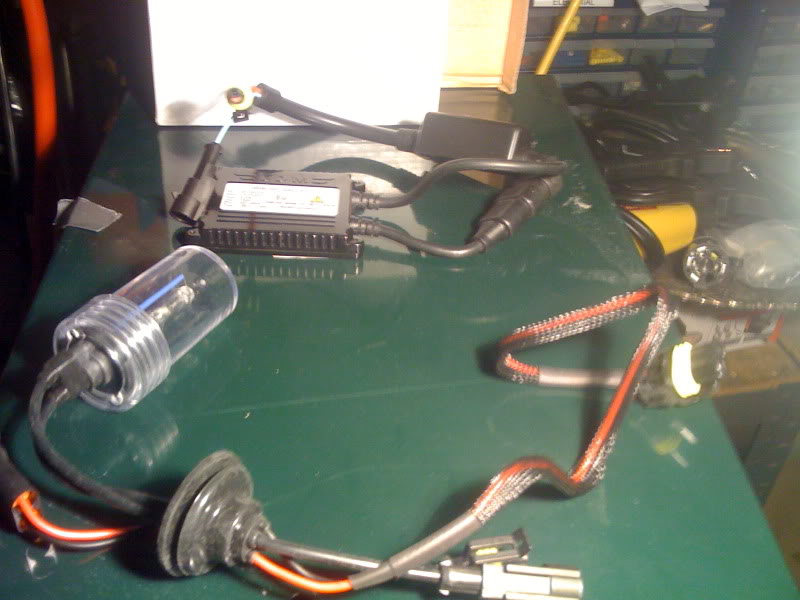

here is what i have



[Rollin Thunder]

ok here is how it works.

HID plugs. Plug in. Stock harness plugs in to the female harness on the bulb. Male harness on the bottom of the bulb goes in to the ballest.



[Krunchy]

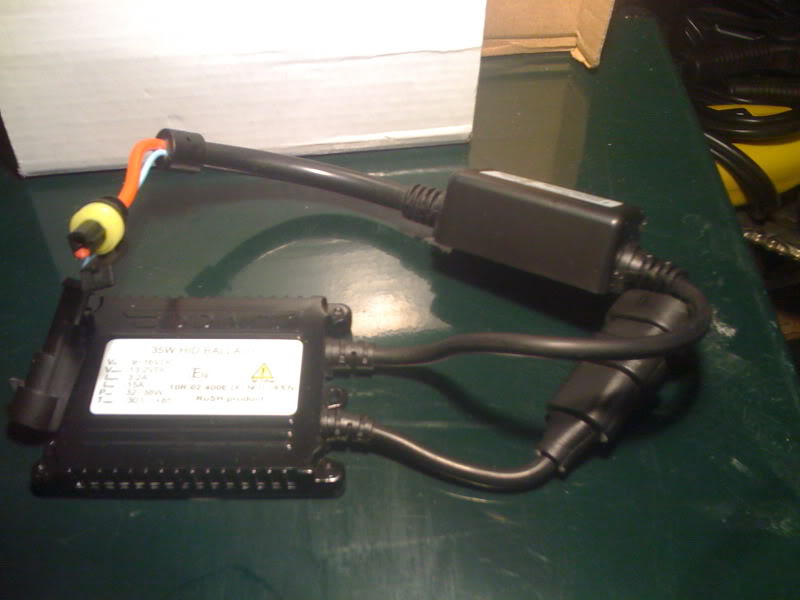

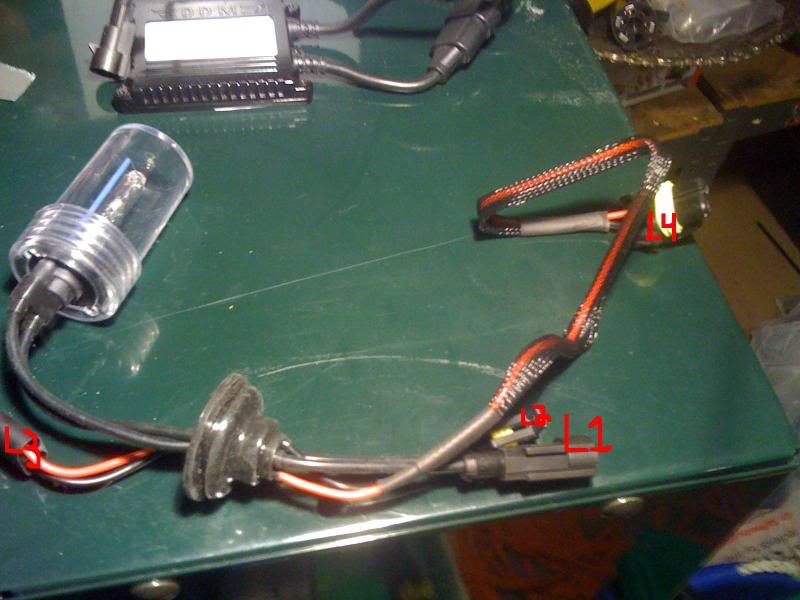

Sorry i still have some confusion i have crudely labeled each connection could you please match them to the proper spot



[danimalmax]

B2 and B3 go with L1 and L2 for sure

L4 should go to B1

and then L3 hooks up to the original stock wire from your car



[blueflamed03]

one plug on each doesn't get used.



[danimalmax]

that doesnt make sense, blue, everything hooked up on my set



[blueflamed03]

not on mine, it came wired for several applications, granted mine is Xenoworx, but should be same principal.



[Chris]

B2 and B3 go with L1 and L2 for sure

L4 should go to B1

and then L3 hooks up to the original stock wire from your car

some do have an extra plug so it will work with various applications, but ddm does not



[danimalmax]

yea i have ddm for my fog lights, so thats how i know where the wires go



[FERGHOE]

When pluging into the balast from your factory harness... Flip the plug over. It's Chinese, everything in china is wired backwards...LOL I'm serious... Chevy's have the power and ground reversed in the plug....mine work good..

---------- Post added at 12:41 PM ---------- Previous post was at 12:38 PM ----------

ditch the l3-l4.... Hook factory to b1...
