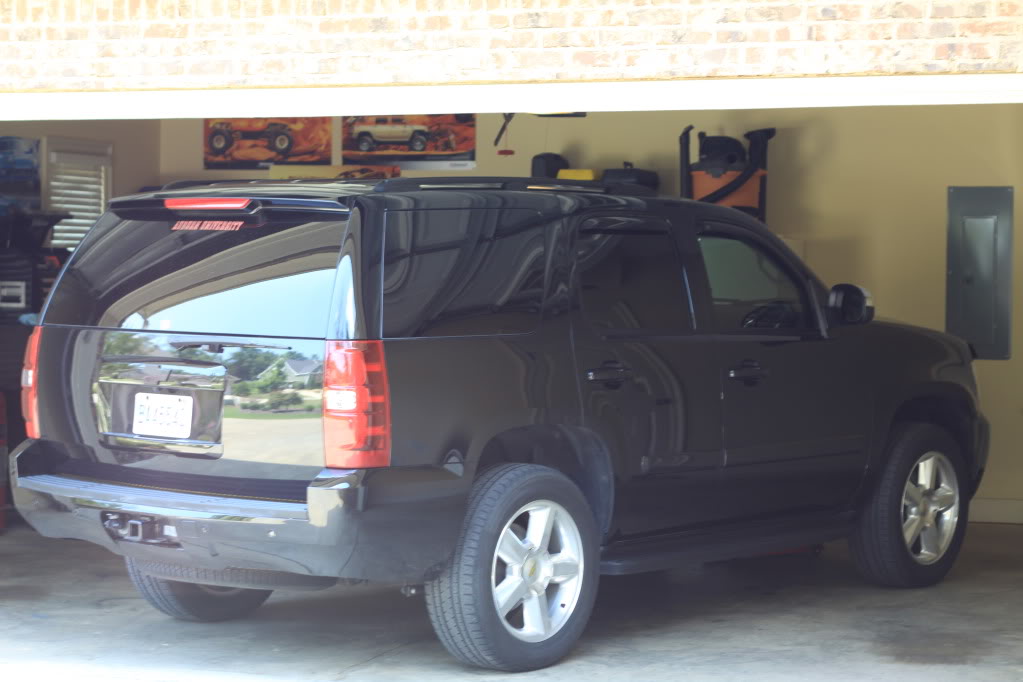

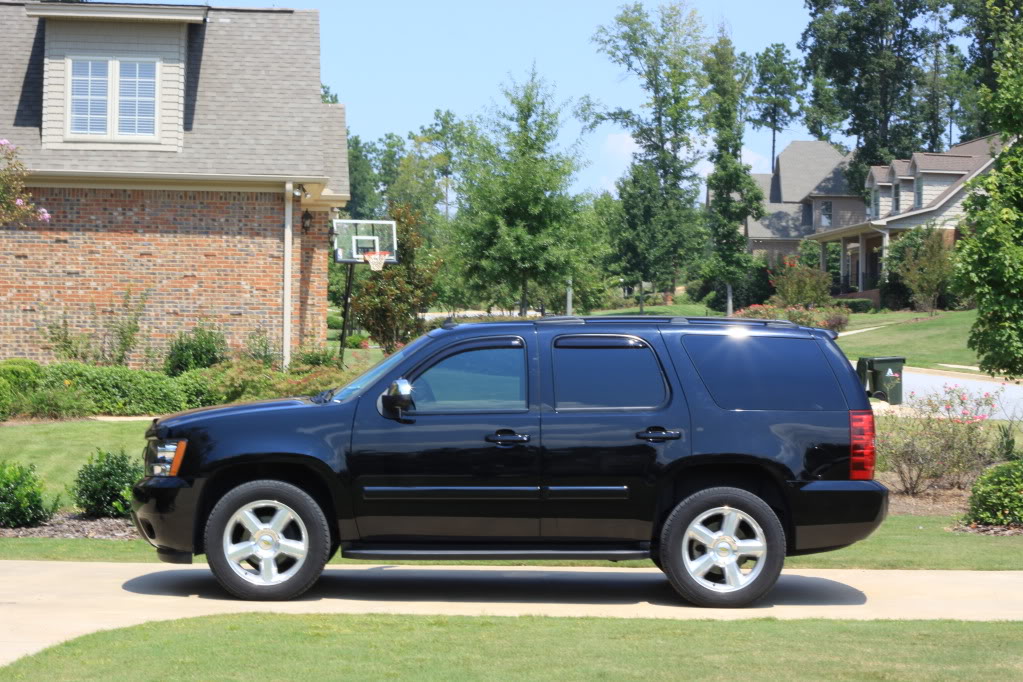

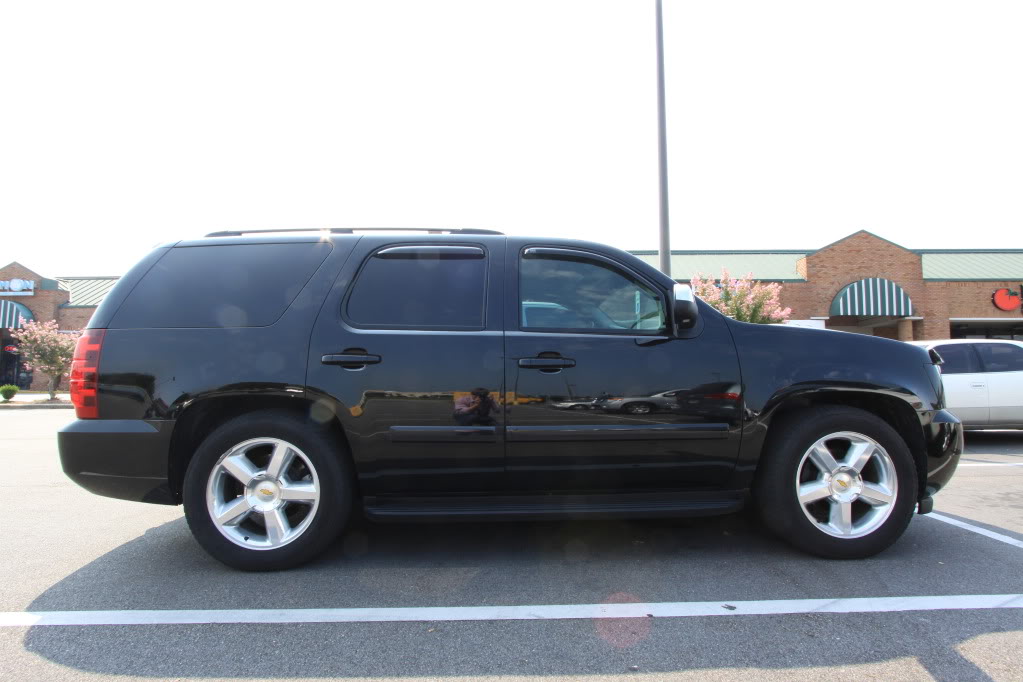

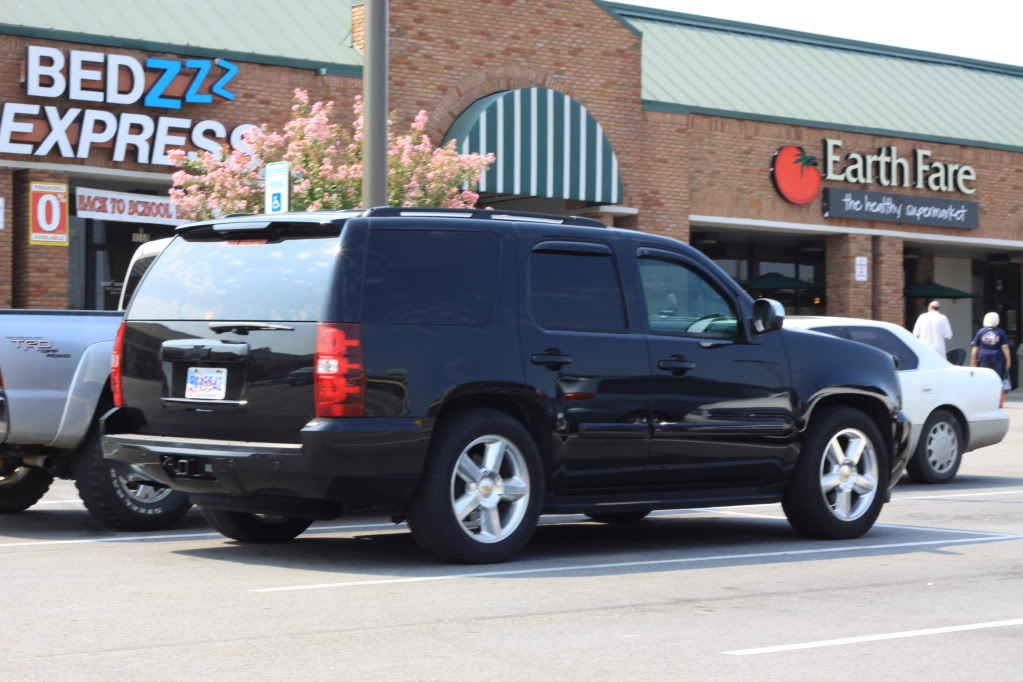

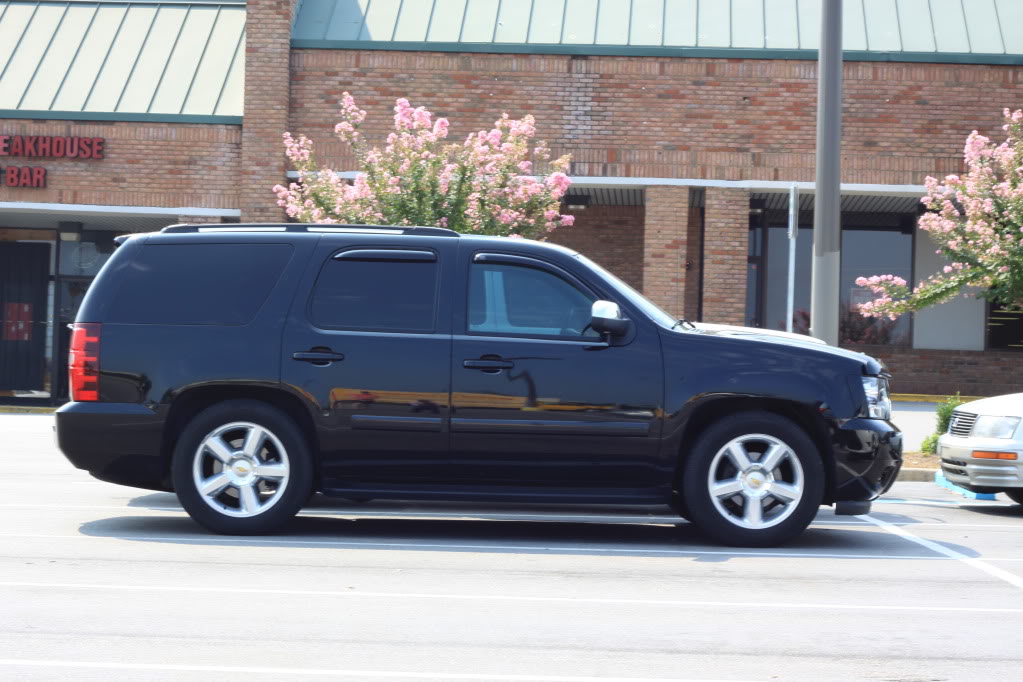

Lowered the 'Hoe today but....
- Thread starter Autbond
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
OP
OP
Autbond
Full Access Member
- Joined
- Apr 25, 2011
- Posts
- 376
- Reaction score
- 2
What size rods do I need to pick up at the hardware store? So it would sit at 3 inches lower in the rear? So should be close to perfectly level?
I may have the autoride links from my kit that were never used. Ill let you know tomorrow. I could just send them out w everything else. Keep you posted
KMeloney
Full Access Member
- Joined
- May 2, 2009
- Posts
- 3,013
- Reaction score
- 379
You might want to read more before tackling this on an Autoride truck. You need to understand how this all works before diving in like this.
The Autoride links tell the truck whether to put air in the rear shocks or not -- and it does this when it senses that the rear is lower. (If you put a bunch of stuff in the rear, or are towing a boat, etc., it'll try to raise the rear so that the truck sits level again.) With no links in place, or the factory links in on a lowered truck, the compressor is going to keep the rear shocks filled with air. It won't let the truck drop. That's why you need to shorten the rear links so that the truck doesn't see that any drop to the rear has occurred.
The length you need your new links to be is something shorter than the stock links. You're going to have to mess with it to get it right. Shorten them a lot, and the truck will never raise the rear -- and that's fine IF the truck sits perfectly like that. Otherwise, you're going to have to mess with the link length to let just the right amount of raising to occur.
You can't just swap out the shocks for non-autoride ones, unless you want constant codes and warnings.
I'd also be more than a little bit concerned if your installer doesn't recognize what shock extenders looks like/where they go. I'm not trying to be disparaging -- I just think you ought to have a drop installed by someone who knows a decent amount about these things.
It's all been discussed here before. Keep asking questions, but check out all of the threads on lowering in the meantime. There's a lot to know.
Good luck!
The Autoride links tell the truck whether to put air in the rear shocks or not -- and it does this when it senses that the rear is lower. (If you put a bunch of stuff in the rear, or are towing a boat, etc., it'll try to raise the rear so that the truck sits level again.) With no links in place, or the factory links in on a lowered truck, the compressor is going to keep the rear shocks filled with air. It won't let the truck drop. That's why you need to shorten the rear links so that the truck doesn't see that any drop to the rear has occurred.
The length you need your new links to be is something shorter than the stock links. You're going to have to mess with it to get it right. Shorten them a lot, and the truck will never raise the rear -- and that's fine IF the truck sits perfectly like that. Otherwise, you're going to have to mess with the link length to let just the right amount of raising to occur.
You can't just swap out the shocks for non-autoride ones, unless you want constant codes and warnings.
I'd also be more than a little bit concerned if your installer doesn't recognize what shock extenders looks like/where they go. I'm not trying to be disparaging -- I just think you ought to have a drop installed by someone who knows a decent amount about these things.
It's all been discussed here before. Keep asking questions, but check out all of the threads on lowering in the meantime. There's a lot to know.
Good luck!
Last edited:
KMeloney
Full Access Member
- Joined
- May 2, 2009
- Posts
- 3,013
- Reaction score
- 379
Whoops! Sorry. There's a Chris here with a similar avatar. Sorry about that! I'll go delete that part.
ChrisAU
Full Access Member
I see whats going on here...
ChrisAU
Full Access Member
Oh dear...
