Quad Retrofit Completed!!!

[YukonXL04]

I built a quad HID projector setup using the factory reflector housing. I had used ebay headlights with a Mini H1 setup for a year, but ultimately got irritated because the headlights didnt fit well nor did they flow with the vehicle.

The setup:
04 Acura TL bi-xenon projectors
Morimoto ZKW-R clear lens
XB35 5500k D2S bulbs
VVME 55w ballasts (Temp until new XB55 ballasts come out.)
Morimoto HD relay harness
Gatling Gun V1 shrouds

Generic Mini H1 bi-xenon projectors
3five 5000k H1 bulbs
3five 35w Morimoto Ballasts
Morimoto HD relay Harness
Gatling Gun V1 Shrouds

Factory reflector Headlight housings painted satin black.
Ebay Clear lens replaced factory fluted lens

Pics!

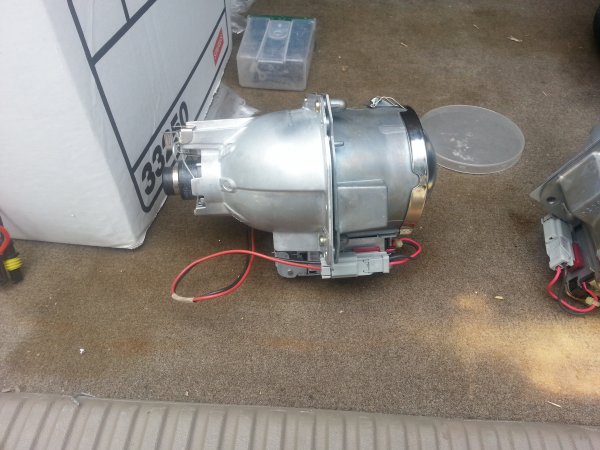

Here are some pics of a mini h1, depo Denali, and the TL.






ZKW-R Clear lens and Gatling Gun V1 Shrouds

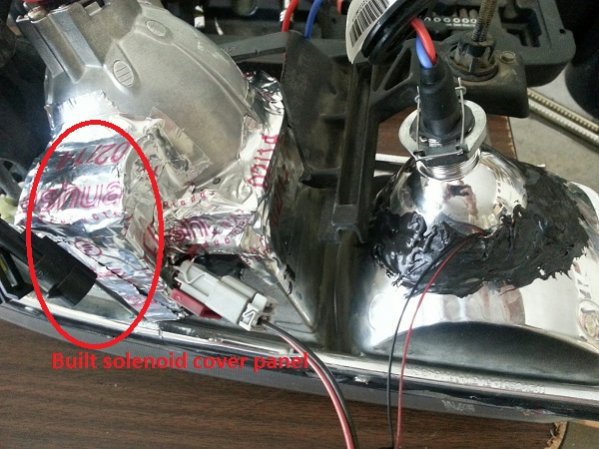

In progress!

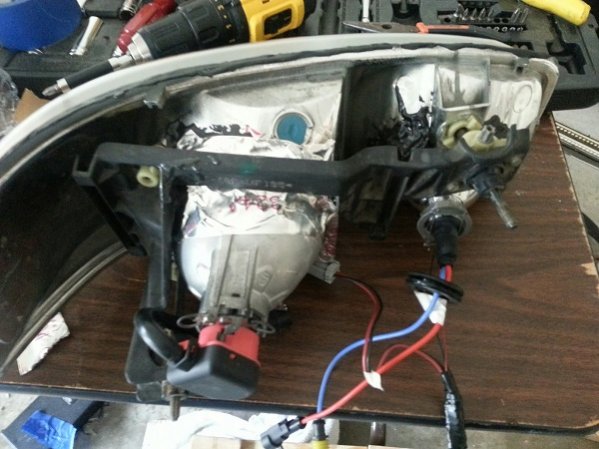

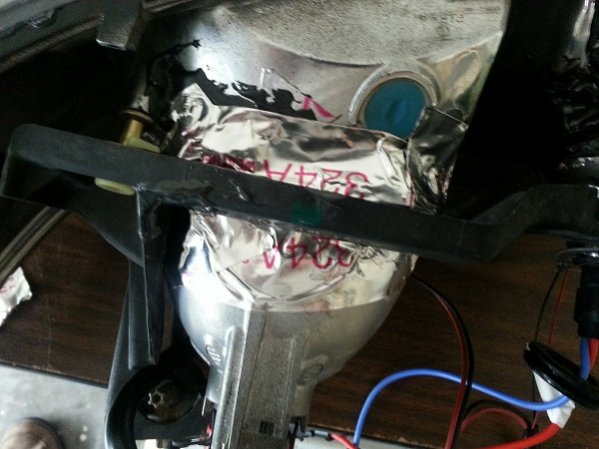

Here are the backside pics as promised.

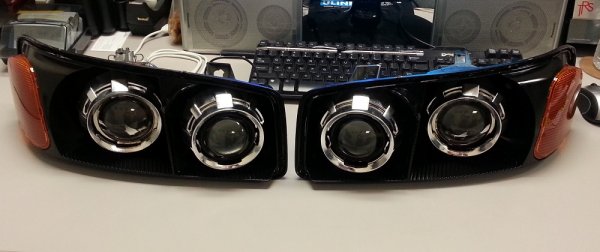

Final Assembly.






Daytime shot.

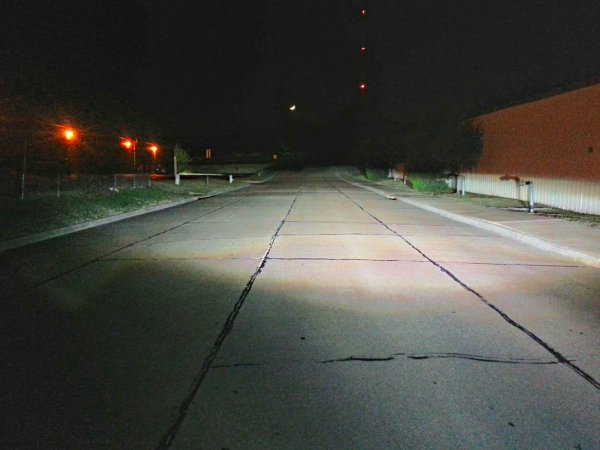

Here are some output shots. I haven't had time to get a good camera so your gonna have to settle for my S3.

TL only.

MH1 only.

Quad 1

Quad 2

Quad 3

Quad Highs







Quad Low

TL only

Quad close

Quad High


Tweaked them some to get them closer to level. Just a hair off now. ALMOST there!
25ft from wall. Quad lows

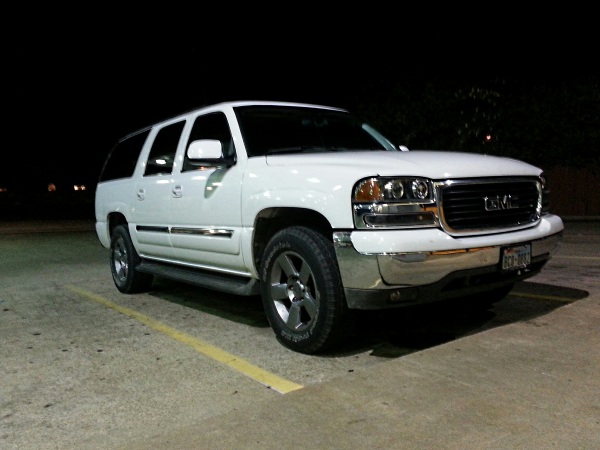

Couple pics from the other night.



[NathanJax]

Hard decision. I like chrome on white (unless you completely do the storm trooper look)



[Mister H12]

Black housing with white shrouds!



[Big Buttons]

Another vote for black housing with white shrouds.



[YukonXL04]

I dunno about black with white shrouds.. Anyone better with Photoshop than me wanna give it a shot?

http://blackflamecustoms.com/wp-content/gallery/07-13-gmc-sierra/mike_gmc_sierra_quad_halo (9).jpg



[Goodinblack]

Sorry haha



[Mister H12]

The shroud may not be the same style but.. just something quick to go by



[YukonXL04]

Hey Wesley. Thanks for that. Adds even more options lol. Your much better at that than I am.

Hey Lee, what's up with the pic?



[Big Buttons]

Hey Lee, what's up with the pic?

Probably drunk again...



[chrisreed822]

X3 for black with white shrouds!!
