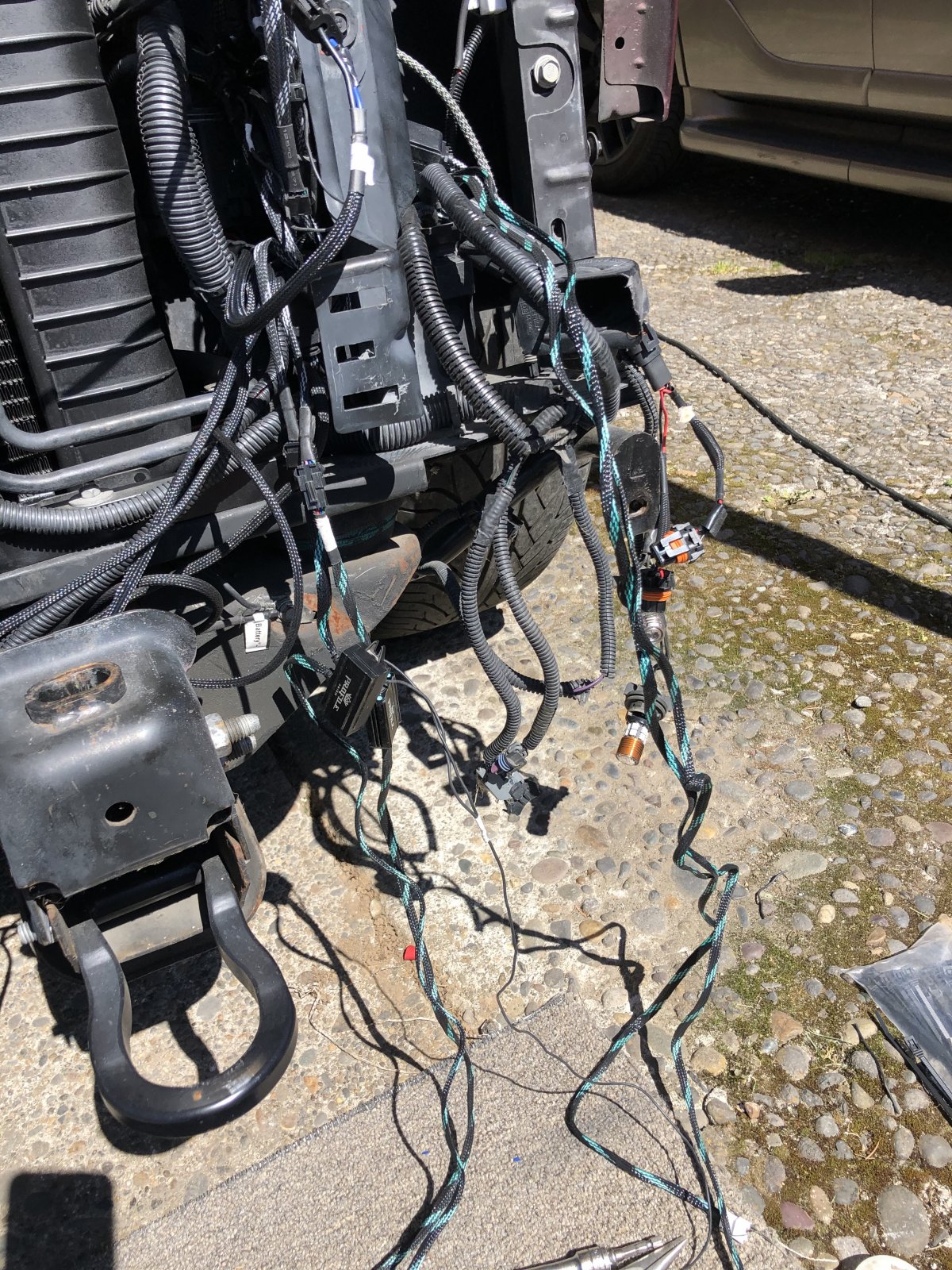

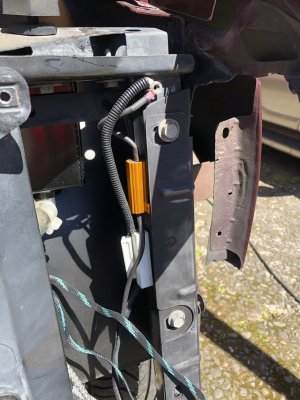

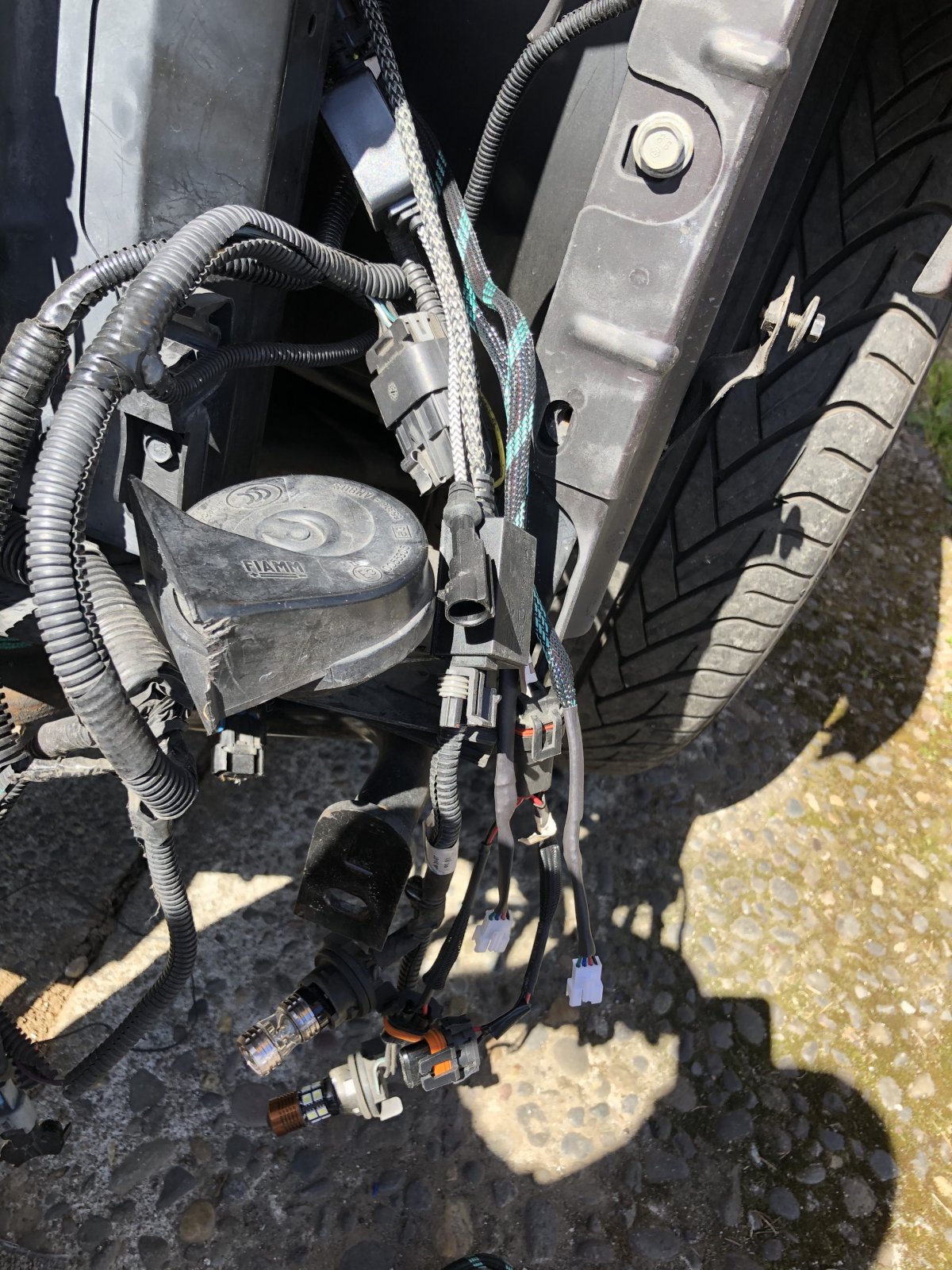

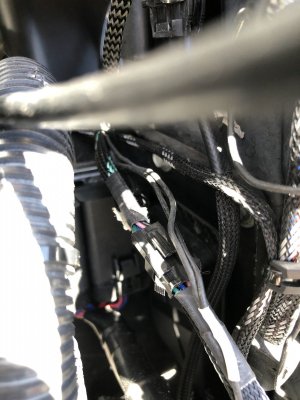

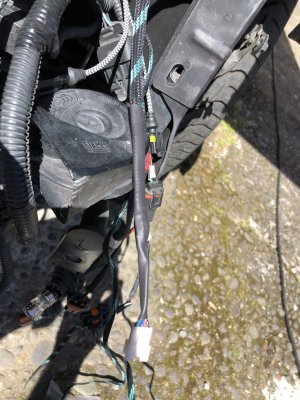

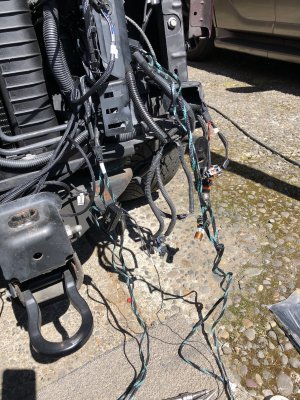

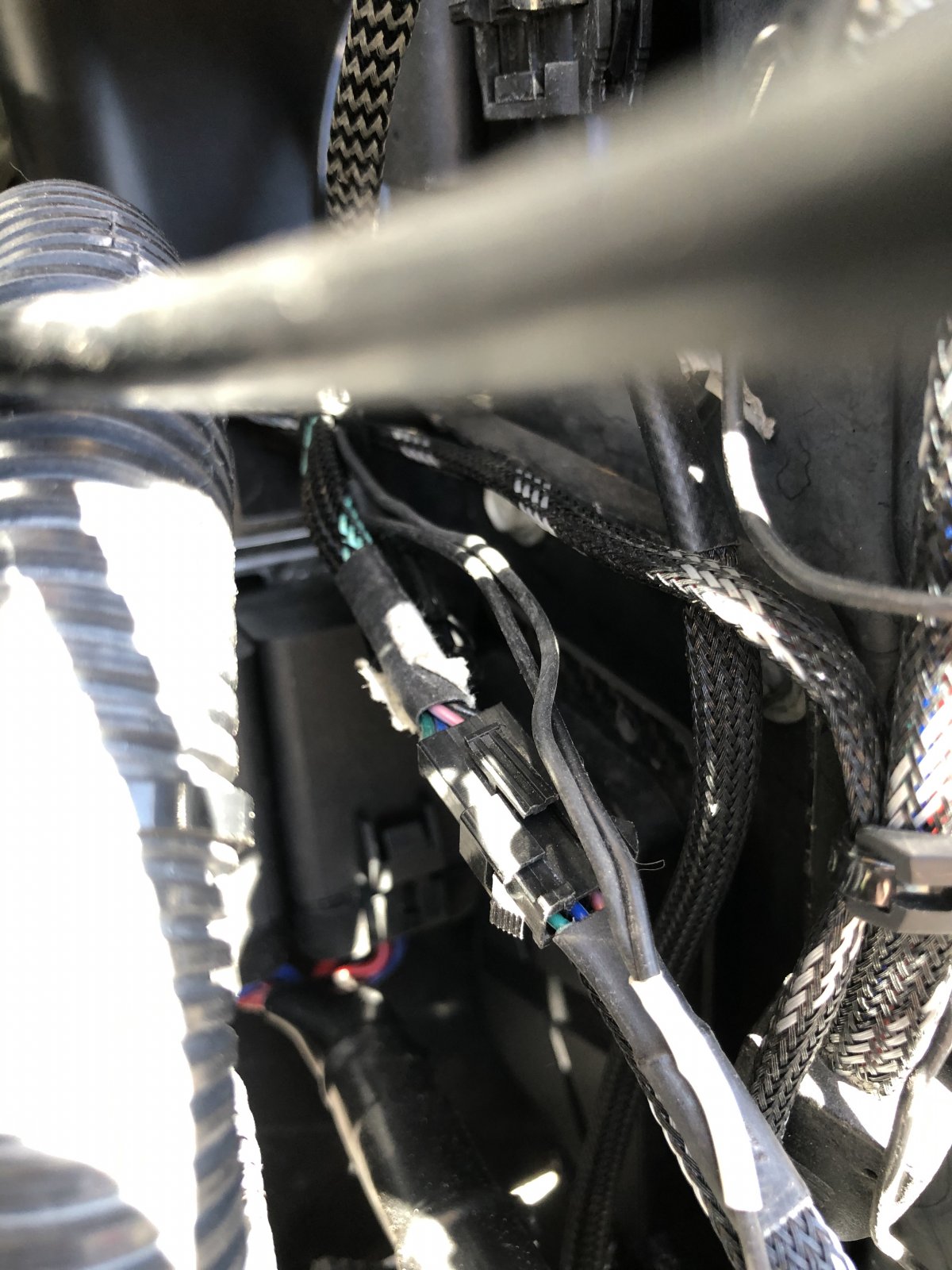

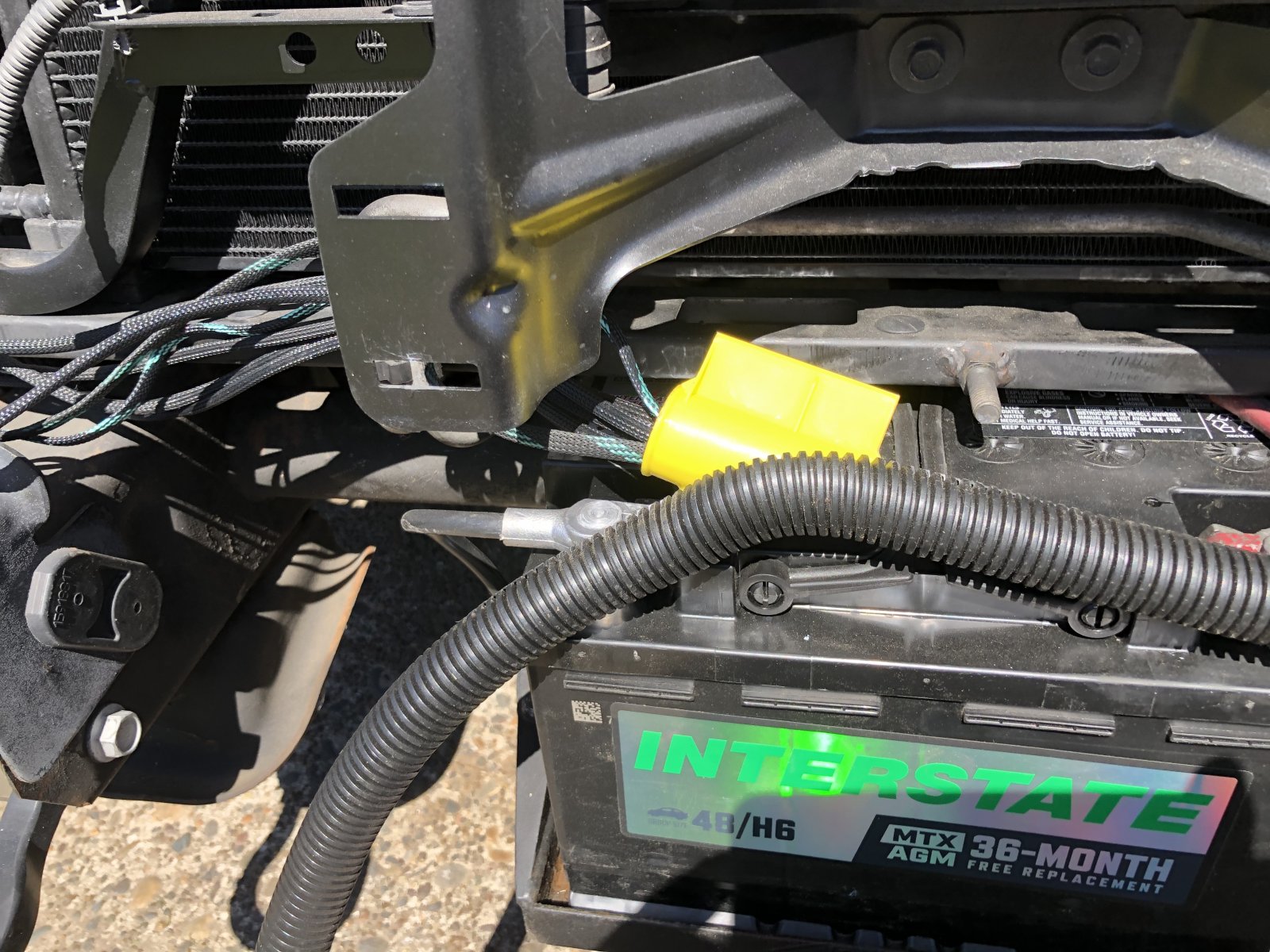

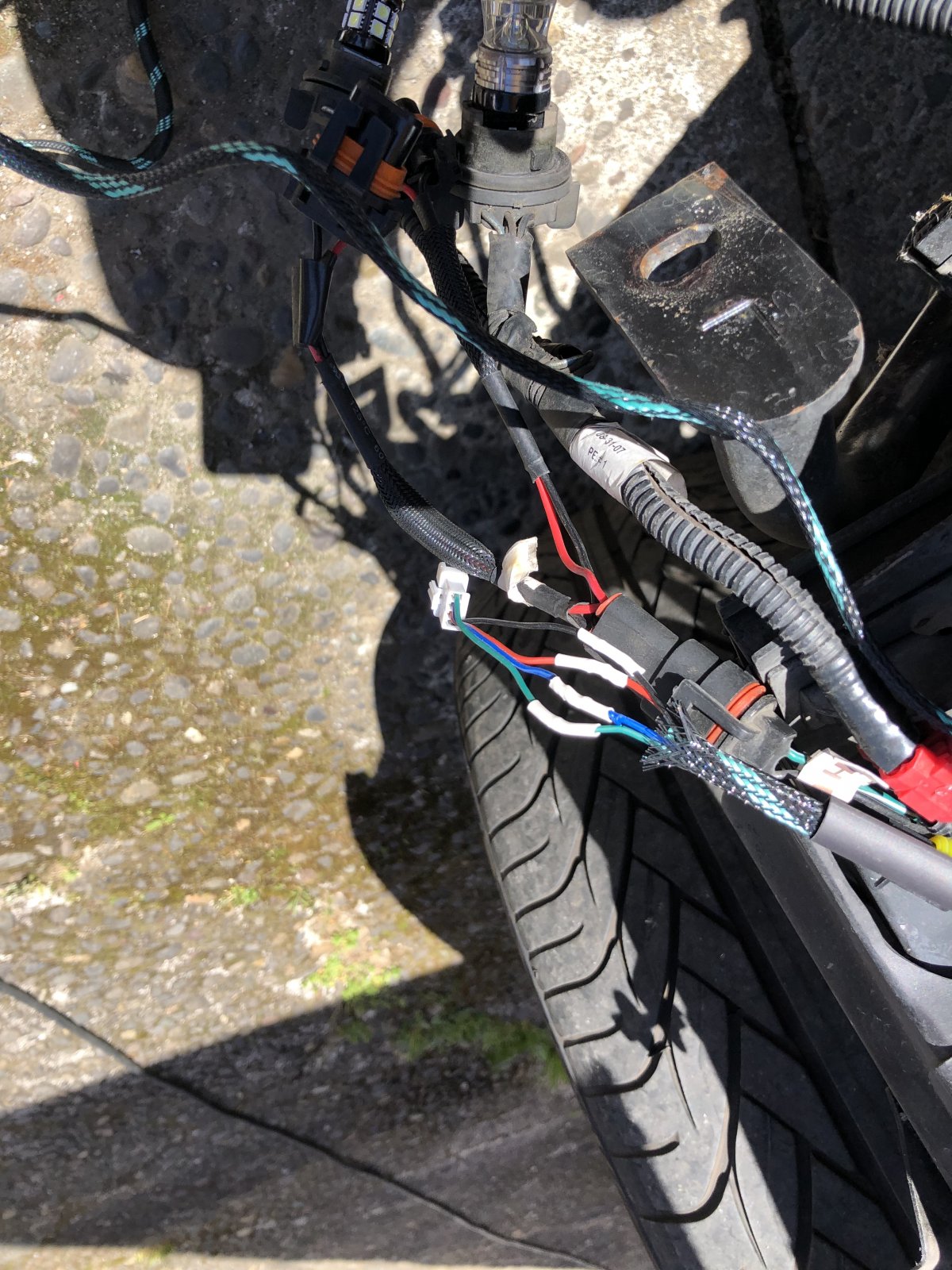

Today I made a harness to run an Esky cluster in it. Thanks to @fiatdale for the parts and pinout diagram. The truck side needed to have the wires soldered onto those tiny pins and heat shrink added and the Esky cluster side had pins that are crimped onto the wires, inserted into a plug, and slid into the connector. I had all the tools and have done similar projects on my Harleys. I used braided split loom and had just got some woven tape that I used for the ends; the same tape they use on OEM looms. I think it came out nice. Now I need to buy a cluster and have the mileage programmed in it.
