Austinite's 2000 NBS Tahoe Ex-Grocery Hauler Build

[05Single]

Dats alotta lite.
Amber looks good



[RGA1215]

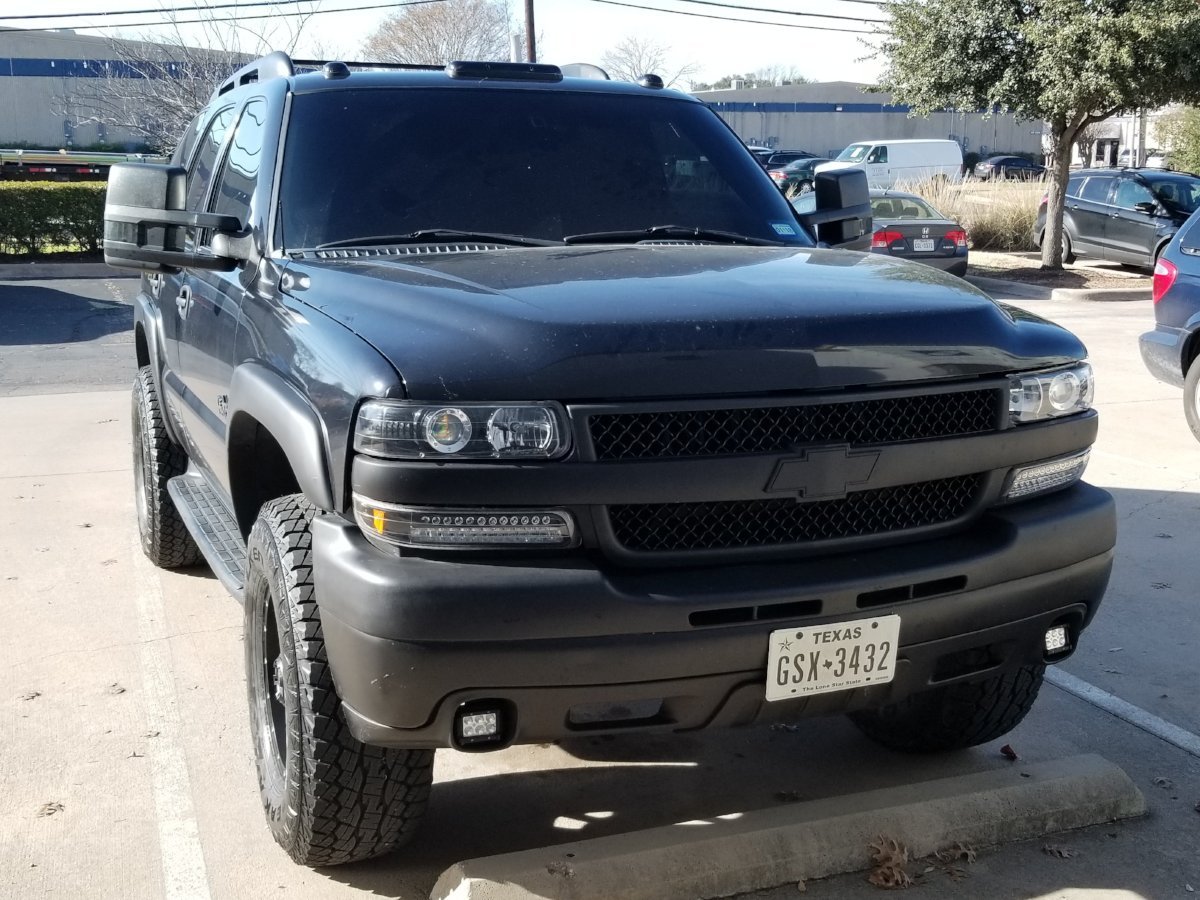

Nice truck! Those cab lights are really cool! Out of curiosity where did you find your Z71 roof rack? Also how do you like the ride with the Bilstein 5100’s and Z71 coil springs?



[Austinite]

Dats alotta lite.
Amber looks good

Haha, yeah it's probably too much, but I couldn't figure out what to do with those holes where the tow hooks were. Oh well.



[Austinite]

Nice truck! Those cab lights are really cool! Out of curiosity where did you find your Z71 roof rack? Also how do you like the ride with the Bilstein 5100’s and Z71 coil springs?

Thanks, brotha. I actually got it from a kid in town that was driving a wrecked Z71 and needed some cash for a ski trip. So I gave him my old rack and like $100 I think. I love the Bilsteins and Z71 coils, the truck rides like new. Couldn't be happier with a 240k mile truck.



[Austinite]

Here's the new DeeZee 3D Molded Dash Kit I bought on eBay for like $100. Overall I'm pretty happy with it. The dash part didn't fit 100%, but I think that's because I have the Metra Kit for the 00-02 Double Din. The doors and window/lock panels fit great.



[Austinite]

Finally did the 02 Escalade A/C Knob swap. I have the overhead front & rear a/c and the headlight knobs coming in the mail too. While I was at it I did the 08-14 shifter swap too. Pretty easy and looks great, it just moves it a little lower when you put it in drive so I can't rest my hand on it when I'm messing with the stereo now. Oh well...trade-offs I suppose.



[Austinite]

Installed this RoadRover Dash Cam that works through the wifi on my head unit. I ordered too big of an SD card (64gb vs 32gb) so I'm waiting on the new one to come in before I can completely test it. So far it seems like it's gonna work pretty good though.



[Austinite]

I'll try to post a few more front, rear, and side pics of this later, but here's a quick side profile shot with the 3" Lift Spindles in front, 3" Lift Spacers and 2" Hub Centric Wheel Spacers in the rear. I guess I'm gonna have to get one of these Panhard Bars for the rear, cause the 3" lift spacers are definitely pushing the passenger side tire out about an inch or so.



[Austinite]

After reading a ton of info on headers, LT and short, I finally pulled the trigger on a long tube kit with y-pipe and high flow "cats". Since this thing is more or less a budget build, I went with a cheap set of these eBay headers which apparently are supposed to be knock-offs of the OBX Racing LTs. I went ahead and bought some stock AC Delco exhaust manifold gaskets, ARP header bolts, stainless band clamps, plug wire heat sleeves, and 3 sets of those Dorman exhaust manifold repair clamps since apparently a few bolts were already broken off before I got there to break 'em myself. Anyway, other than the broken bolts the install went pretty easy and the cheap kit mounted up damn near perfectly. I already had a Flowmaster 10 Series welded up, so needless to say it sounds nasty af. I Couldn't be happier, but I guess time will tell how they hold up.



[Tonyrodz]

Truck is looking good. Headers look good. Wish I had the catted y pipe for mine. Looks like you're 2wd?
