Im not sure yet on the handles I still haven't decide which way my truck is going to go. More street or more rugged look and that will determine the handles.
Also I just got done doing the esky handle. Before I say anything my phone died and I was using that as a camera so no mid install pics, which I will get to in a second. At first it looks like an easy mod. Shift into neutral, with the truck off of course. Put on the park brake. Remove the rubber boot around the shifter and remove one hex nut and the shifter slides out. This is where the easy part ends. At this point you need to disconnect the shifter wires from the wiring harness, which by the way is way the **** up under the dash. At first I leaned under the dash like a gymnast trying to see where it plugged in, finally saw it but couldnt reach for it and see it at the same time. So i started blind searching with my hand, don't lie we've all done it. And some how got it unhooked. Don't ask me how cause its a small ass clip and you really need a screw driver to do it. So i get that unhooked and remove the older shifter.
Shit.
The plugs on the shifters are not the same, of course I found this out after reattaching the new esky shifter to the mount and trying to plug it in blindly again. DOH! It wasn't working something wasnt right. I pulled it back out and examined the two plugs. They are straight up different sizes and use different sized pins so I couldn't just remove the wire pins and change them over to the new plug. The Tahoe uses big pins and the esky uses small ass ones, comparative to most esky owner's dick size. HA! Anyways back to the shift cable. I grew some balls and chopped off both the male plug on the esky shifter and the female plug on my trucks wiring harnessss! Geeez I was sweating balls when I did that. Brand new truck and im cutting up the wiring harness! Anyways I used some butt splice connectors.. These guys
Connected the wires together. I turned on the truck and for some reason the tow haul was already on and the button didnt turn it off. Guess I had the wires backwards. Flipped the wires and it works! I was happy. Crimped off the butt splices and tucked everything back in. Of course this was after I removed the lower dash piece because there was no way this was going to happen without removing it. If I had known and done that from the first place it would of been much easier. Now I know some of you are going to ask why didnt i chop off the old plug and splice it on my new shifter well one of the wires accidently ripped out of the pin hole and it was done at that point.
Overall this mod took me 2 hours. But now that I have done this mod it could easily be done in under and hour with my guidance. As far as the shifter buttons, I did not install those yet, although my truck did have the wiring for them, that task can wait for another day. I absolutely love the look and more so the feel of the leather instead of the hard black plastic. Can't wait to see it tomorrow in the sun.
Once my phone is back up I'll snap a pic.
---------- Post added at 03:24 AM ---------- Previous post was at 02:37 AM ----------
Just direct uploaded these, I'm tired as hell hope this helps you guys. If anyone wants I can help them do this mod, it's not hard just was for me since being the guinea pig.
Also I just got done doing the esky handle. Before I say anything my phone died and I was using that as a camera so no mid install pics, which I will get to in a second. At first it looks like an easy mod. Shift into neutral, with the truck off of course. Put on the park brake. Remove the rubber boot around the shifter and remove one hex nut and the shifter slides out. This is where the easy part ends. At this point you need to disconnect the shifter wires from the wiring harness, which by the way is way the **** up under the dash. At first I leaned under the dash like a gymnast trying to see where it plugged in, finally saw it but couldnt reach for it and see it at the same time. So i started blind searching with my hand, don't lie we've all done it. And some how got it unhooked. Don't ask me how cause its a small ass clip and you really need a screw driver to do it. So i get that unhooked and remove the older shifter.
Shit.
The plugs on the shifters are not the same, of course I found this out after reattaching the new esky shifter to the mount and trying to plug it in blindly again. DOH! It wasn't working something wasnt right. I pulled it back out and examined the two plugs. They are straight up different sizes and use different sized pins so I couldn't just remove the wire pins and change them over to the new plug. The Tahoe uses big pins and the esky uses small ass ones, comparative to most esky owner's dick size. HA! Anyways back to the shift cable. I grew some balls and chopped off both the male plug on the esky shifter and the female plug on my trucks wiring harnessss! Geeez I was sweating balls when I did that. Brand new truck and im cutting up the wiring harness! Anyways I used some butt splice connectors.. These guys
Connected the wires together. I turned on the truck and for some reason the tow haul was already on and the button didnt turn it off. Guess I had the wires backwards. Flipped the wires and it works! I was happy. Crimped off the butt splices and tucked everything back in. Of course this was after I removed the lower dash piece because there was no way this was going to happen without removing it. If I had known and done that from the first place it would of been much easier. Now I know some of you are going to ask why didnt i chop off the old plug and splice it on my new shifter well one of the wires accidently ripped out of the pin hole and it was done at that point.
Overall this mod took me 2 hours. But now that I have done this mod it could easily be done in under and hour with my guidance. As far as the shifter buttons, I did not install those yet, although my truck did have the wiring for them, that task can wait for another day. I absolutely love the look and more so the feel of the leather instead of the hard black plastic. Can't wait to see it tomorrow in the sun.
Once my phone is back up I'll snap a pic.
---------- Post added at 03:24 AM ---------- Previous post was at 02:37 AM ----------
Just direct uploaded these, I'm tired as hell hope this helps you guys. If anyone wants I can help them do this mod, it's not hard just was for me since being the guinea pig.
Last edited:
GalaxyBlackEsky
BlackedoutLT3
So will you be able to get the shift up and down to work with the 07 tahoe.. because I know since my dad has it on 10 tahoe that the dash display only has I think PNDM..
felixgun
Full Access Member
Looks great man. $100 well spent I'd say!
I doubt it will work and they just have it wired that way for simplicity with other truck packages. My truck obviously has the PRND321 listed and shift slots for each so I highly doubt it.
I'm still trying to get the esky brake light situation fixed as well as waiting on a couple other parts which I thought were going to get here this week but should by next at the latest.
I also should be getting my tax return in a few weeks which actually is supposed to be $3500 donks. Which means new wheels. I'm thinking stock chrome 20's with black bowties.This way if I still decide to go the lifted route it wont look dumb. My second option is stock 22's.
---------- Post added at 03:32 AM ---------- Previous post was at 03:28 AM ----------

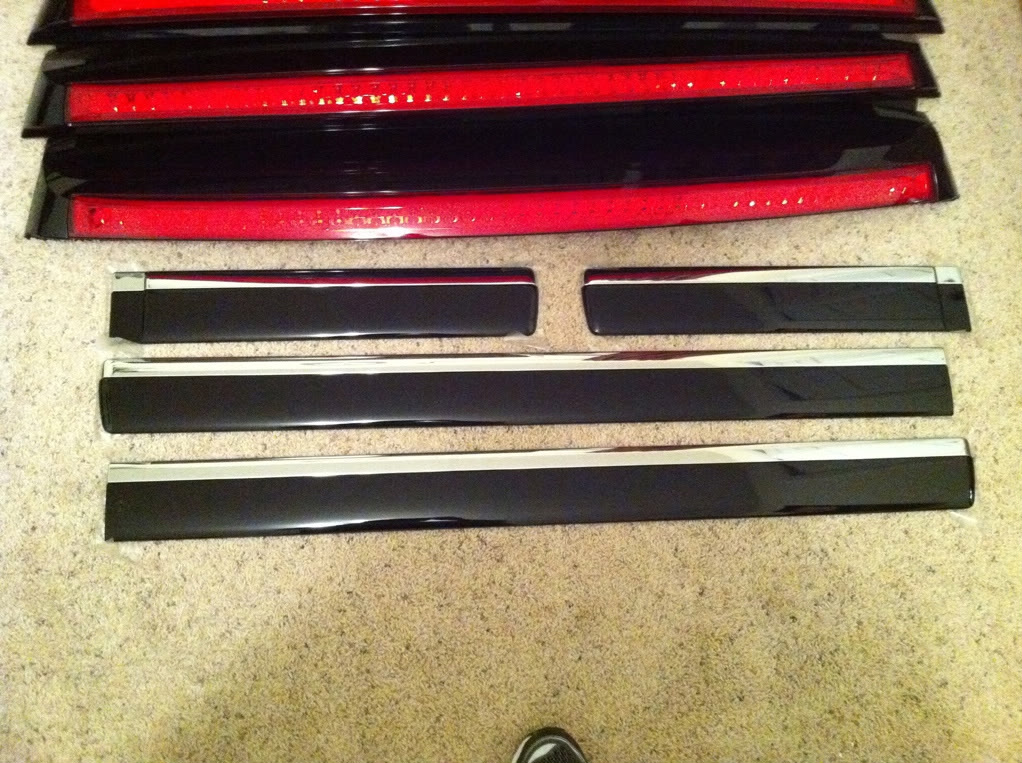

And since I have two esky third brake lights at the moment with a third on the way, I may open one up and see if I can modify the led panel to work all the way across.
felixgun
Full Access Member
Nice. The Chrome stock 20's are hard to find. Alot of polished ones around but not too many chrome but yea that would def look sick. Stock 22's is def the way to go. If someone ever wants to buy these rims from me i'm buying some stock 22s too! GREAT idea about the esky 3rd brake light. Zach was thinking you could buy the putco esky 3rd brake light and take a heat gun to take off the chrome plated plastic cover over the LED's and replace it with the stock esky clear red plastic cover and heat it back on top of the putco led's (which go all the way across)... it would be nice to see someone do that
felixgun
Full Access Member
in the pics above, that's exactly how i got mine and it got there fine... obviously bad UPS needs to up their service game and quit ******* packages up
felixgun
Full Access Member
you think? seller has very legit feedback and sent me a brand new one in mint condition without a single scratch or knick on the whole thing... and i'm pretty damn OCD about stuff like this so i'd def let you know.. oh well hope the 3rd one works out
Well the only reason I think it was sent out this way was because it was wrapped pretty damn good and the way that they were messed up couldnt have been from being shipped because one of them looked like it had been rubbed on something not dropped or hit.
