DIY: High Flow Stock Airbox (Swiss Cheese Mod)

[ypsetihw]

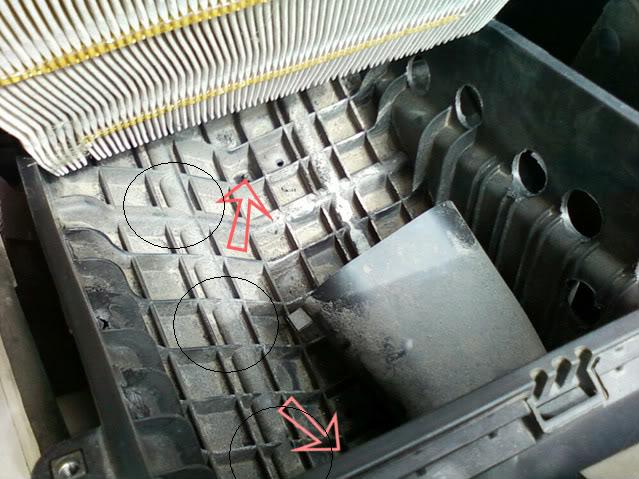

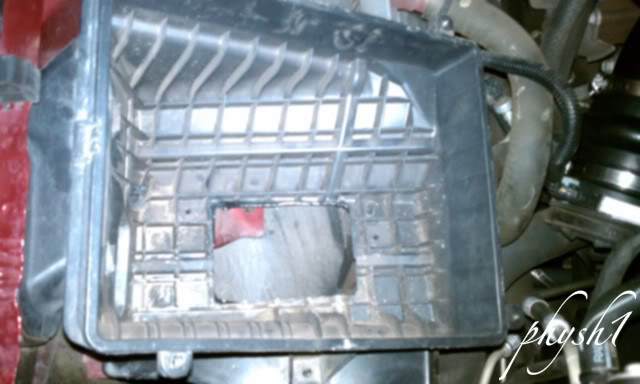

yeah the holes are on the bottom with the filter above, your airbox pulls clean air from the TOP half of the airbox . . . go look at it carefully and you'll see - cut the holes in the BOTTOM/DIRTY half of the box only like so


[ Clean Side ] > Intake/MAF
-----Filter------
[ oo Dirty Side oo ]



[highrollin113]

*this is just my opinion not science*.

"as such, putting some sort of forced induction "snorkel" on the intake prolly isn't gonna help you any, because after you vent the airbox, the restriction then lies in the stock, pre-TB baffling. even if a snorkel helped, you'd prolly need an engine tune to take advantage of it, and opening up and smoothing the baffling between the MAF and TB would give you a much greater benefit than putting a ram-air setup in front of the filter."

hey yp i am wondering how to open up and smooth the baffling between my maf and tb, i boought some 3" pvc today but my idea is a no go, do you know anyone who has done so? is there pics?



[ypsetihw]

hey yp i am wondering how to open up and smooth the baffling between my maf and tb, i boought some 3" pvc today but my idea is a no go, do you know anyone who has done so? is there pics?

I've seen short ram setups available on ebay that have a silicon elbow from the TB, to a big long straight piece of aluminum pipe, to the MAF, and then a cone filter with a bracket to hold it in place. these things go for around $90 shipped, but I bet you could build one with PVC - biggest trouble is getting an elbow short enough to clear the fan shroud, or modding that appropriately



[highrollin113]

i have a new idea of something i might try, lol, i know i should just get a cai but using my ideas is funner and fills my time, so im thinking of slicing into the starts of the baffle tubes and placing some cardboard for a temporary block then on the baffle side filling it with hardning foam so the air will have a straight direction from maf to tb, think this will work???



[Anthony]

I've seen short ram setups available on ebay that have a silicon elbow from the TB, to a big long straight piece of aluminum pipe, to the MAF, and then a cone filter with a bracket to hold it in place. these things go for around $90 shipped, but I bet you could build one with PVC - biggest trouble is getting an elbow short enough to clear the fan shroud, or modding that appropriately

The filter is going to run you $40-50. Spend the extra $$ and get the complete set-up and it will look OEM



[highrollin113]

i was thinking about getting the spectre 9900 for $88 but they wont ship to Canada



[dropmech]

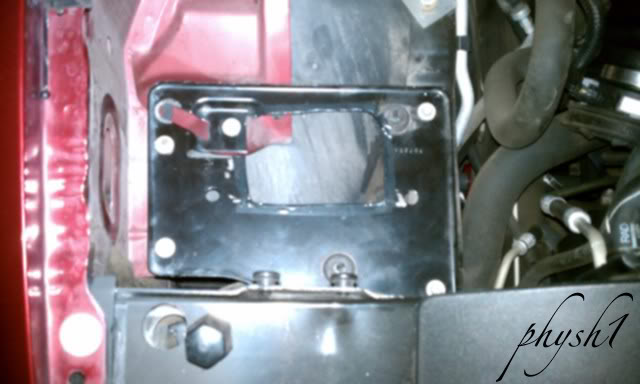

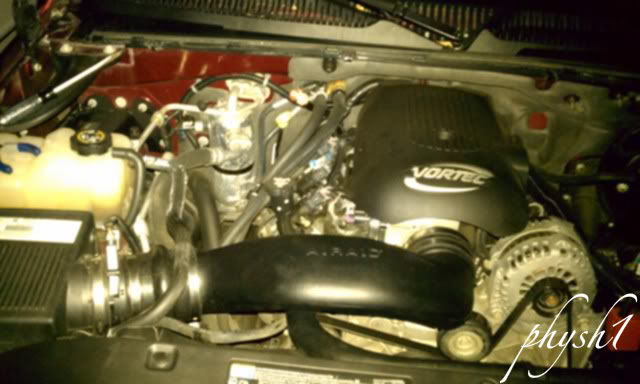

Just did this tonight at work. I'll have to wait to get it on the road until I'm off duty tomorrow afternoon.



[ypsetihw]

i have a new idea of something i might try, lol, i know i should just get a cai but using my ideas is funner and fills my time, so im thinking of slicing into the starts of the baffle tubes and placing some cardboard for a temporary block then on the baffle side filling it with hardning foam so the air will have a straight direction from maf to tb, think this will work???

dude I dunno highrollin . . . you are pushing it . . . this starts to get into a discussion of why the pre-TB baffling is there . . . the whole reason the intake is designed with all that pre-TB baffling is that the engineers are WELL AWARE that the stock intake box is lacking in airflow, particularly when you're starting out from low RPM, when the engine needs to make a lot of torque and can't bother to be sucking all that air fresh.

to combat this, they many cars have a ridiculously baffled pre-TB component that drastically increases the volumetric storage capacity of the intake plenum, meaning more clean air available pre-TB when you first start out.

the problem with this setup is that under high load high RPM situations, the engine really needs the flow to stabilize so that it can create a smooth "sucking" action through the intake tract. the extra stock baffling SERIOUSLY disrupts airflow at high RPM, but is still useful for a stock engine down low.

the compromise is a large diameter smooth tube, like the one described above, that allows for sufficient "stored" clean air at idle and when getting started, while majorly improving the airflow at high speed.

so . . . to your question - just modding out the stock baffling on the pre-TB plenum is probably only going to restrict it more. you either need open up and straighten out the entire thing, or leave it alone.

---------- Post added at 10:09 PM ---------- Previous post was at 10:09 PM ----------

just a little further evidence - I didn't really explain any of this to my GF who drives the t-hoe on a daily basis, and she did mention to me that "it seems to pull better up hills"

free mod AND she likes it mission accomplished



[highrollin113]

thanks im just looking to squeeze every bit i can for free and well i like coming up with these crazy ideas just i dont know if they will work, i think i will leave it alone till i can figure away to get a spectre out of the states



[ypsetihw]

know if they will work, i think i will leave it alone till i can figure away to get a spectre out of the states

if you want I can order it for you and then ship it directly . . . you'd obviously have to pay the shipping charges, but I'm down to forward some freight
