Finally got my lift done! I decided to go with a basic set of keys up front, Z71 springs in the rear rather than a spacer (my Suburban is an LT so the Z71s are taller), Bilstien 5100's all around and just to be on the safe side, new sway bar end links up front.
A friend from another board (Expedition Portal) came over on the weekend of 9/24 to help me install the kit. We got the rear end done in less than 2 hours, moved on to the front. Got the shocks and sway bar ends but could NOT get the T-bar keys out no matter what we did! I should point out my truck spent its first 8 years in Wisconsin and has some pretty significant surface rust. Apparently the keys were rusted to the bars.
So, I threw in the towel and took it to a shop. They ended up putting it on the lift and using an air hammer (and lots of PB blaster) and finally got them loose. Since there was so much rust I went ahead and replaced the bolts and the nuts (retaining plate) for the T-bar keys as well.
I took measurements before and after. Before measurements were about 35" at the front fenders, 36.5" at the back and 13.5" at the bottom of the trailer hitch.
After measurements were 37" front, 38" rear and almost 15" at the hitch.

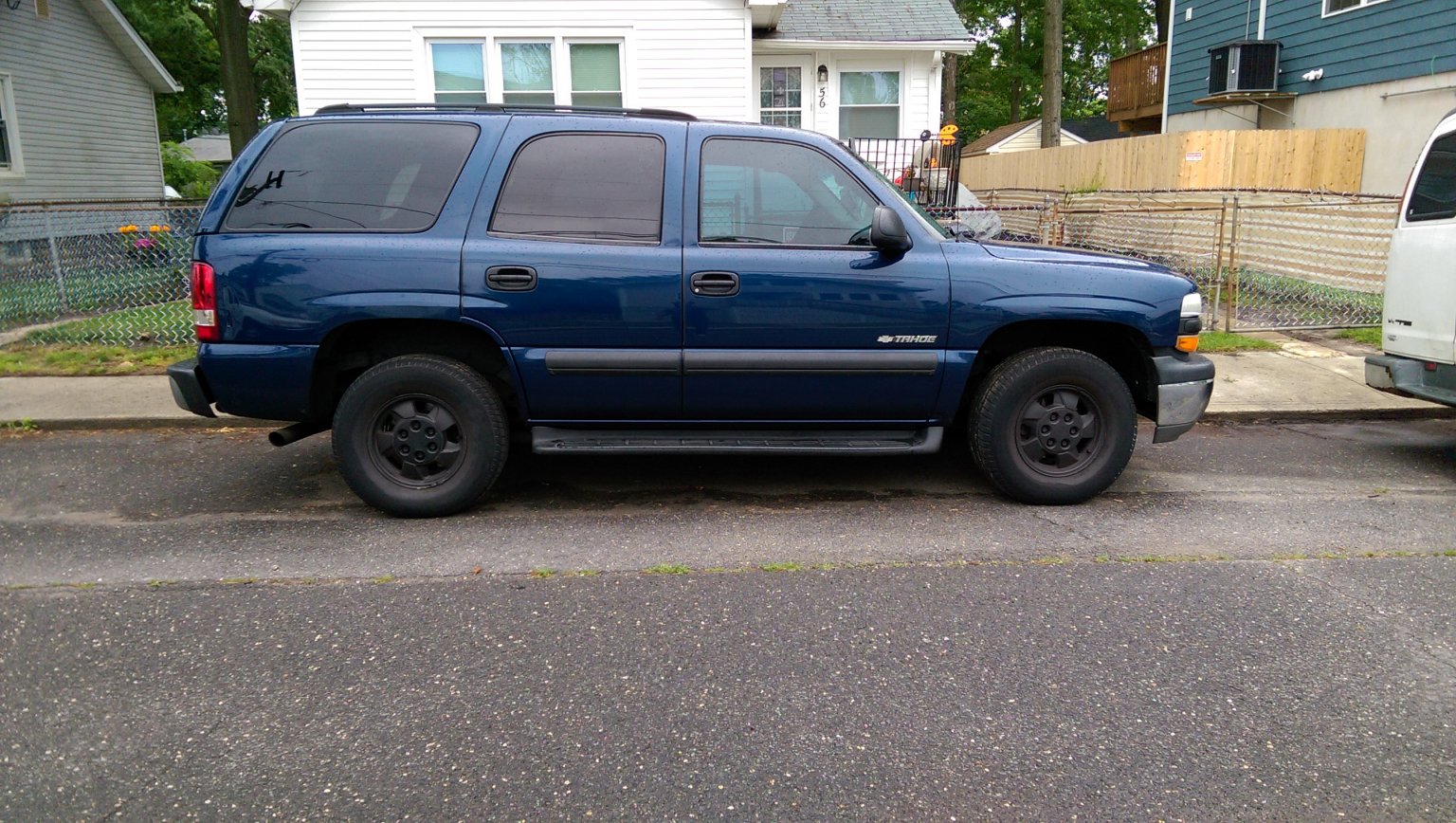

Before:
After:
I haven't got the alignment yet, I want to make sure the keys are exactly where I want them before I do that. Now that my lift is on I can consider tires. I had been thinking about 285/75/16's (I have a set of 16" "cyclone" wheels) but with as much lift as I have now I'm considering maybe even 295's.
