Well I'm still waiting on the engine to come back parts have been hard to find and the machine shop is backed up.

I did however find a 9.5sf 14bolt from a 1990 K1500. This is NOT the common AXN RPO code axle like I have in my Tahoe and what came in NNBS trucks with the 6.2. The AXN axle has smaller outer bearings and a few other things that make it slightly lighter duty than this axle. Plus I didn't want to have to cut all the link brackets off a SUV axle when it will be getting leaf spring perches.

Current build plans:

- Keep the 3.42 gears (Regear my front diff to 3.42s)
- Detroit TrueTrac
- Disk brake swap from someone like https://lugnut4x4.com/product/14-bolt-6-lug-semi-float-disc-brake-conversion-kit/
- Leaf spring perches relocated with a kit like this https://www.ruffstuffspecialties.com/catalog/14BSS.html
- Have my ladder bar axle bracket welded on and possibly a full truss
- Bling bling diff cover with girdle http://www.taperformance.com/proddetail.asp?prod=TA_1803

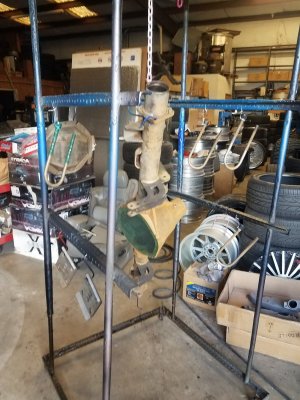

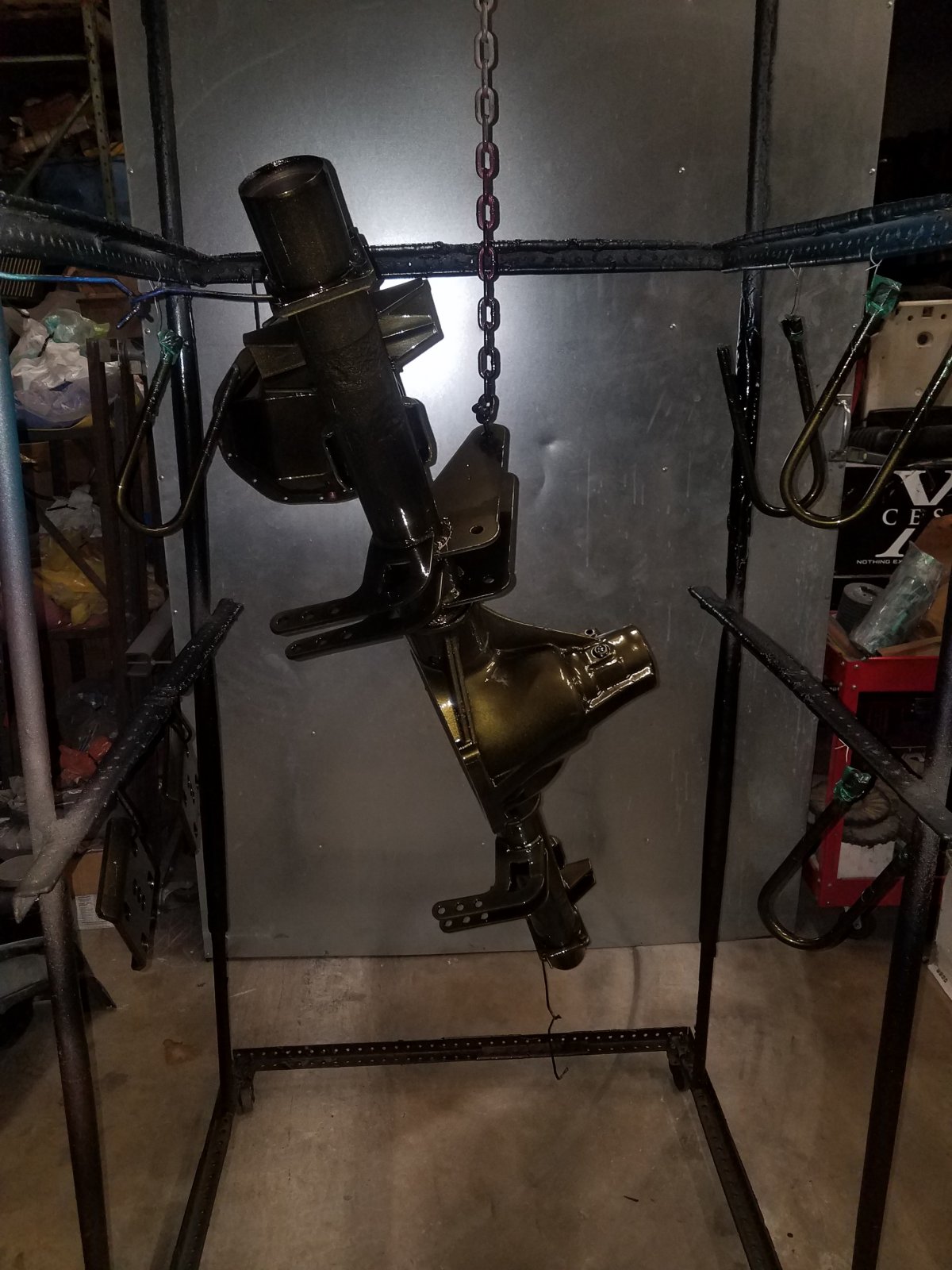

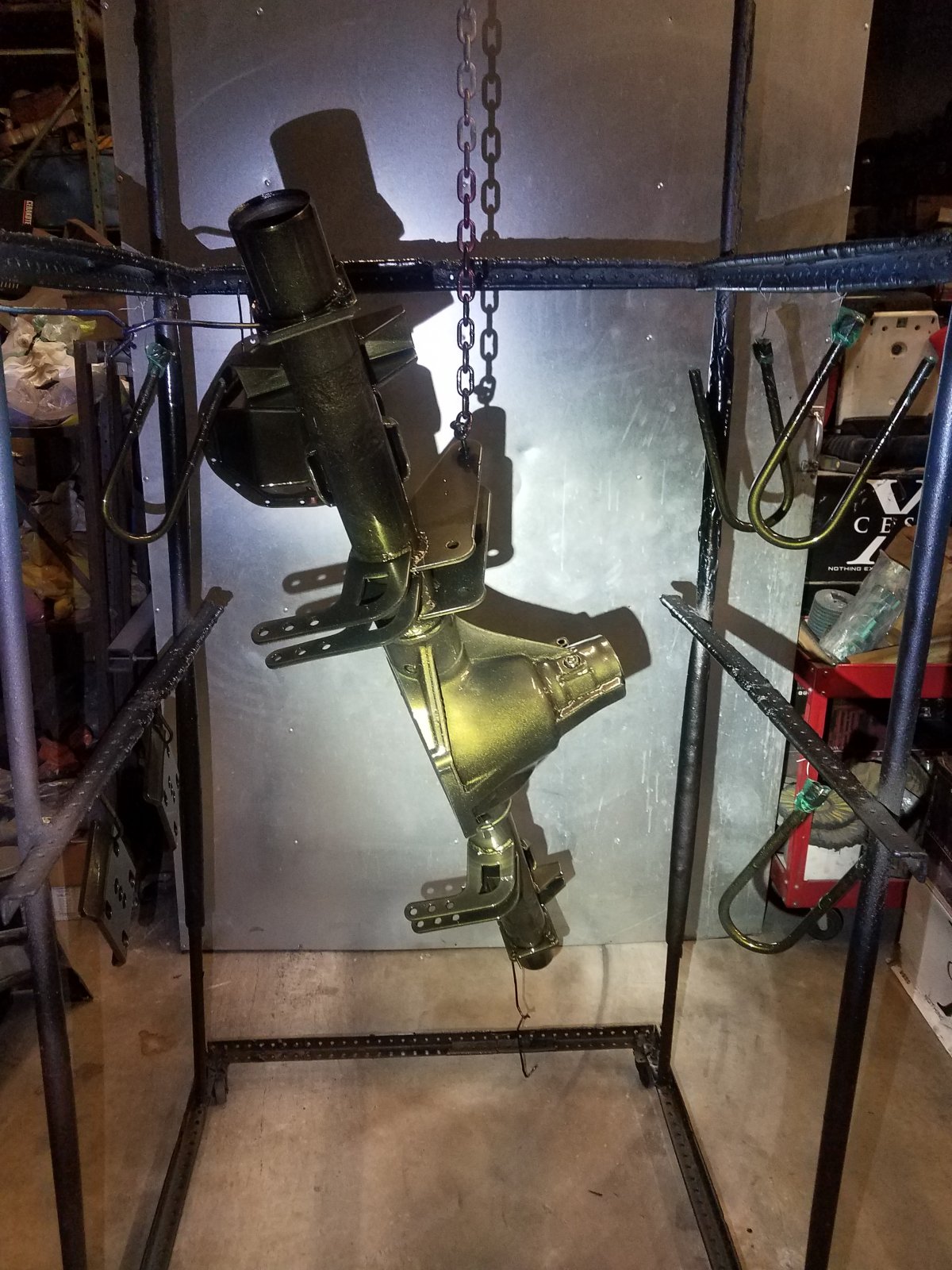

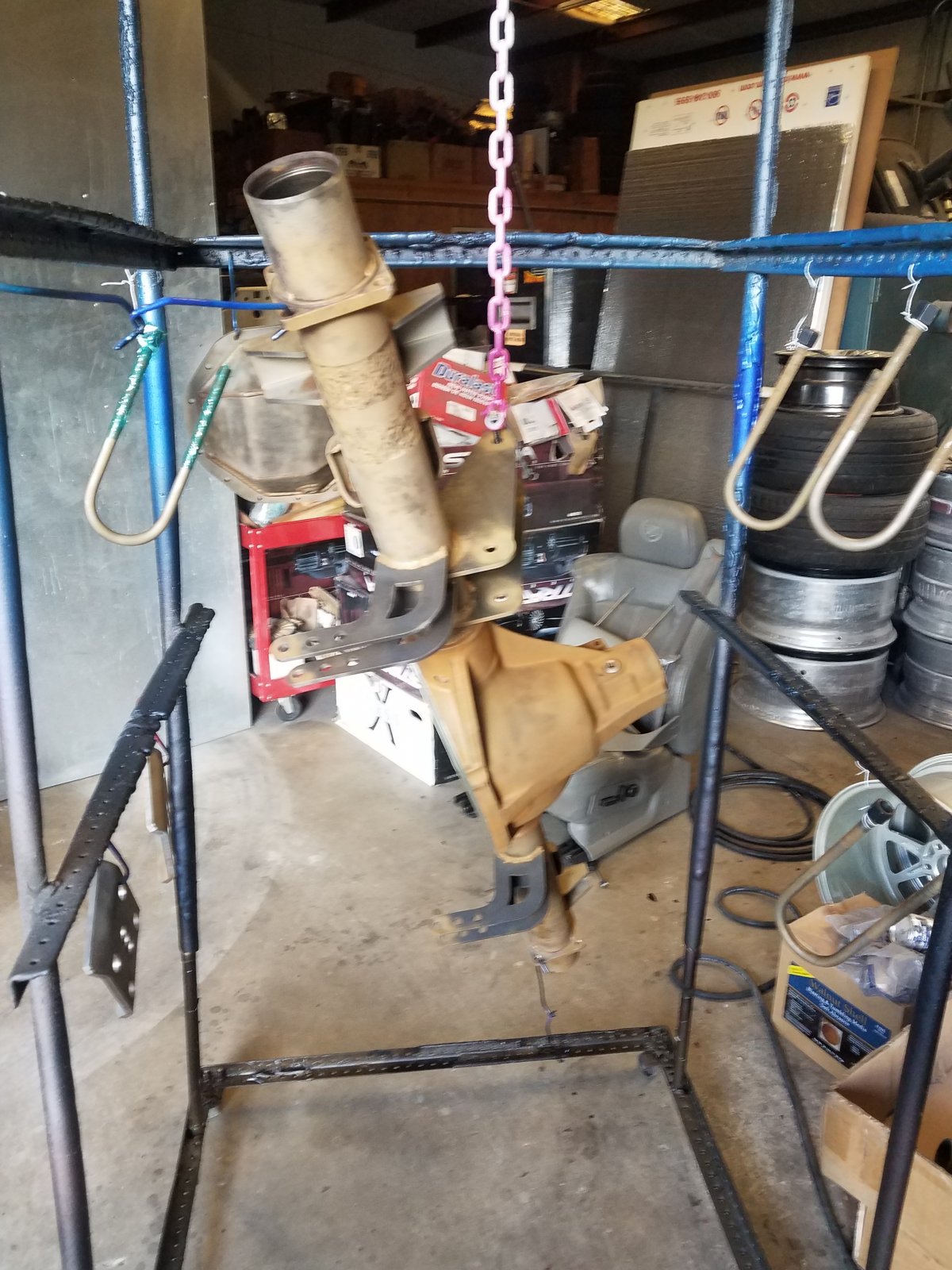

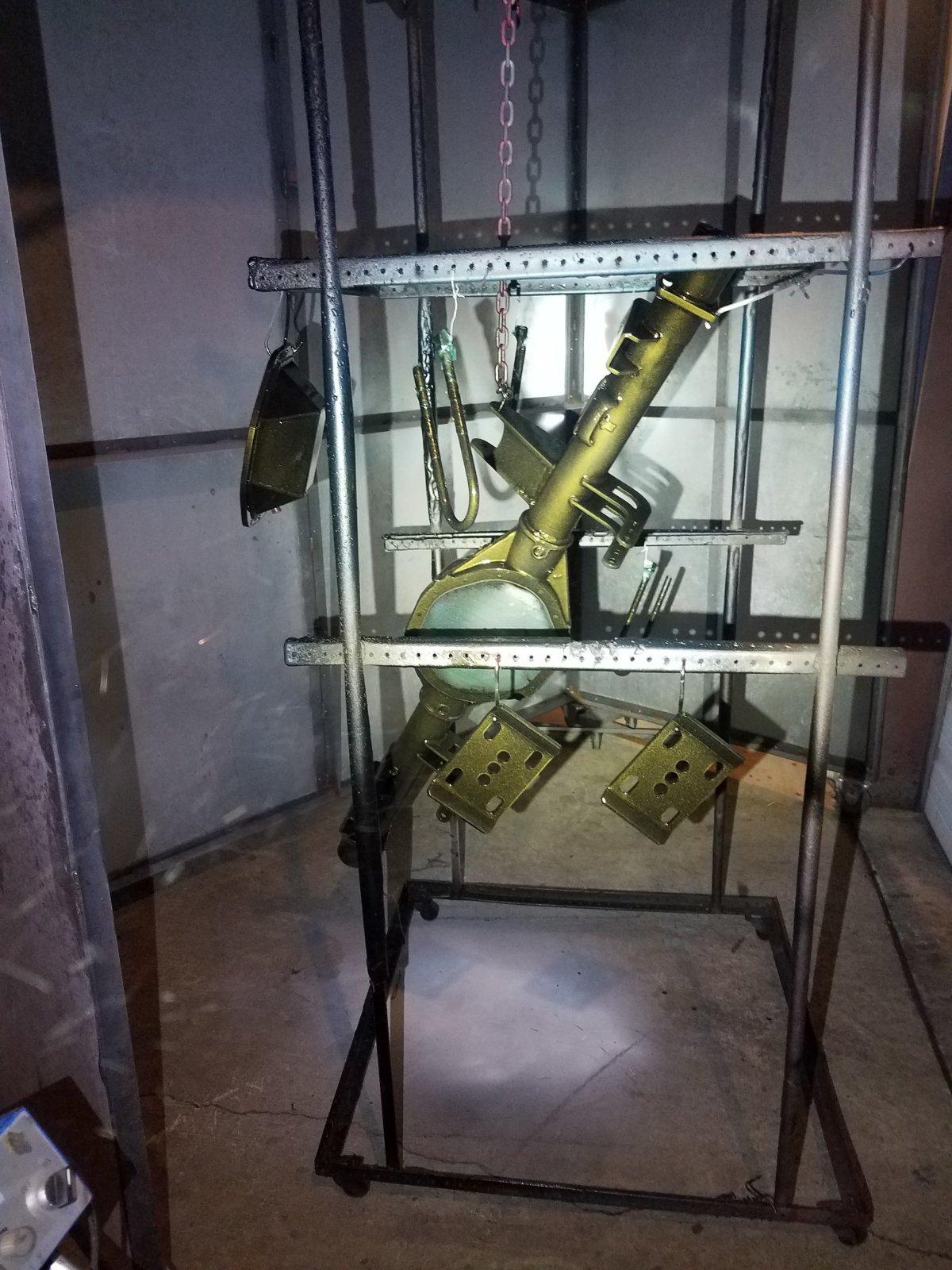

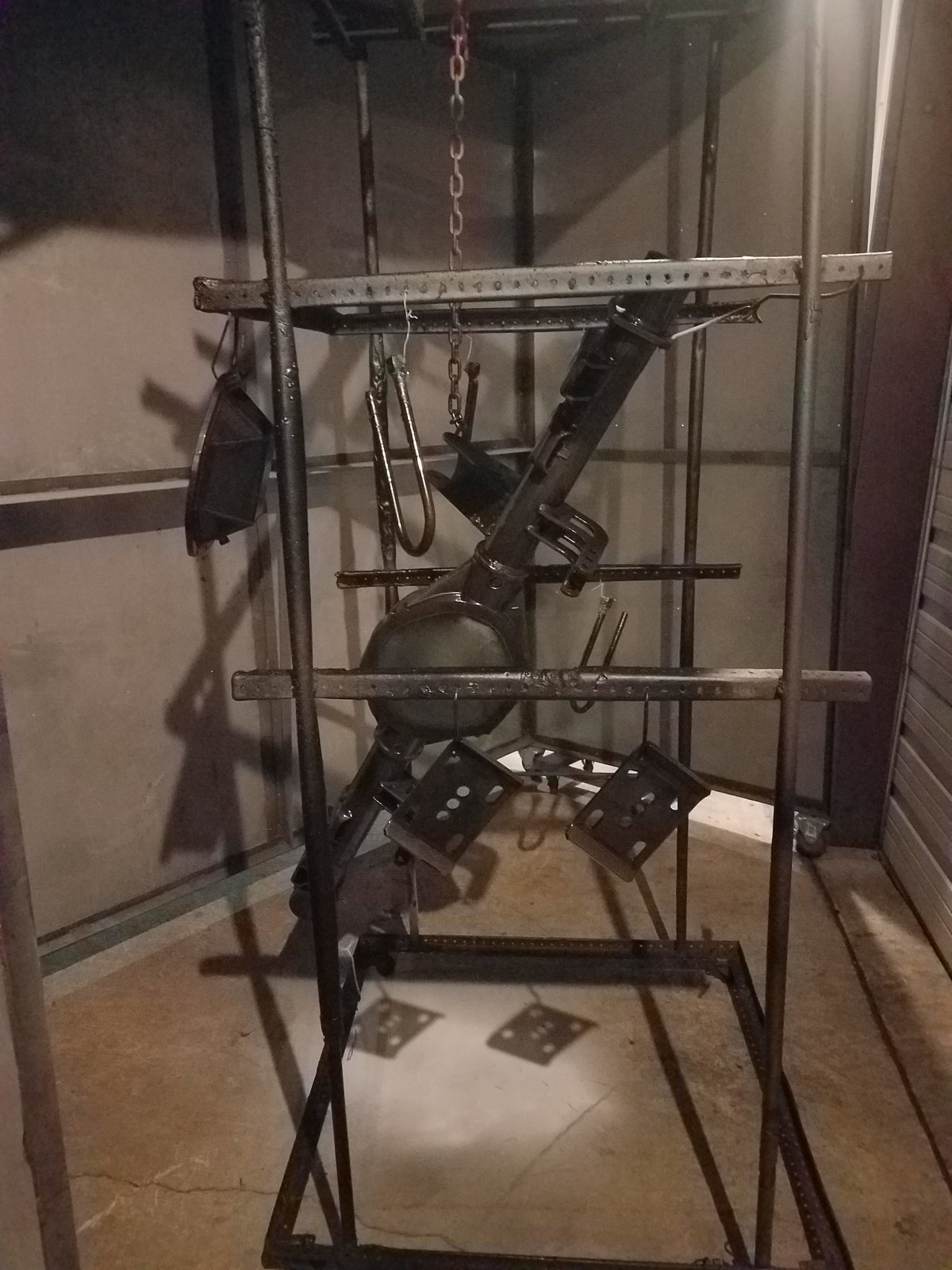

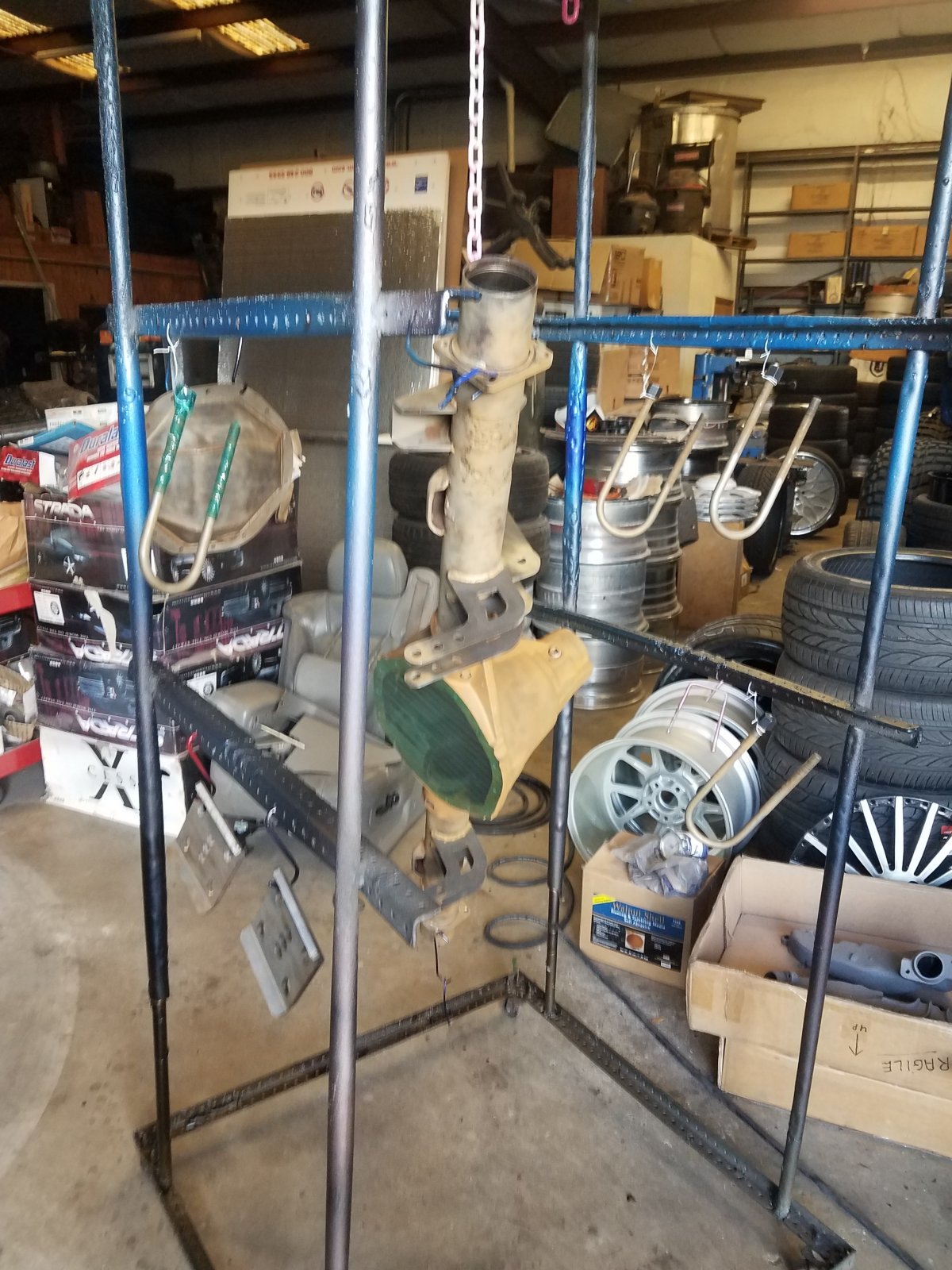

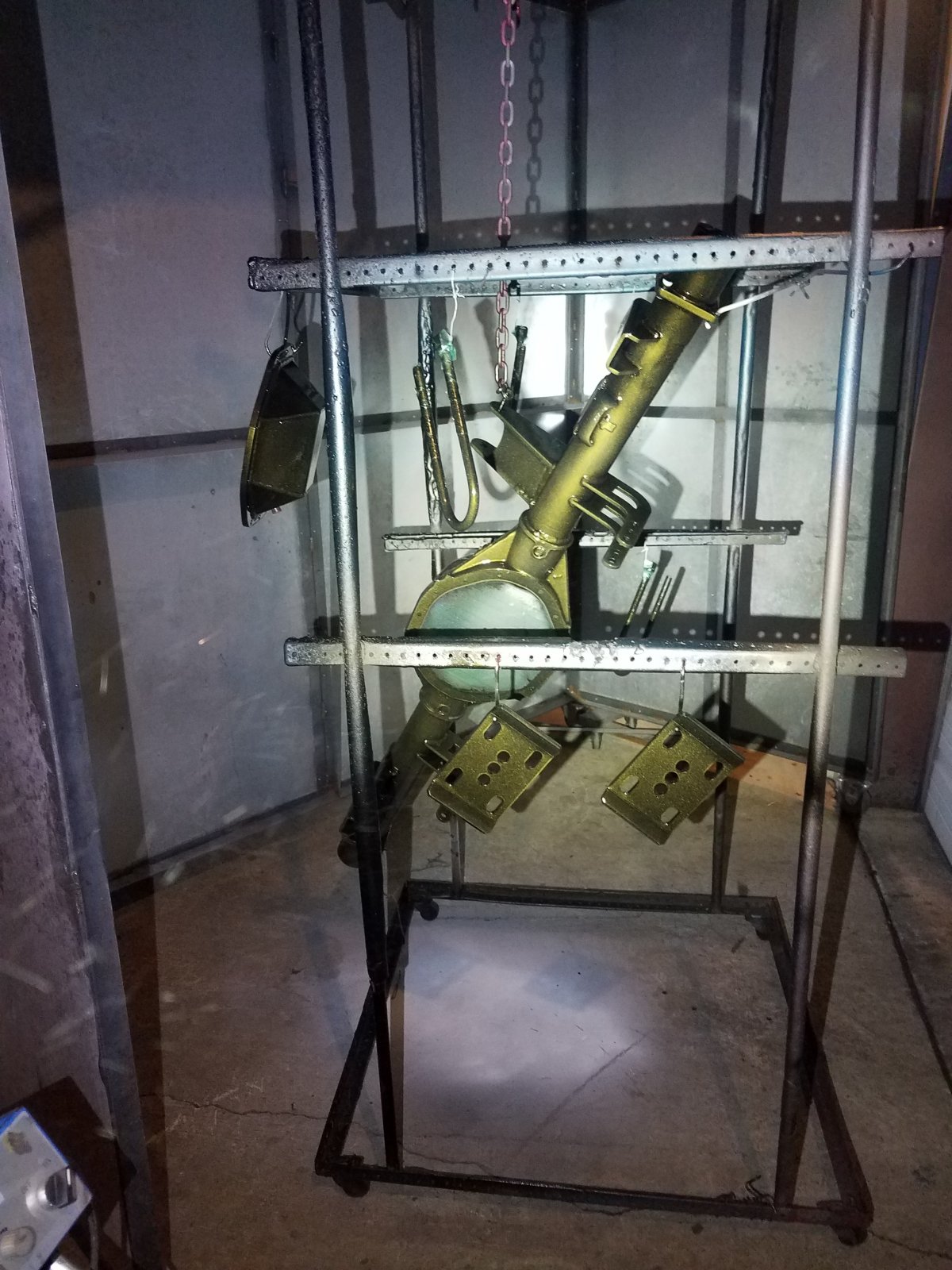

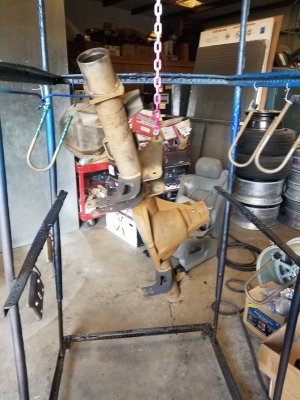

- Paint the axle
- Burnouts!!!!!!

Cost so far:

- Axle: $170

OP
OP
Dantheman1540

Dantheman1540

Full Access Member
Joined
Feb 13, 2020
Posts
4,856
Reaction score
10,503
Location
Sugar Loaf Mountain
OP
OP
Dantheman1540

Dantheman1540

Full Access Member
Joined
Feb 13, 2020
Posts
4,856
Reaction score
10,503
Location
Sugar Loaf Mountain
Tearing stuff down is supposed to be the fun part because it doesn't cost anything.

However had a hiccup pulling the carrier out. Grabbed my 10mm ratchet wrench to remove the pin retaining bolt and the bolt came loose suspiciously easy. Somehow it broke, no idea how but I never put much force on it so it must have been broken before. Thought I'd have to drill the entire thing out but luckily it came loose after about a 1/4" of drilling and I worked it out.

That drama was over and the c clips fell right out which the revealed something interesting on the pinion. I assume this rear end has been messed with before because theres etching on the pinion. No idea what it means but somebody has had their hand in my rear end before. :eek:.

Also beat the drums and crap off it but got tired and quit before getting the brake lines ground off.

And lastly I noticed some odd marks on the spider gears. Looks like cracks were welded and then ground smooth maybe? Idk what do y'all think?20200811_224851.jpg 20200811_222416.jpg 20200811_224952.jpg 20200811_224928.jpg 20200811_204615.jpg
