#1taho
5150TAHO
Is the puddle lights canbus ?
I tried putting in leds in the summer and they didn't work no matter which way I put them, then tried putting in the old ones and still can't get them to work. I am puzzled
Fosscore's 2013 Suburban LTZ Build Thread
- Thread starter Fosscore
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
I tried putting in leds in the summer and they didn't work no matter which way I put them, then tried putting in the old ones and still can't get them to work. I am puzzled
OP
OP
Fosscore
Full Access Member
- Joined
- Apr 16, 2014
- Posts
- 10,502
- Reaction score
- 18,197
@#1taho

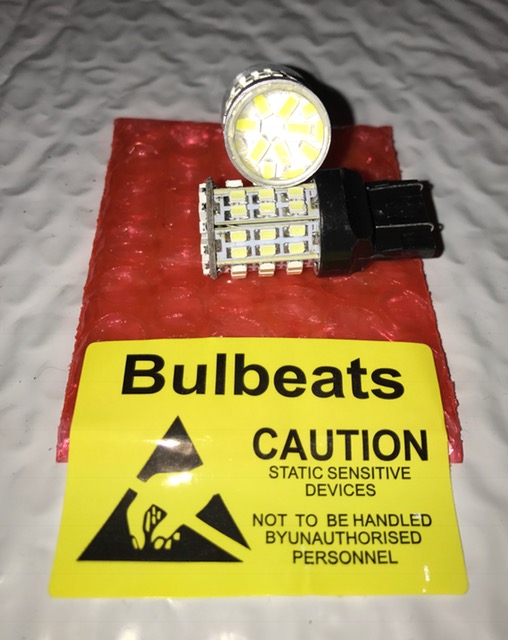

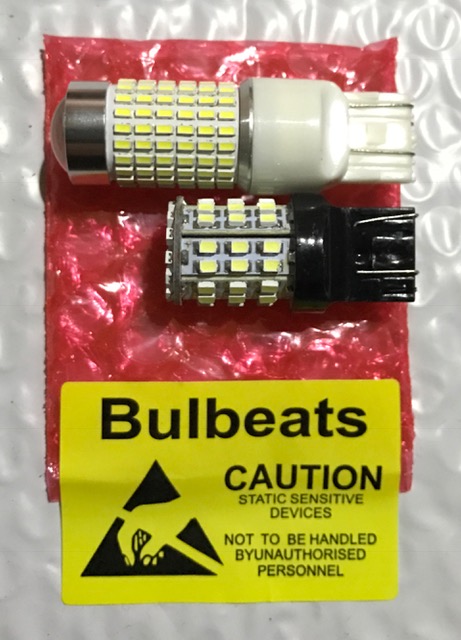

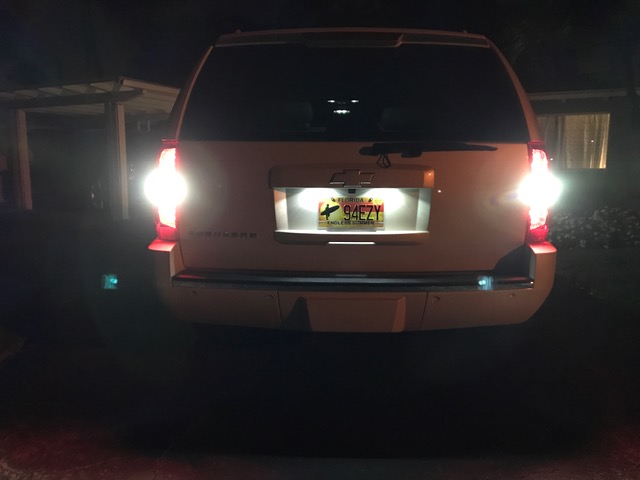

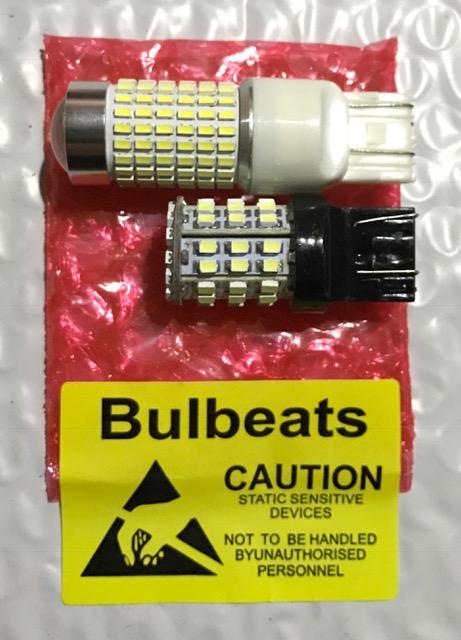

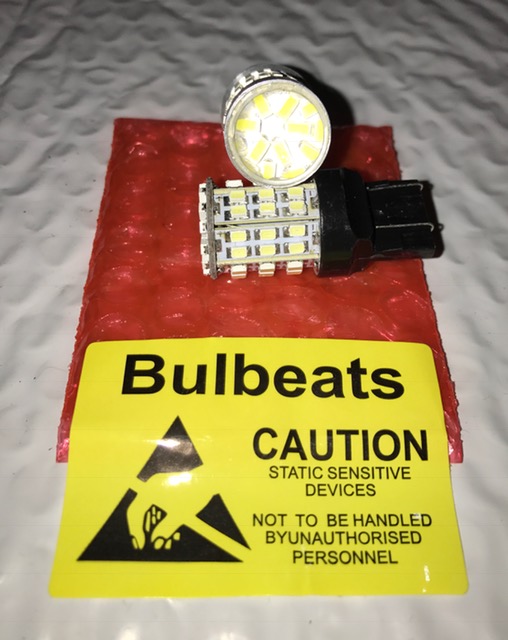

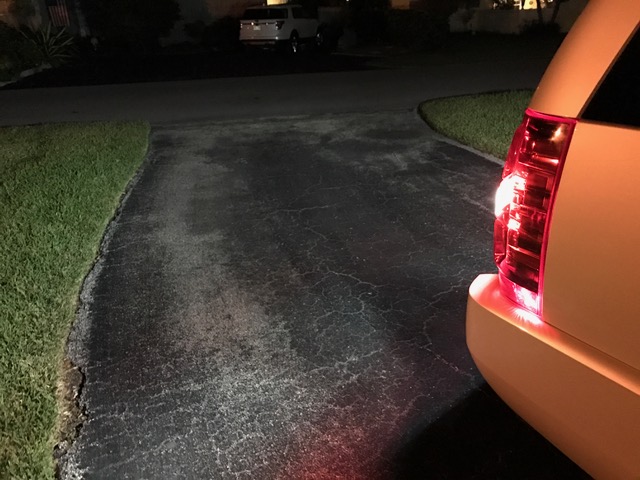

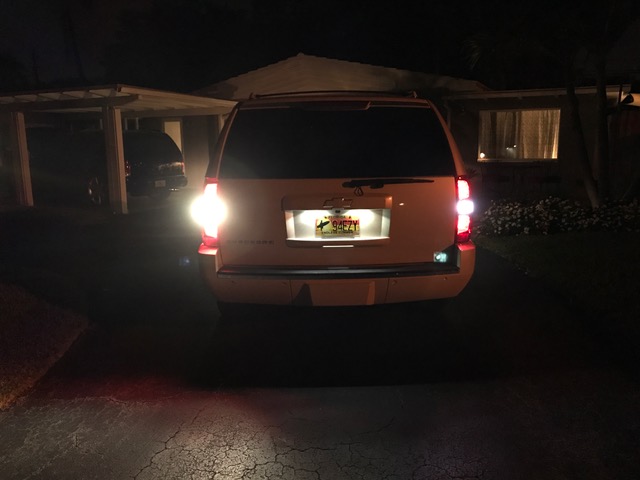

All my LEDs this go around are just eBay specials, non canbus. Unless their is power to the truck, the interior lights (vanity, maps, domes) are very dim (vanity lights actually flicker without the truck turned on) if turned on by local switch or full power if turned on manually by the knob to the left of the steering wheel. The puddles, license plate and reverse lights work properly with just the click of the key fob at any time.
Not sure what to say about your actual question about not working as I've not had a problem in either truck, whether using superbrightleds, eBay or Amazon LEDs.

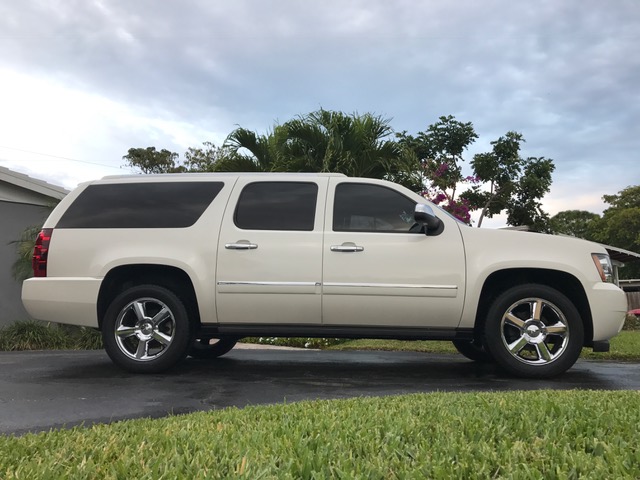

Just noticed your chrome mirror caps, looks clean, mine are painted and have a little dead bug damage it looks like, $100 on ebay for some real chrome ones not the stick on, just thinking out loud but something i may do.
Sent from iPhone 7 plus using Tapatalk Pro
Nice idea! I do like them, like u said tho, cheapest one i found was $200 and that was for one side and would need to get the cap painted black.
Sent from iPhone 7 plus using Tapatalk Pro
OP
OP
Fosscore
Full Access Member
- Joined
- Apr 16, 2014
- Posts
- 10,502
- Reaction score
- 18,197
Just another option, but pricey for sure.
OP
OP
Fosscore
Full Access Member
- Joined
- Apr 16, 2014
- Posts
- 10,502
- Reaction score
- 18,197
GM Chrome Tow Hooks
18000 miles
Put some OEM chrome tow hooks on to fill in those open slots on the front bumper.
I found them brand new on eBay for $50 plus some shipping. These are universal for
07-14 GM SUVs and you will see a few different part numbers such as the following:
Interchange Part Number: 19158571, 19243784, 22858898.
You can see below what comes in the box of parts to compare if you are looking.
The frame is already pre-drilled for installation and mine fit perfectly. The bolts pushed right through with the small bolt threading directly into the hook and the long bolt pushing through the frame and tow hook and secured on the other side of the frame with the nut. I am surprised the LTZ did not come with them at delivery.
Not rocket science to install, but I figured I would put some detail down anyways. It is close quarters under there for tightening the bolts, especially if you have large hands. The drivers side makes it very easy to get both bolts tight with a combination of two 18mm ratchets and/or wrenches. You can reach the secondary nut for the long bolt without too much hassle to the outside of the frame.
The passengers side, however presents an issue as the shorter bolt that threads into the actual tow hook does not have much room to work with. Optimally you need to install the shorter threaded bolt on the passengers side first so that it can be tightened completely first before you install the longer bolt. Otherwise there is no direct access to the short bolt head to give it a good last crank into the tow hook due to the limited space. Had GM drilled it the same as they did with the drivers side, this would not have been an issue.

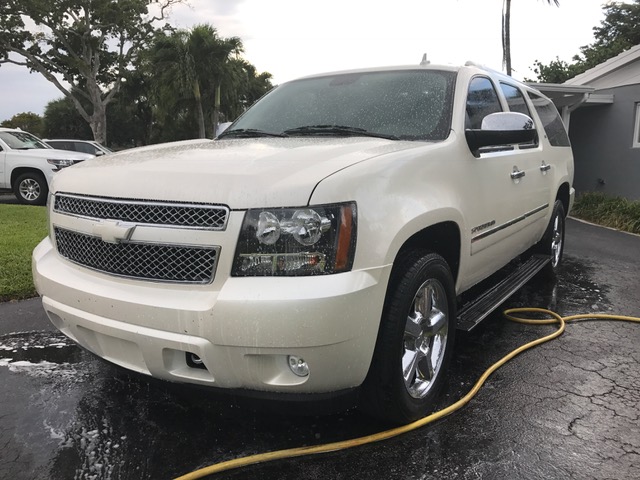

I'm happy with the install as it completed the front end look by filling in those open holes. Too bad that front lower part of the bumper between the tow hooks is not smooth. We don't require front plates in Florida and that would look better without the plate indentation. Just saying.
There is a little bit of surface rust on the ends of the frame which is inevitable as I live near the ocean. The rest of the underbody and gear under there is still coated in the sticky black factory goop and looks like it just came off the dealership lot. Pretty happy with that fact.

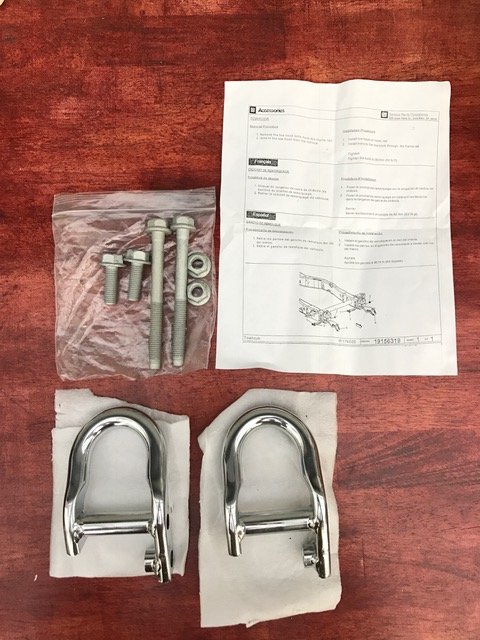

Parts out of the box.

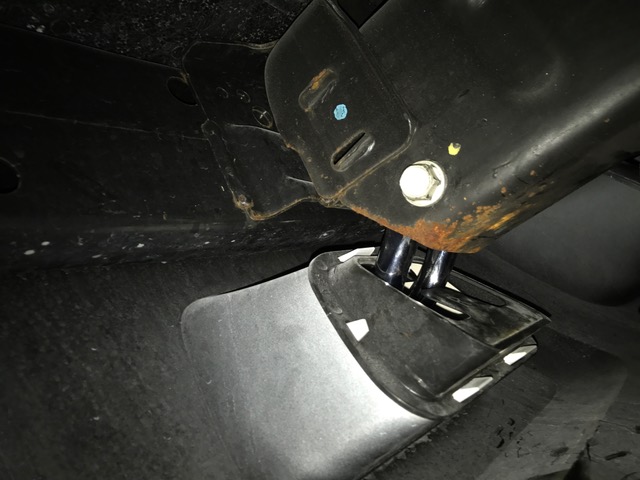

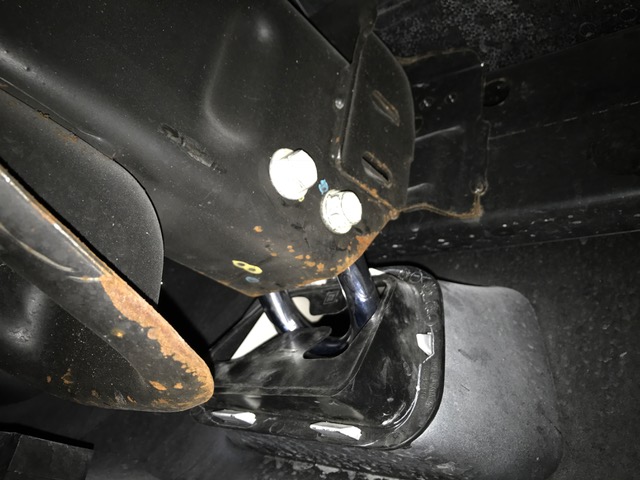

Driver's side installed.
Passenger's side installed.

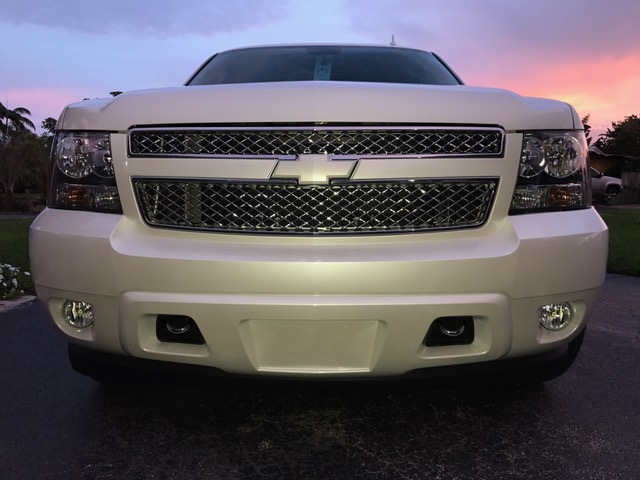

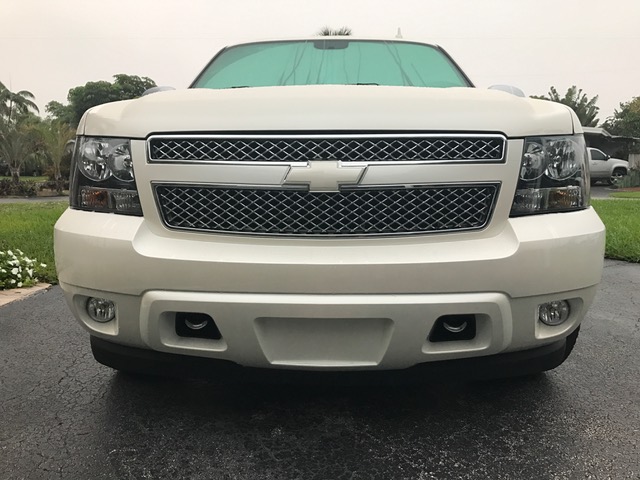

Sunset shot after installation.
Morning shot with more light.
18000 miles
Put some OEM chrome tow hooks on to fill in those open slots on the front bumper.
I found them brand new on eBay for $50 plus some shipping. These are universal for
07-14 GM SUVs and you will see a few different part numbers such as the following:
Interchange Part Number: 19158571, 19243784, 22858898.
You can see below what comes in the box of parts to compare if you are looking.
The frame is already pre-drilled for installation and mine fit perfectly. The bolts pushed right through with the small bolt threading directly into the hook and the long bolt pushing through the frame and tow hook and secured on the other side of the frame with the nut. I am surprised the LTZ did not come with them at delivery.
Not rocket science to install, but I figured I would put some detail down anyways. It is close quarters under there for tightening the bolts, especially if you have large hands. The drivers side makes it very easy to get both bolts tight with a combination of two 18mm ratchets and/or wrenches. You can reach the secondary nut for the long bolt without too much hassle to the outside of the frame.
The passengers side, however presents an issue as the shorter bolt that threads into the actual tow hook does not have much room to work with. Optimally you need to install the shorter threaded bolt on the passengers side first so that it can be tightened completely first before you install the longer bolt. Otherwise there is no direct access to the short bolt head to give it a good last crank into the tow hook due to the limited space. Had GM drilled it the same as they did with the drivers side, this would not have been an issue.
I'm happy with the install as it completed the front end look by filling in those open holes. Too bad that front lower part of the bumper between the tow hooks is not smooth. We don't require front plates in Florida and that would look better without the plate indentation. Just saying.
There is a little bit of surface rust on the ends of the frame which is inevitable as I live near the ocean. The rest of the underbody and gear under there is still coated in the sticky black factory goop and looks like it just came off the dealership lot. Pretty happy with that fact.
Parts out of the box.
Driver's side installed.
Passenger's side installed.
Sunset shot after installation.
Morning shot with more light.
Last edited:
05Single
afraid of the dark
- Joined
- Feb 26, 2015
- Posts
- 8,186
- Reaction score
- 11,456
Love your attention to those little details.
Filled those holes nicely and not a bad price either
Filled those holes nicely and not a bad price either
- Joined
- Jan 3, 2011
- Posts
- 50,268
- Reaction score
- 16,827
nice
after some prodding from @NathanJax I did the same thing about a year ago. If not for his I would have never bothered with it probably but is a nice little detail to complete the front end
after some prodding from @NathanJax I did the same thing about a year ago. If not for his I would have never bothered with it probably but is a nice little detail to complete the front end Similar threads
